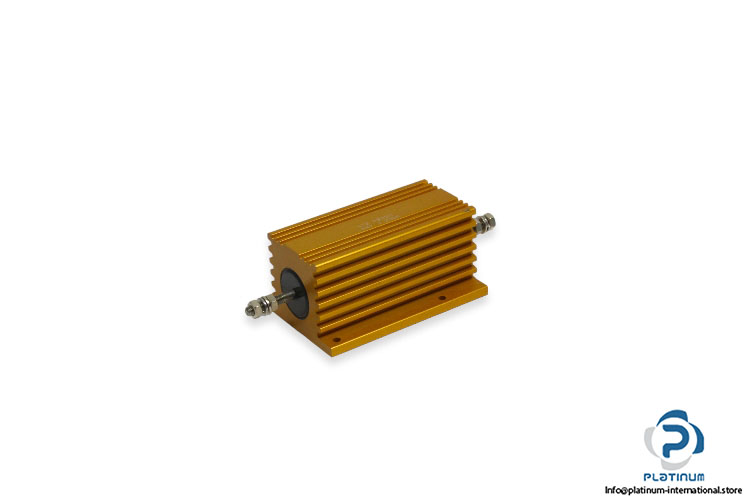

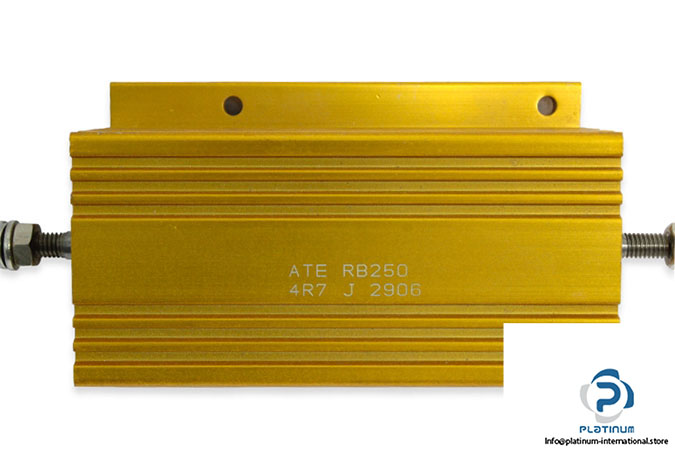

ATE RB250 Fixed Power Resistors

Manufacturer: ATE

Type: Fixed Power Resistor

Model: RB250

Part No.: 4R7 J 2906

Voltage: 2300 V

Rated power: 250 W

Max power no heatsink: 100 W

Resistance range: 0.1 … 120 KΩ

Temp. rise with heatsink: 0.66 °C/W

Housing material: Aluminum with hard anodic finish

Terminal: Stainless steel

Dimensions: 76 x 178 x 55.6 mm
