Atlas 9032010012-0007 Digital Motion Controller
Used
In stock1 unitReady to ship
Atlas Copco / F.E.R.A.G Digital Motion Controller DMC 51540P with 7.4 kW continuous output power, 15 A continuous current, and a speed range of 1 to 9000 RPM. Designed for reliable motor control in industrial environments.
1203440051540P5707.49000ACAtlasContinuousControlControllerCopcoCurrentdcDegreeDigitalDmcF.e.r.a.gFrequencyIndustrialInputIPkHzkWMotionmotorOutputPeakPhasePowerProtectionRangerpmSpeedSwitchingtoV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

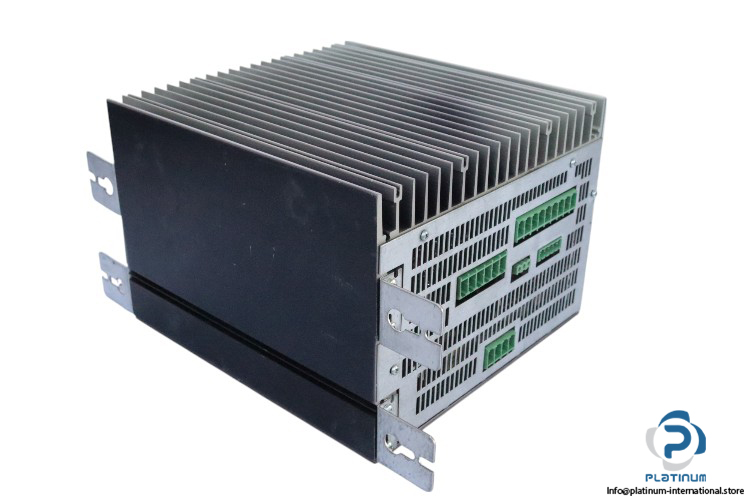

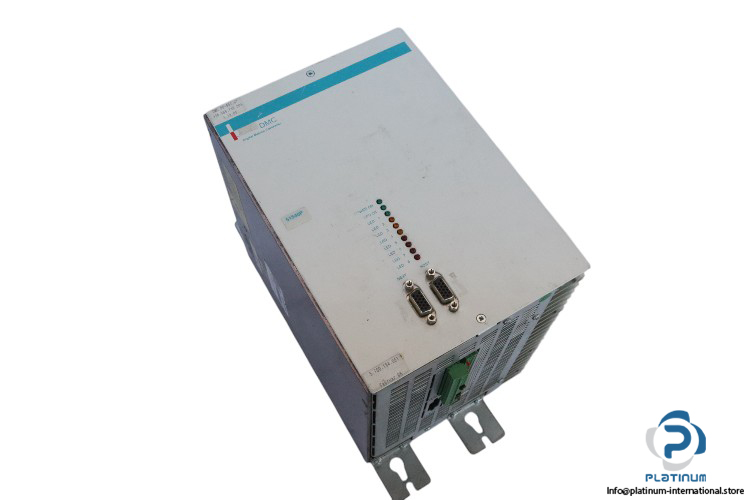

Atlas Copco / F.E.R.A.G Digital Motion Controller DMC 51540P
Atlas Copco / F.E.R.A.G Digital Motion Controller DMC 51540P is a high-performance digital motion controller designed for precision control in industrial automation applications. With a wide range of features including high continuous power, high current ratings, and protection capabilities, it is ideal for controlling motors in various machinery. Below are the technical specifications:
- Manufacturer: Atlas Copco / F.E.R.A.G
- Type: Digital Motion Controller (DMC)
- Model: DMC 51540P

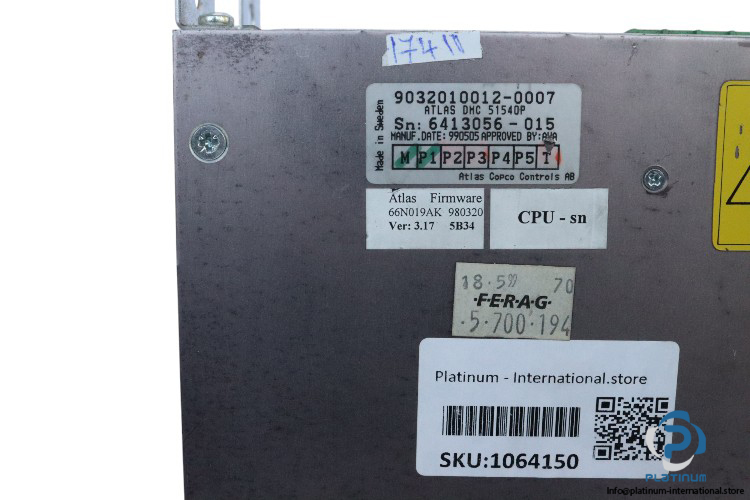

- Part No. 1: 9032 0100 12-0007

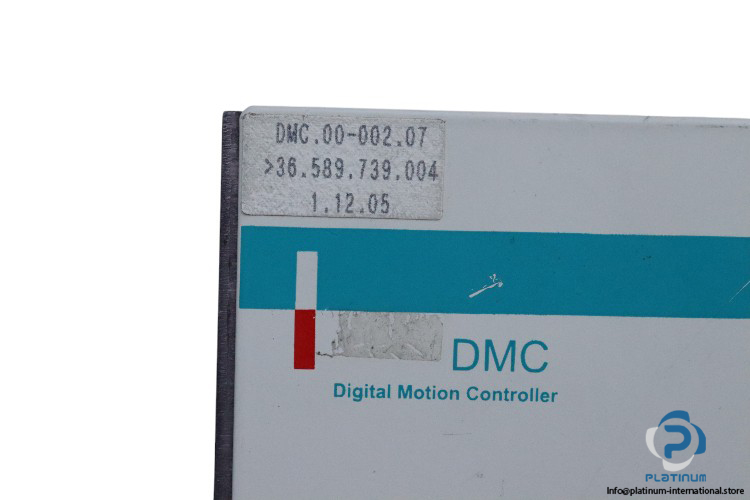

- Part No. 2: DMC.00-002.07
- Part No. 3: 36.589.739.004
Technical Data:
- Input Voltage: 3 phase/ 400 V AC
- DC Bus Voltage: 570 V DC
- Shunt Regulation On: 675 to 700 V DC
- Shut Down DC Bus Voltage: 700 to 725 V DC
- Continuous Current (A DC): 15 A at 40°C
- Continuous Current (Arms): 10.5 A at 40°C
- Peak Current: 40 A
- Power Loss: 155 W
- Continuous Output Power: 7.4 kW at 40°C
- Min Motor Inductance: 6 mH
- Speed Range: 1 to 9000 RPM
- Time Delay Fuse Rating: 10 to 16 A
- Circuit Breaker Rating: 10 to 16 A
- Switching Frequency: 4 kHz
- Ambient Temperature: 0 to 60°C
- Protection Degree: IP 20
- Dimensions: 234 x 160 x 227 mm
