Atlas Copco C41M-50-20-50 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
ATLAS COPCO C41M-50-20-50 ISO Cylinder is a high-performance pneumatic actuator designed for compressed air applications. With a 50 mm bore, 50 mm stroke, and double-acting operation, it ensures reliable motion control. The square-shaped frame and male piston rod end provide durability and precision for industrial use.1/450mmActuatorAirAtlasboreC41M-50-20-50CompressedconnectionControlCopcoCylinderdouble-actingENframeGhigh-precisionIndustrialISOmaleMotionPistonPneumaticRODSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

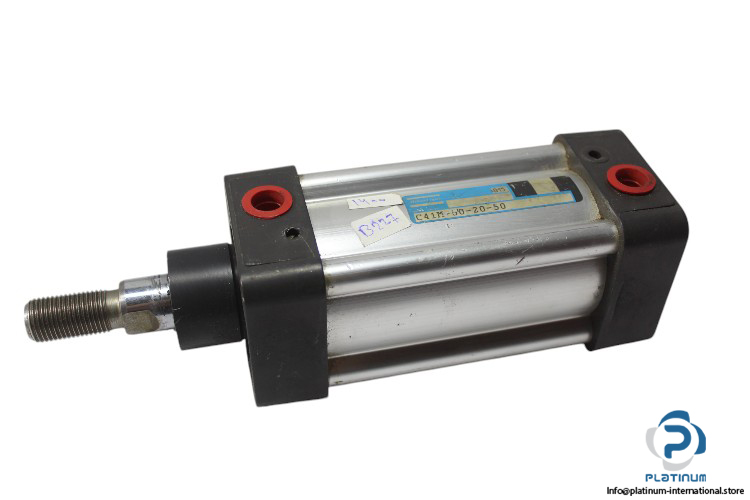

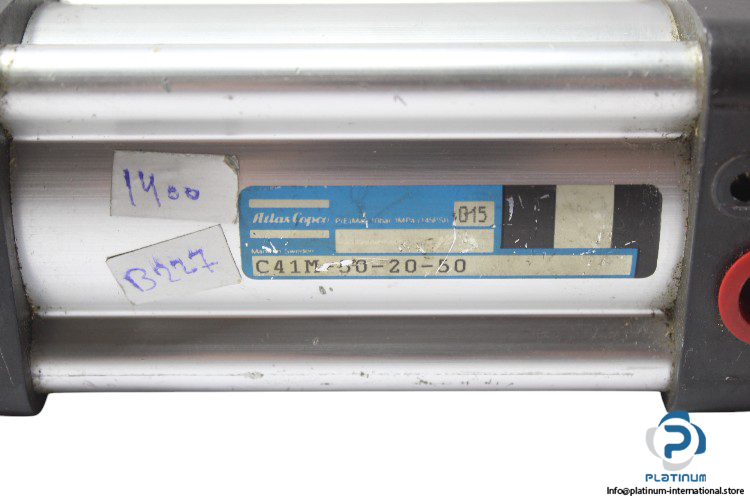

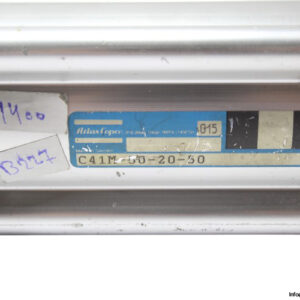

ATLAS COPCO C41M-50-20-50 ISO Cylinder
The ATLAS COPCO C41M-50-20-50 ISO Cylinder is a high-precision pneumatic actuator designed for efficient and reliable industrial applications. With a square frame and a double-acting operation, it provides smooth and consistent motion control in compressed air systems.
Manufacturer: ATLAS COPCO
Type: ISO Cylinder
Model: C41M-50-20-50
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 50 mm |
| Bore x Stroke | 50 x 50 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 65 x 180 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
