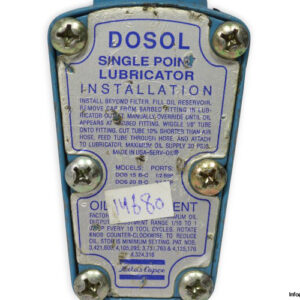

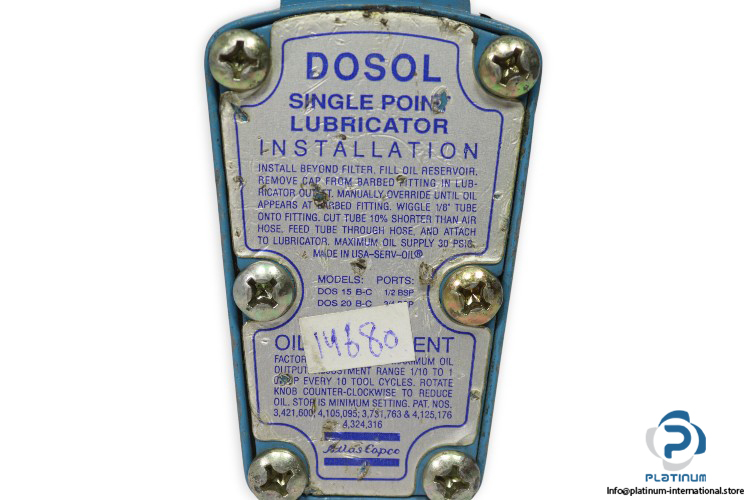

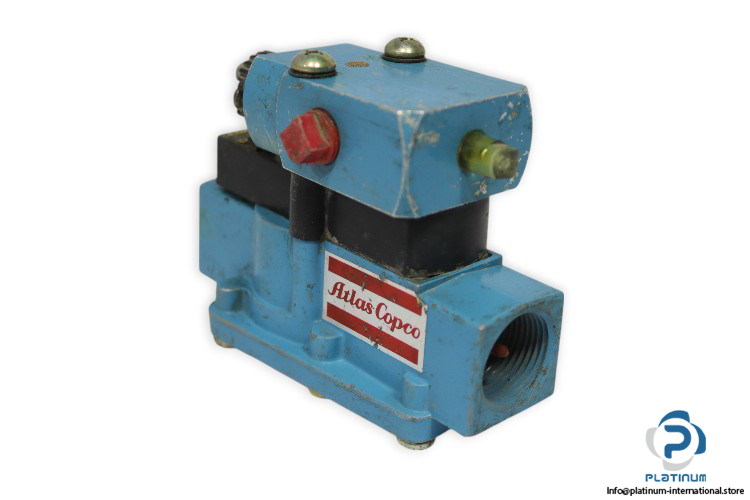

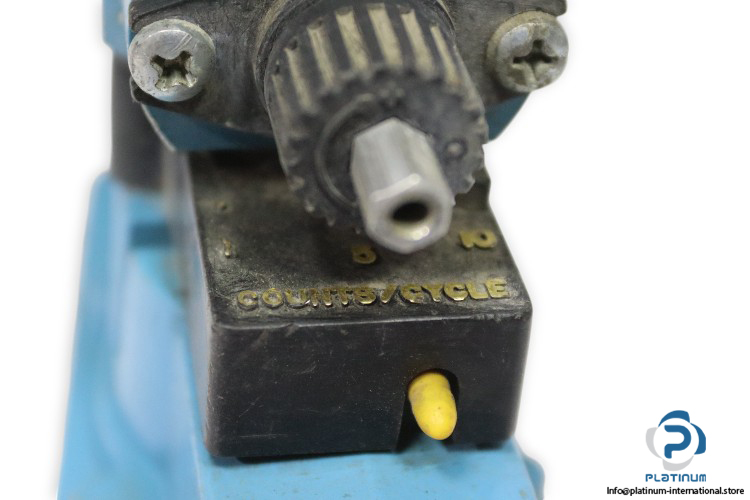

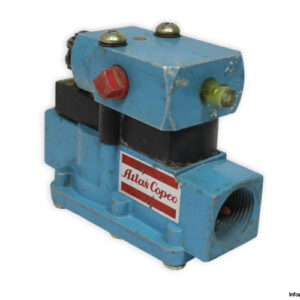

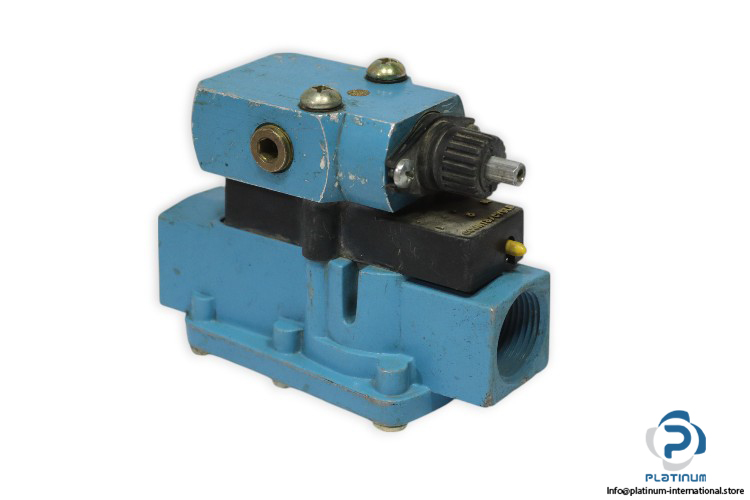

Atlas Copco DOS 20 B -C Single-Point Lubricator

ATLAS COPCO DOS20B-C SINGLE-POINT LUBRICATOR

Designed to optimize lubrication in compressed-air systems, the DOS20B-C ensures consistent performance with minimal pressure drop and easy installation.

Manufacturer: Atlas Copco
Type: Single-point Lubricator
Main Model: DOS20B-C
Model Variants: DOD 15 B-C (1/2 BSP), DOD 20 B-C (3/4 BSP)

Product Features

• Simple & Quick Installation with Modular Design
• High Efficiency for Consistent Lubrication
• Optimized Air Tool Performance and Extended Service Life
• Compact Form Factor with Low Pressure Drop

Technical Specifications

• Designed For: Compressed-air Systems
• Connection: G3/4
• Air Flow Range: 2.3 to 53 l/s (140 to 3,180 l/min)
• Operating Pressure: 3.2 to 10 bar
• Temperature Range: -30 to +60°C
