Atos 951280 DLHZO-T-040-L51 POS.5 Servo Proportional Directional Valve
Used
In stock1 unitReady to ship
899,99$
SERVO PROPORTIONAL DIRECTIONAL VALVE
Closed-loop valve by Atos/Schiavi with linear spool design, 350 bar pressure rating, and 50 l/min flow rate. Includes ATOS solenoid coil for high-precision hydraulic control in demanding industrial systems.0Z0T-2011001235050951280AtosbarClosedcoilDirectionalDLHZO-T-040-L51FHydraulicIndustriall/minLinearLoopProportionalSchiaviServosolenoidspoolValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

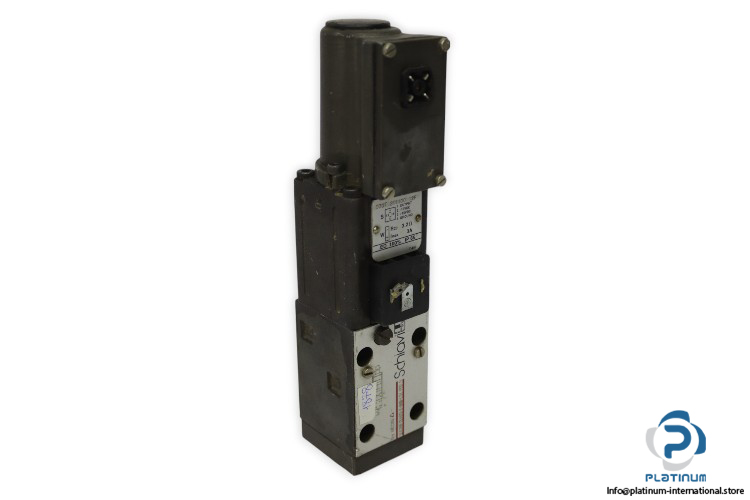

ATOS/SCHIAVI 951280 DLHZO-T-040-L51 SERVO PROPORTIONAL DIRECTIONAL VALVE
This high-performance closed-loop servo proportional directional valve by Atos/Schiavi is designed for precision hydraulic control in demanding industrial applications. Featuring a linear spool type, robust build, and wide operating ranges, it ensures accurate fluid control under varying load and flow conditions. The unit comes equipped with an ATOS 0Z0T-201100 12 F solenoid coil for enhanced actuation response.
Manufacturer: Atos/Schiavi
Type: Servo Proportional Directional Valve (Closed-Loop)

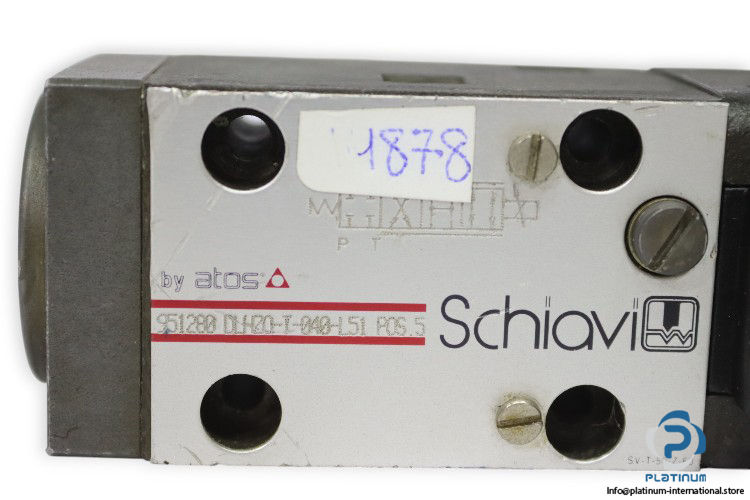

Model: 951280 DLHZO-T-040-L51 POS.5
| Size | 06 |
| Spool Type | L, linear |
| Ambient Temperature Range | -20 to +60°C |
| Max. Operating Pressure (Ports P, A, B) | 350 bar |
| Max. Operating Pressure (Port T) | 210 bar |
| Max. Flow Rate | 50 l/min |
| Hydraulic Fluid Temperature Range | -20 to +60°C |
| Viscosity Range | 20 to 100 mm²/s |
| Max. Power | 50 W |
| Connection | Sup-plate |

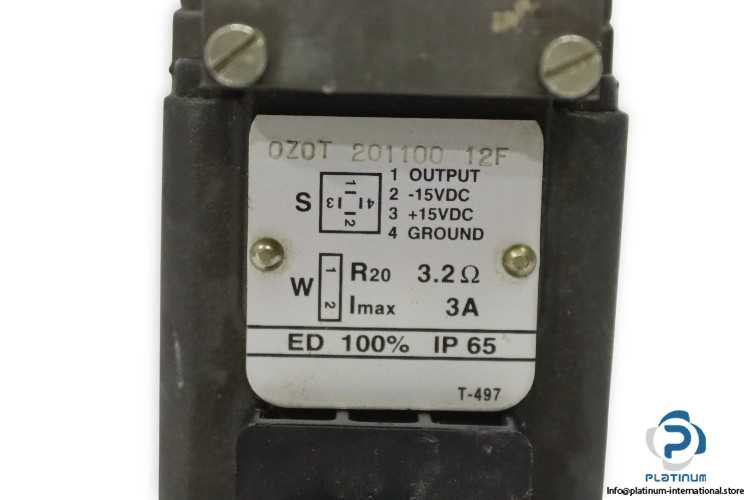

| Attached Component Solenoid Coil | ATOS 0Z0T-201100 12 F |
| Coil Resistance (R at 20°C) | 3.2 „¦ |
| Voltage/Current | 15 V DC / 3 A |
| IP Rating / Duty | IP65 / ED 100% |
