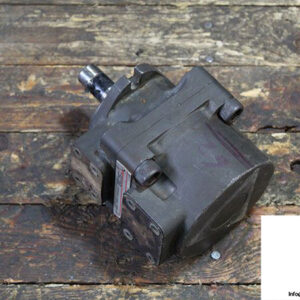

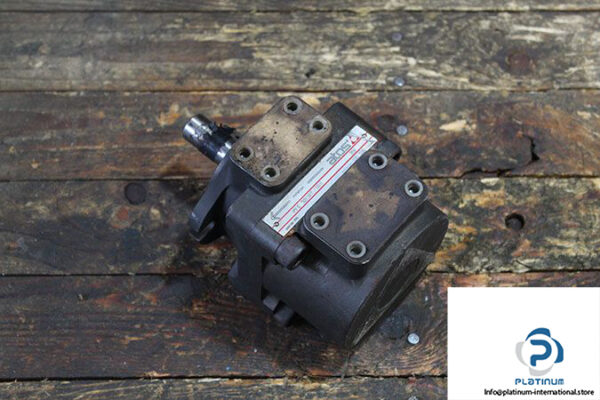

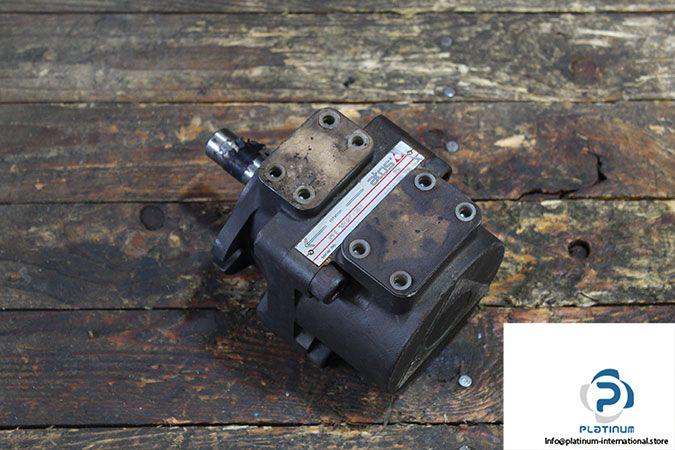

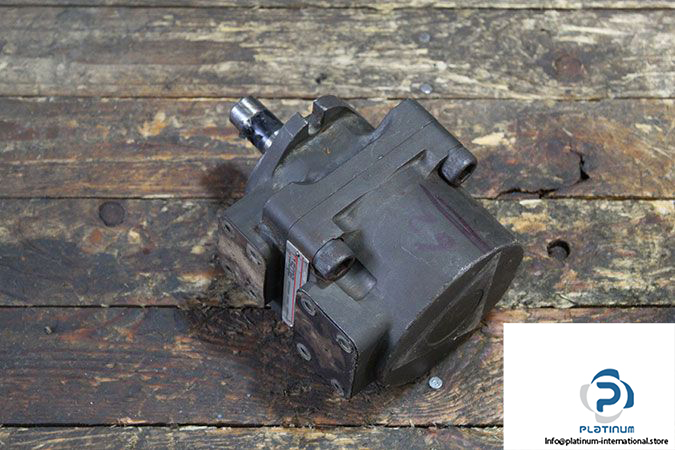

Atos PFE 32022/3DT Fixed Displacement Vane Pump

Manufacturer: Atos

Type: Fixed Displacement Vane Pump

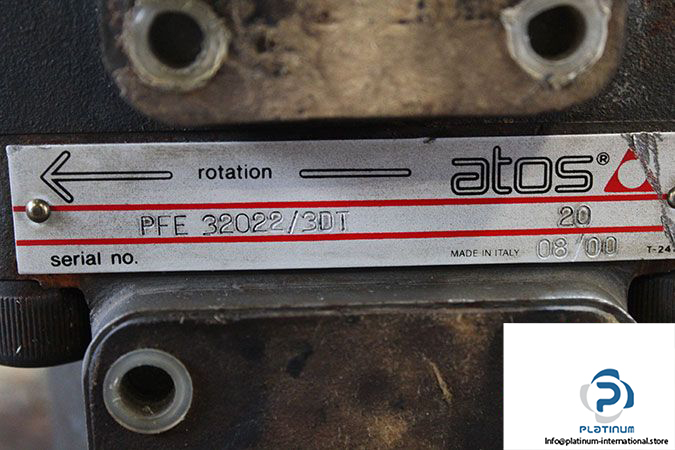

Model: PFE32022/3DT

Size: 32

Displacement: 21.6 cm³

Operating Pressure: 300 bar

Torque Maximum: 130 Nm

Direction of rotation: Clockwise

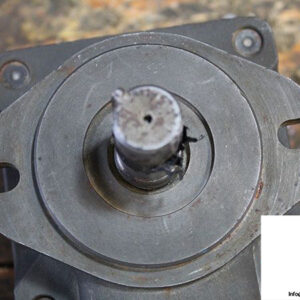

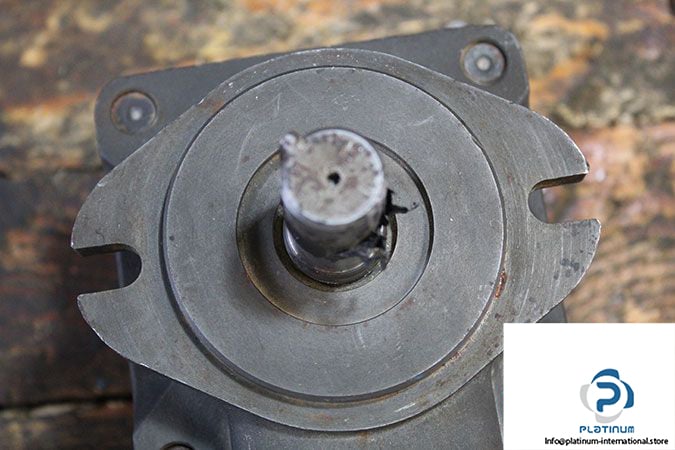

Shaft Diameter: 22 mm

Discharge flow:

Flow Rate at 1450 rpm & 7 bar: 30 l/m

Flow Rate at 1450 rpm & 140 bar: 26 l/m

Flow Rate at 1450 rpm & max. pressure: 20 l/m

Power Consumption:

Flow Rate at 1450 rpm & 7 bar (30 l/m): 0.6 KW

Flow Rate at 1450 rpm & 140 bar (26 l/m): 7 KW

Flow Rate at 1450 rpm & max. pressure (20 l/m): 14 KW

Speed Range: 1200 … 2500 rpm

Viscosity Range: 24 mm²/s During Operation

weight: 9.5 Kg
