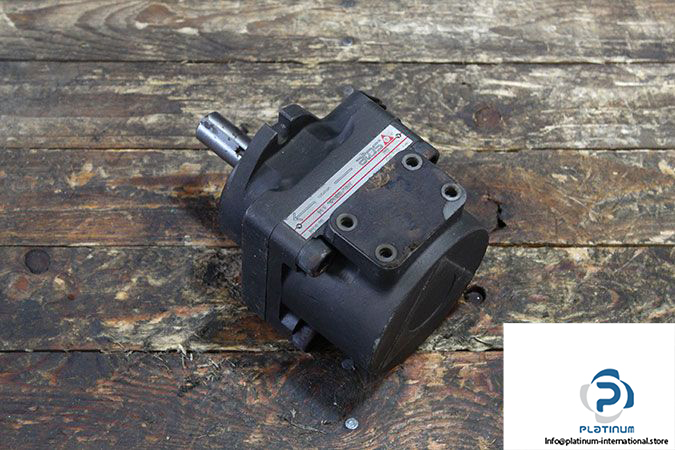

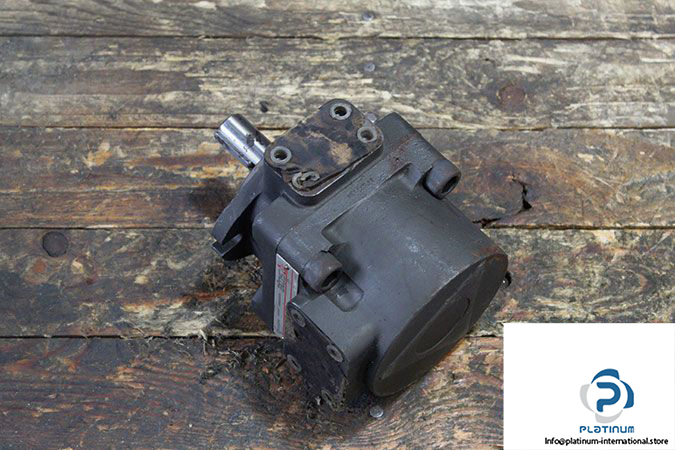

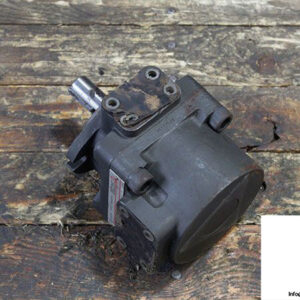

Atos PFE 32028/3DT Fixed Displacement Vane Pump

Manufacturer: Atos

Type: Fixed Displacement Vane Pump

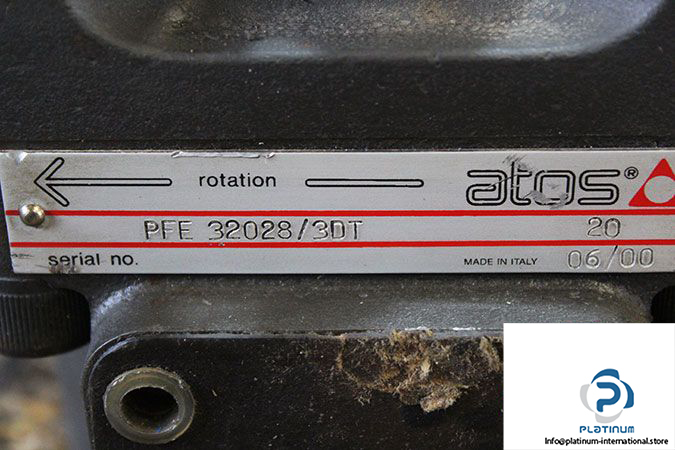

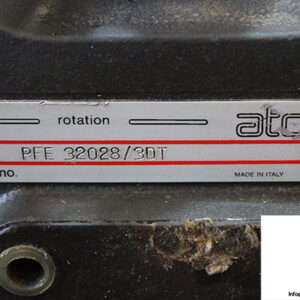

Model: PFE32028/3DT

Size: 32

Displacement: 28.1 cm³

Operating Pressure: 300 bar

Torque Maximum: 130 Nm

Direction of rotation: Clockwise

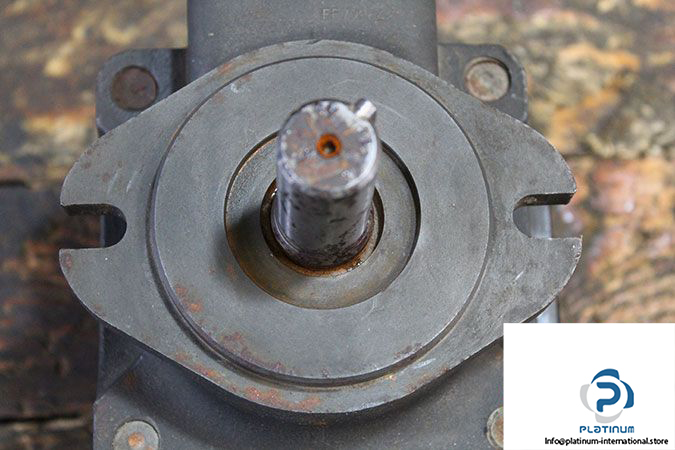

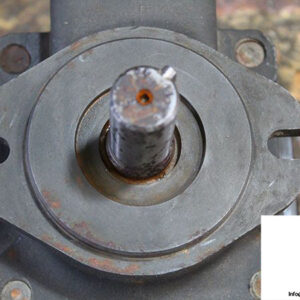

Shaft Diameter: 22 mm

Discharge flow:

Flow Rate at 1450 rpm & 7 bar: 40 l/m

Flow Rate at 1450 rpm & 140 bar: 36 l/m

Flow Rate at 1450 rpm & max. pressure: 30 l/m

Power Consumption:

Flow Rate at 1450 rpm & 7 bar (40 l/m): 0.8 KW

Flow Rate at 1450 rpm & 140 bar (36 l/m): 10 KW

Flow Rate at 1450 rpm & max. pressure (30 l/m): 20 KW

Speed Range: 1200 … 2500 rpm

Viscosity Range: 24 mm²/s During Operation
