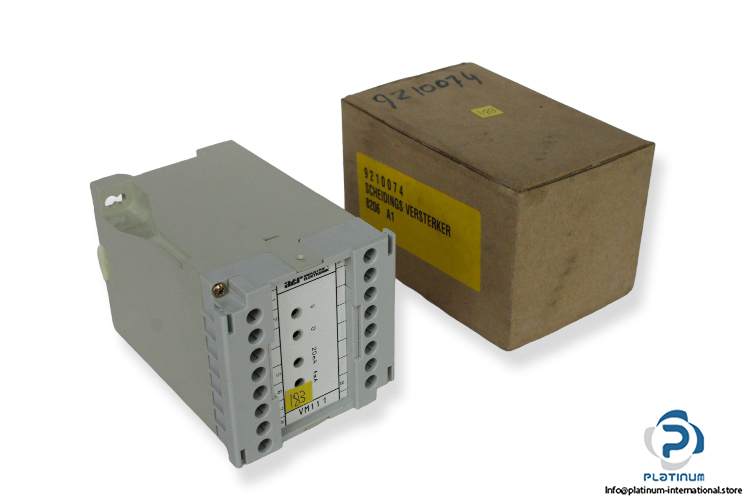

ATR VM111 Isolation Amplifier

Manufacturer: ATR

Type: Isolation Amplifier

Model: VM111

Rated voltage: 220 V AC

Auxiliary energy: 230 V AC

Frequency: 50 … 60 Hz

Input Voltage: 0 … ± 60 m V

Output U voltage: 0 … ± 10 V

Output I current: 0 /4 … 20 m A

Amplification adjustment: 0 .5 … 1.5

Connections: Screw -type terminals

Housing material: Insulating material grey

Ambient temperature: 0 … 50 °C

Dimensions: 114 x 55 x 77 mm
