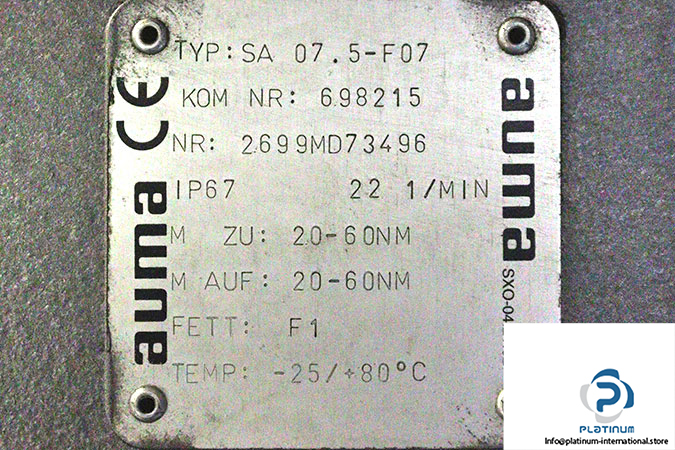

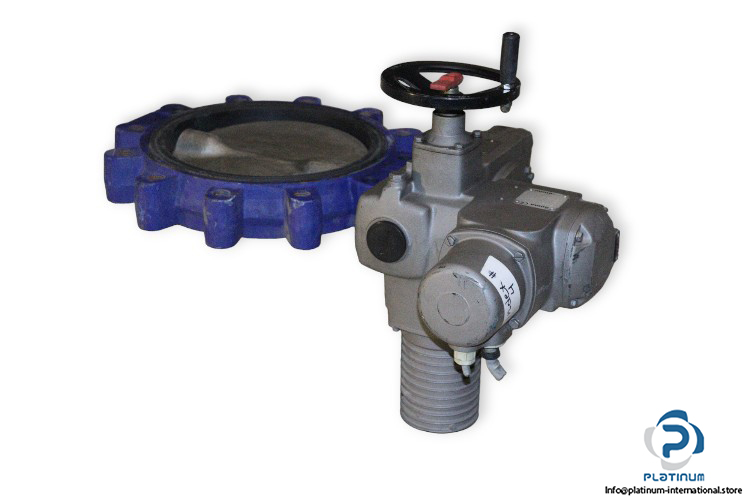

Auma SA 07.5-F07 Multi-Turn Actuator

Manufacturer: Auma
Type: Multi-Turn Actuator
Model: SA 07.5-F07
Part No.: 698215 / 2699MD73496

Type and Size Actuator: SG 07.5
Flange Size: F07
Rated Speed [rpm]: 22
Torque Range in Direction Close [Nm]: 20-60
Torque Range in Direction Open [Nm]: 20-60
Enclosure Protection [IP]: 67
Lubrication: F1
Ambient Temperature Range [°C]: -25…+80

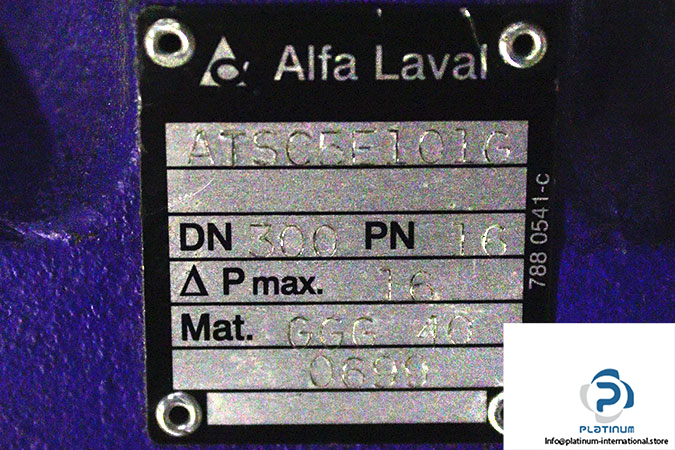

Attachment: Alfa Laval ATSC5F101G Butterfly Valve
Manufacturer: Alfa Laval
Type: Butterfly Valve
Model: ATSC5F101G
Diameter [DN]: 300
Max. Pressure [bar]: 16
Mat.: GGG 40

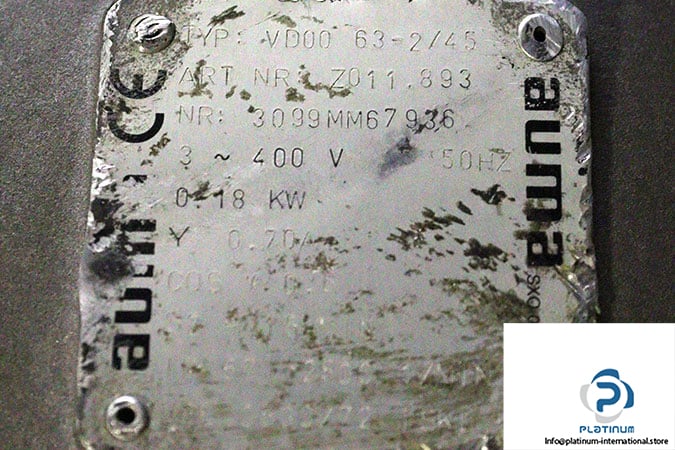

Type AC Motor: VD00 63-2/45
Article Number: Z011.893
Mains Voltage [V]: 400
Mains Frequency [Hz]: 50
Rated Power [kW]: 0.18
Power Factor: 0.70
Enclosure Protection [IP]: 67
Thermal Protection: Th
Insulation Class: F

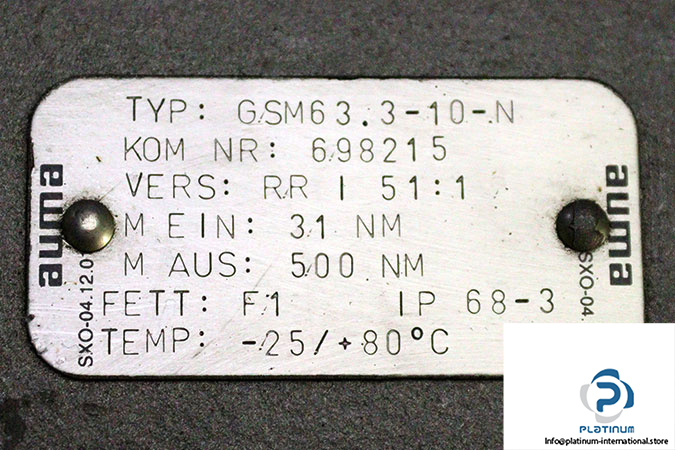

Type Gearbox: GSM63.3-10-N
Ratio [i]: 51
Versions: RR
Input Torque [Nm]: 31
Output Torque [Nm]: 500
Protection Class [IP]: 68
Ambient Temperature Range [°C]: -25…+80
