Auma SA 10.2-FA10 A16264-DS005 Multi-Turn Electric Actuator
Electric Actuator
High-performance Auma SA10.2-FA10 multi-turn electric actuator with torque range of 40“120 Nm, 63 rpm speed, and durable NEMA 4X / 6P protection. Ideal for valve automation, pipelines, and process control systems.Auma SA10.2-FA10 Multi-Turn Electric Actuator

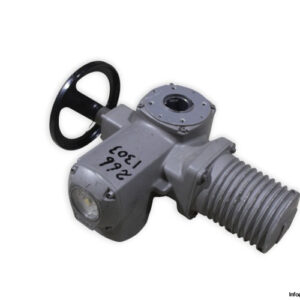

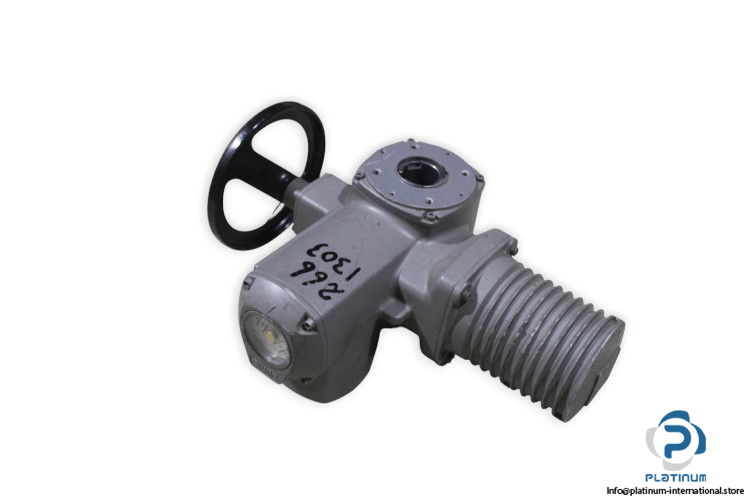

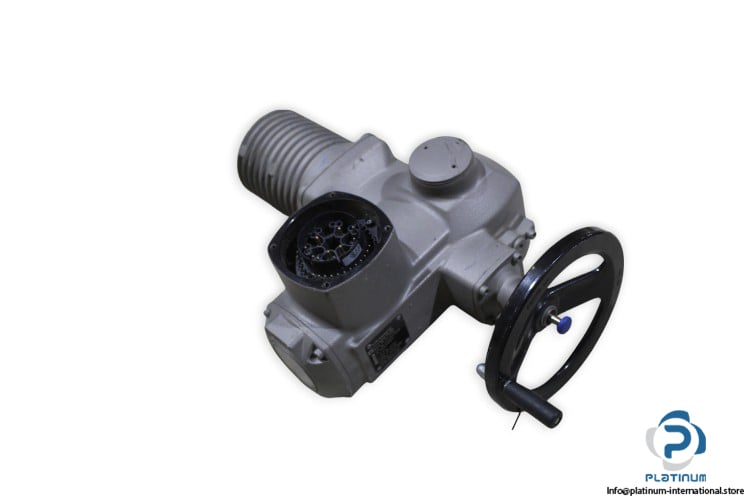

The Auma SA10.2-FA10 Multi-Turn Electric Actuator is a precision-engineered device designed to deliver dependable torque and control for demanding industrial applications. Built with advanced motor technology and robust housing protection, it provides consistent performance even under harsh environmental conditions. Its versatility makes it ideal for use in valve automation systems, pipelines, water treatment facilities, and oil & gas plants. This actuator ensures reliable operation, high torque output, and long service life”perfect for operators seeking efficiency and durability in automated control solutions.

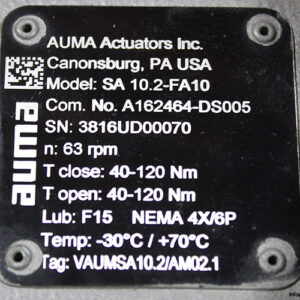

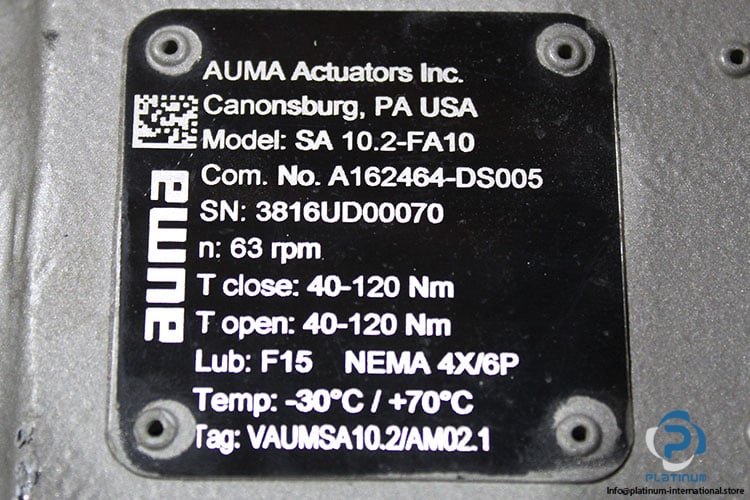

Manufacturer: Auma
Type: Multi-Turn Electric Actuator
Model: SA10.2-FA10
Com. No.: A16264-DS005
Serial No.: 3816UD00070
Attachment
| Flange Size | FA10 |
| Torque | 40 to 120 Nm (close) / 40 to 120 Nm (open) |
| Speed | 63 rpm |
| Lubricant Type | F15 |
| Temperature Range | -30 °C to +70 °C |
| Protection | NEMA 4X / 6P |
| Mounting Interface | VAUMSA10.2/AM02.1 |

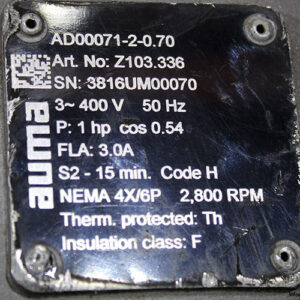

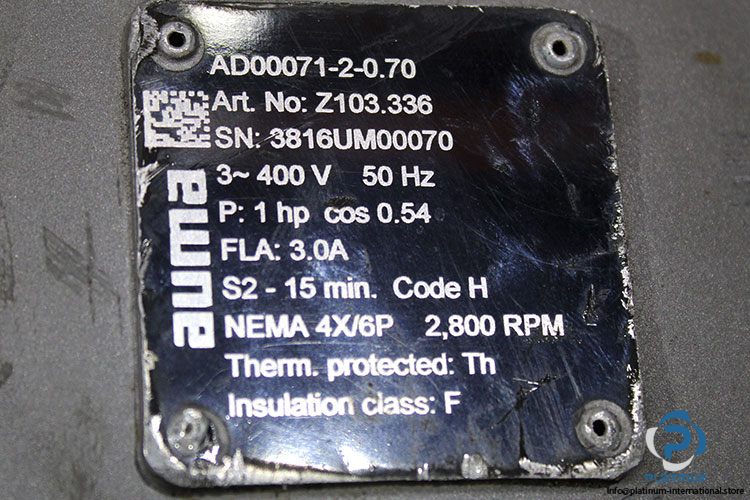

| Art. No. | Z103.336 |
| Serial No. | 3816UM00070 |
| Mains Voltage [V] | 400 V AC-3phase |
| Rated Current [A] | 3 A |
| Mains Frequency [Hz] | 50 |
| Power Factor | 0.54 |
| Code | H |
| Type of Duty | Short-Time Duty S2-15 min |
| Speed [rpm] | 2800 |
| Insulation Class | F |
| Protection | NEMA 4X / 6P |
| Applications | Industrial valves, pipelines, water treatment systems, and oil & gas plant automation. |
