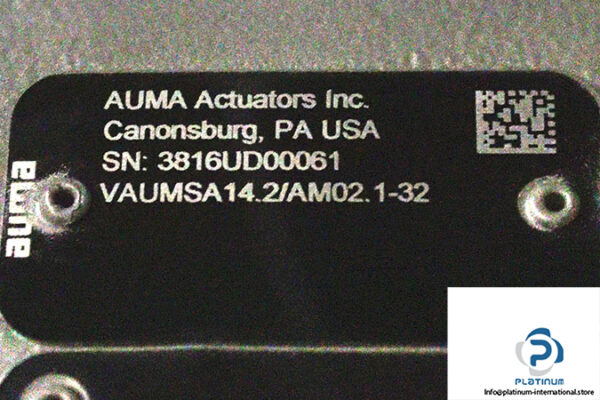

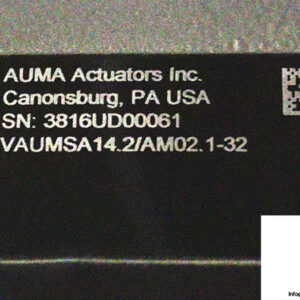

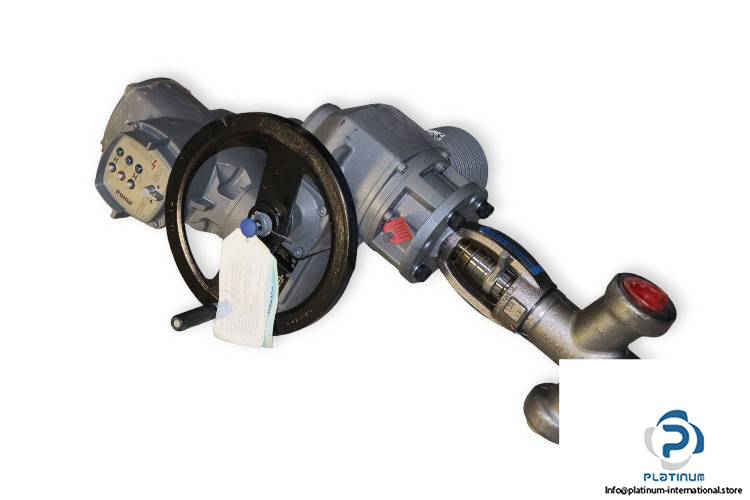

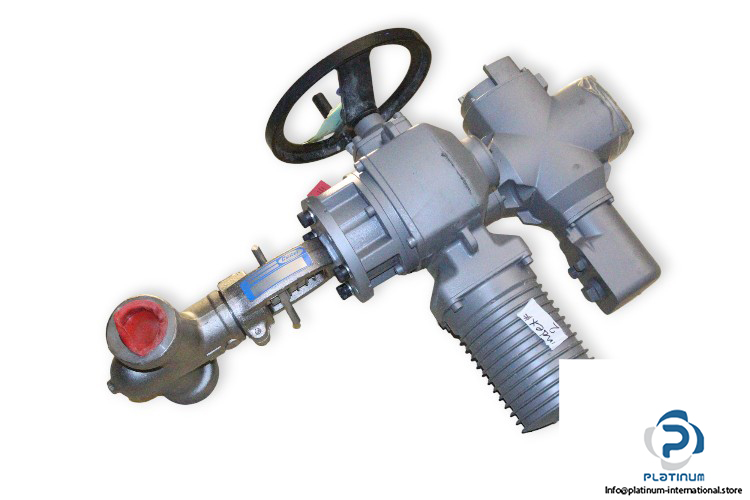

Auma SA 41.2-FA14 Multi-Turn Actuator
Manufacturer: Auma
Type: Multi-Turn Actuator
Model: SA41.2-FA14
Part No.: A162464-DS007

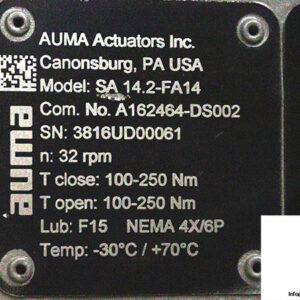

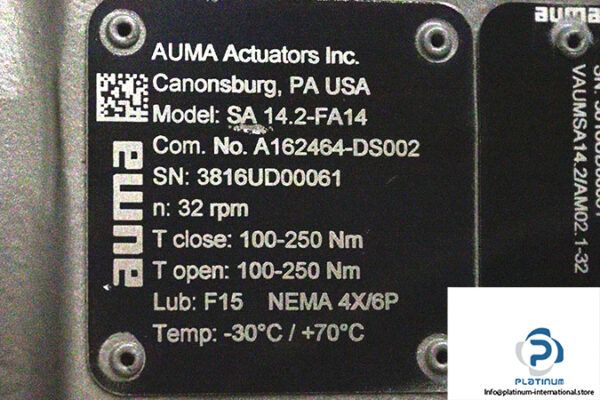

Type and Size Actuator: SA 41.2
Flange Size: FA14
Torque Range in Direction Close [Nm]: 100-250
Torque Range in Direction Open [Nm]: 100-250
Lubricant Type: F15
Rated Speed [rpm]: 32
Ambient Temperature Range [°C]: -30…+75

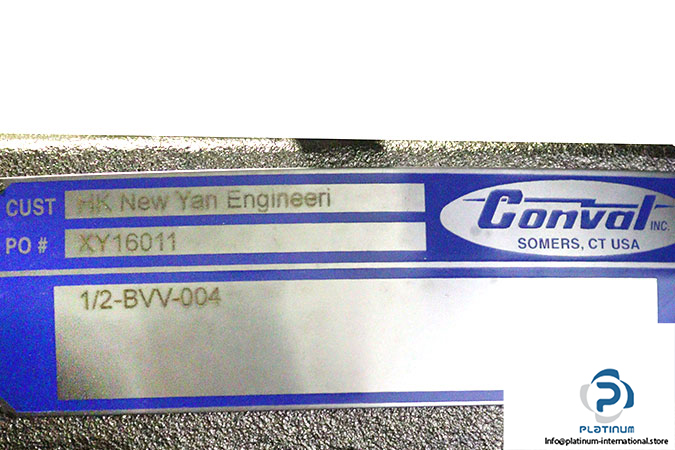

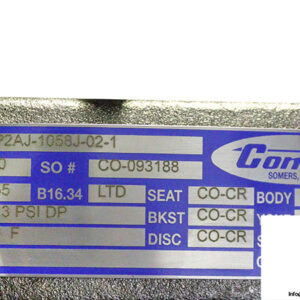

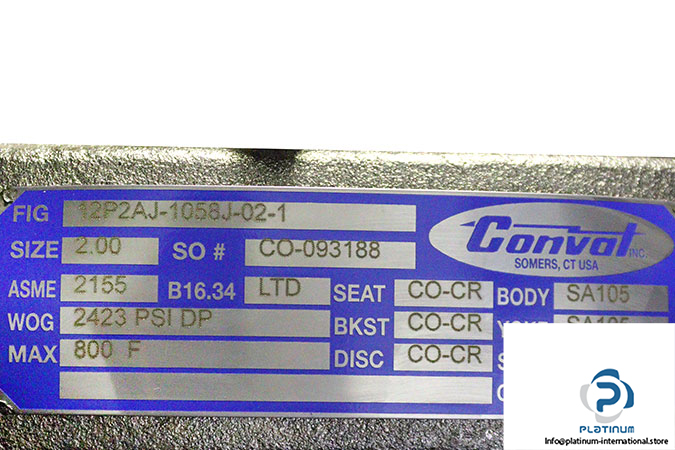

Attachments: Conval 12P2AJ-1058-02-1 Valve
Manufacturer: Conval
Type: 12P2AJ-1058-02-1
Model: Valves
Nominal Pipe Size: 2.00
Product Type: 1
Pressure Class: 2
Valve Design: P2
End Connection: A
Size Code (2): 105
Material: 8
Engineering Code: 02-1

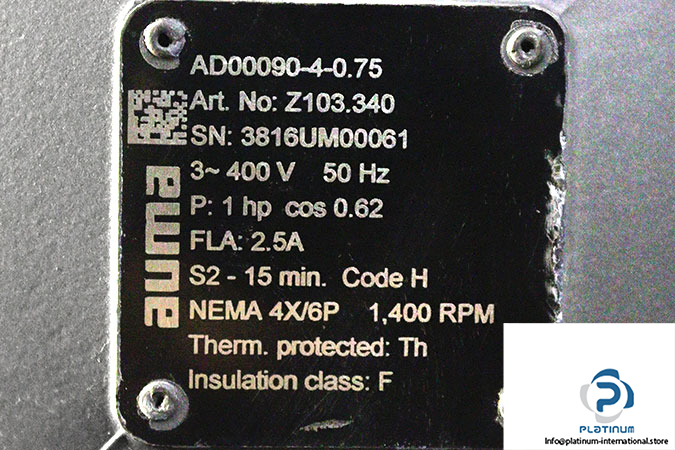

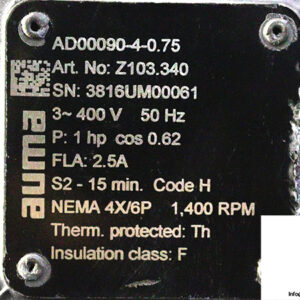

Type AC Motor: AD00090-4-0-0.75
Article Number: Z103.340
Mains Voltage [V]: 400 Star
Rated Current [A]: 2.5
Mains Frequency [Hz]: 50
Horsepower [HP]: 1
Power Factor: 0.62
Type of Duty: Short-Time Duty S2-15 min
Speed [rpm]: 1400
Insulation Class: F
Thermistors Protected: Th

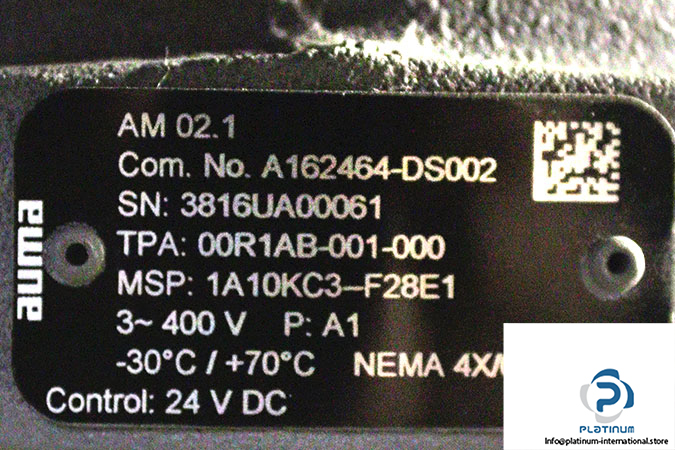

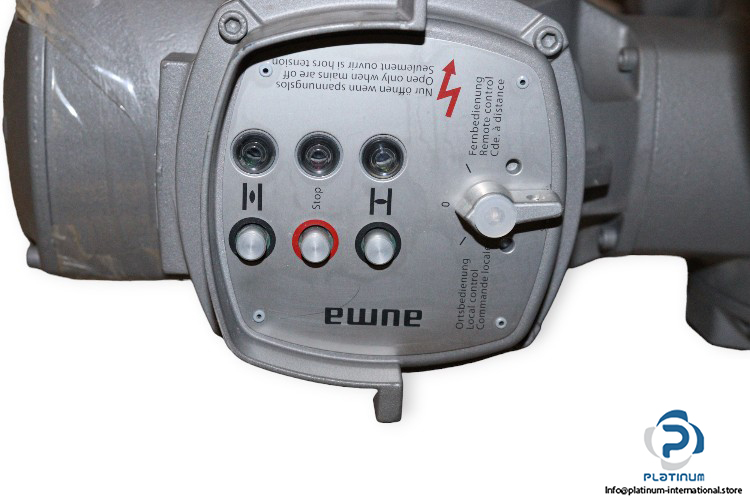

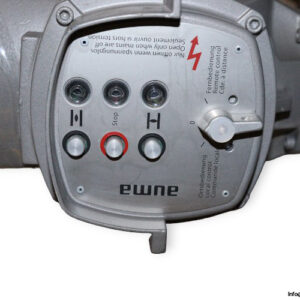

Type Designation Control: AM 02.1
Terminal Plan of Actuator: 00R1AB-001-000
Actuator Controls Terminal Plan: 1A10KC3-F28E1
Mains Voltage [V]: 400
AUMA Power Class Switchgear: A1
Ambient Temperature Range [°C]: -30…+70
Control Voltage [Vdc]: 24
