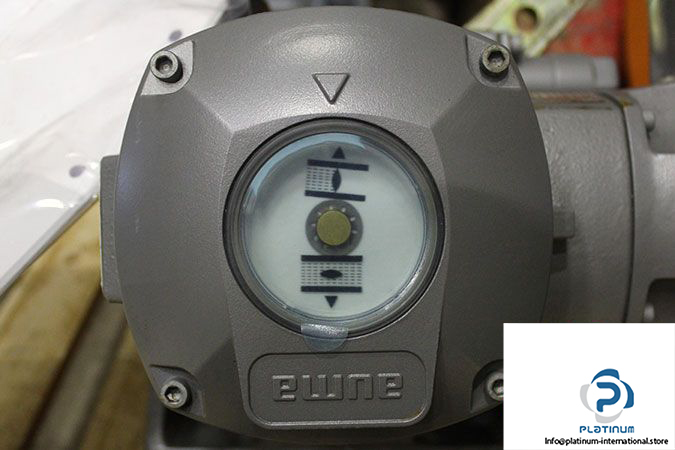

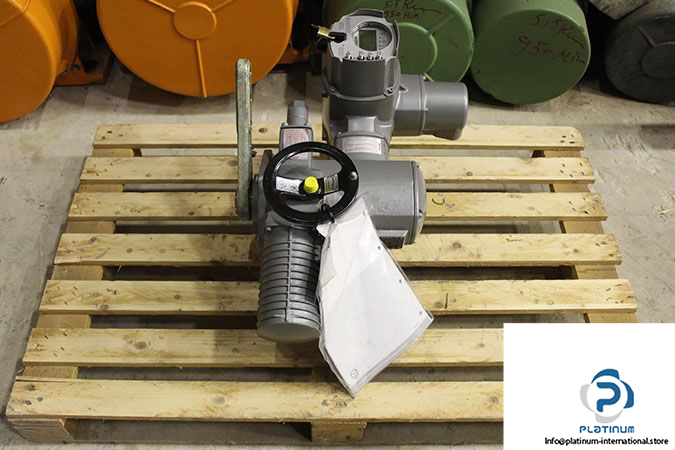

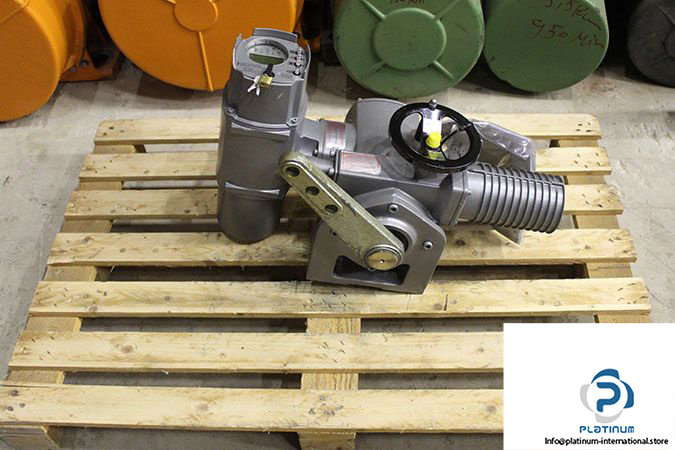

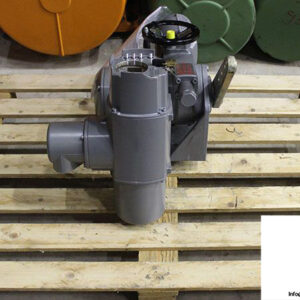

Auma SGF 12.1-FUSS Lever Actuator
New
In stock1 unitReady to ship
LEVER ACTUATOR
Heavy-duty lever actuator by AUMA Riester, designed for butterfly valves, featuring 500“1200 Nm torque, IP68 enclosure, and robust worm gear operation for industrial flow control systems.1200500ActuatorAumaButterflyDutyGearGearboxIndustrialIP68LevermotorNmSGF12.1-FUSSShort-TimeValveWorm
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

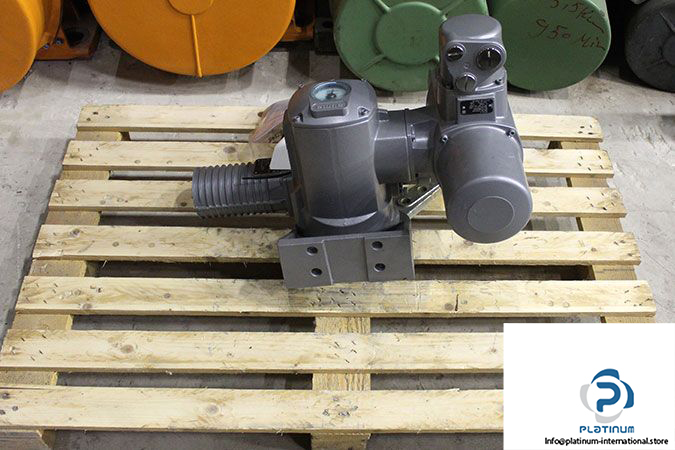

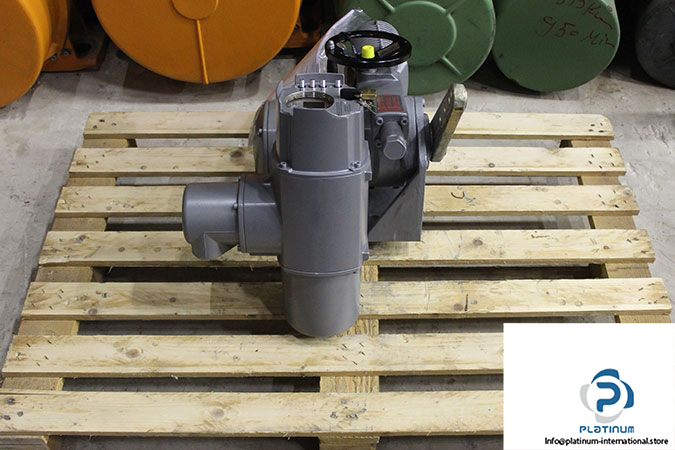

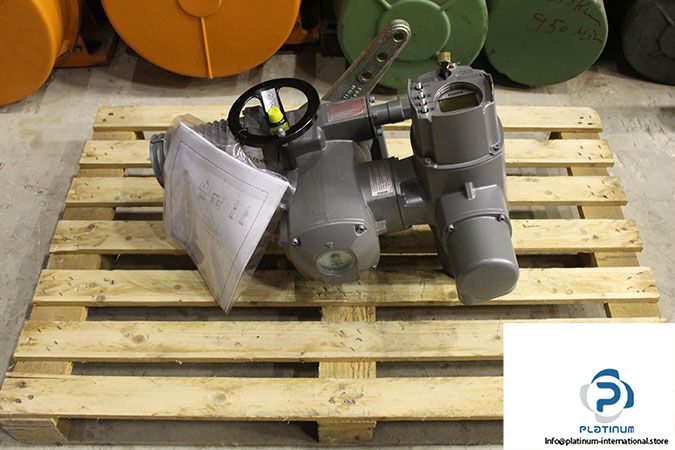

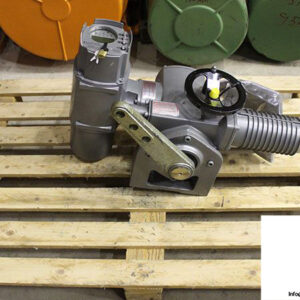

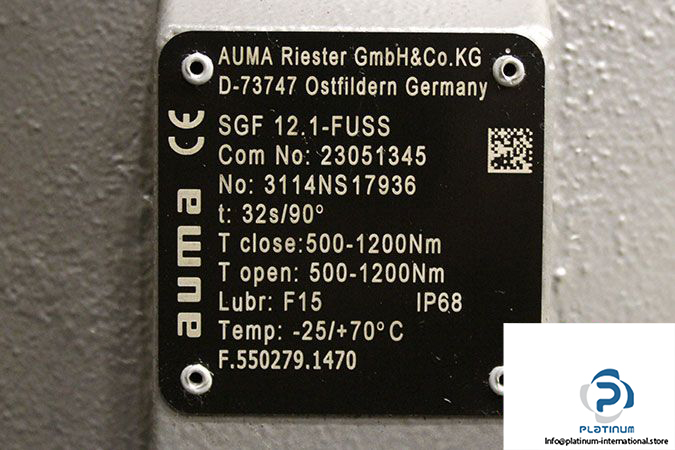

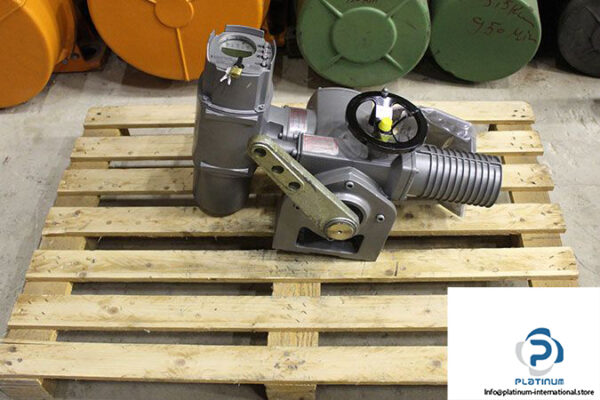

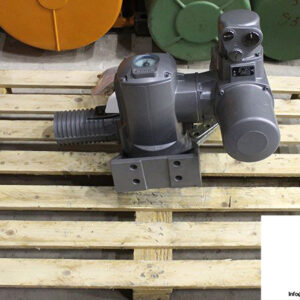

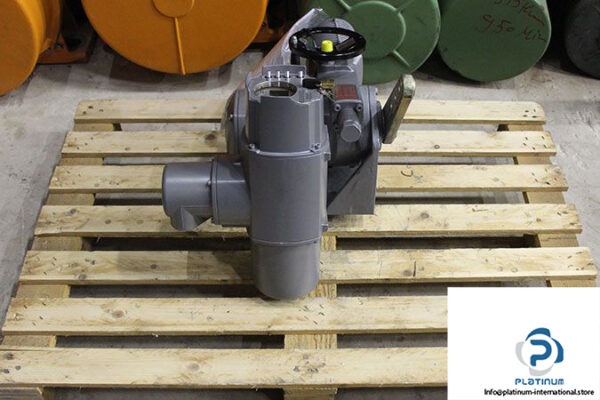

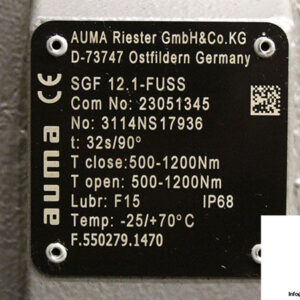

AUMA SGF12.1-FUSS LEVER ACTUATOR
This industrial lever actuator by AUMA Riester is engineered for controlling butterfly valves with a worm-gear-based lever gearbox system. Designed for demanding automation environments, it ensures consistent performance with precise torque control and robust motor operation.
Manufacturer: AUMA Riester
Type: Lever Actuator
Model: SGF12.1-FUSS
Serial Number: 3114NS17936
Commission Number: 23051345
Valve Type: Butterfly Valve with Lever Arrangement
Gearbox Type: Lever Gearbox Based on Worm Gearbox GS
Size of Actuator: 12.1
Motor Information
Control & Wiring
| Speed / Operating Time | 32 sec for 90° |
| Torque Range (Close) | 500“1200 Nm |
| Torque Range (Open) | 500“1200 Nm |
| Lubricant Type | F15 |
| Enclosure Protection | IP68 |
| Ambient Temperature Range | -25 / 75°C |

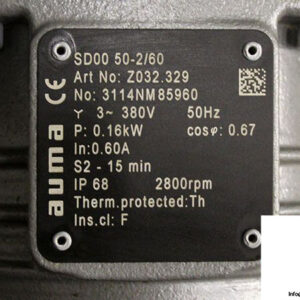

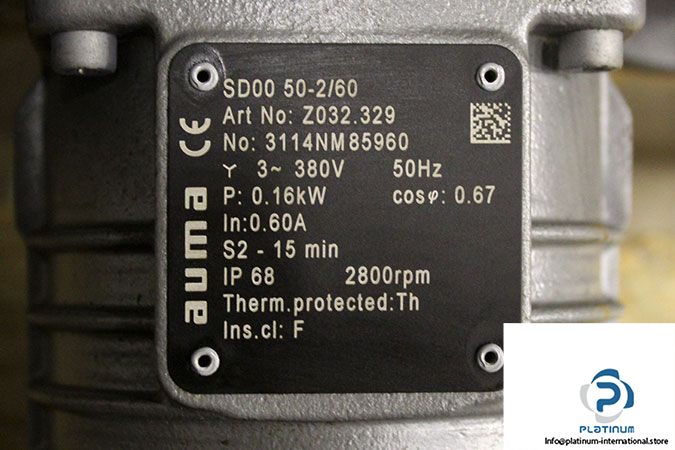

| Motor Type | SD00 50-2/60 |
| Article Number | Z032.329 |
| Mains Voltage | 380V (Star) |
| Mains Frequency | 50 Hz |
| Rated Current | 0.60 A |
| Nominal Power | 0.16 kW |
| Power Factor | 0.67 |
| Type of Duty | Short-Time Duty S2-15 min |
| Speed | 2800 rpm |
| Insulation Class | F |
| Thermistors Protected | Th |

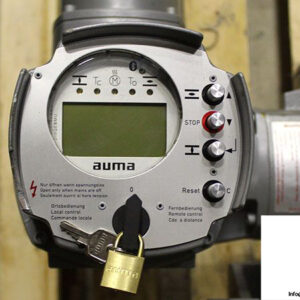

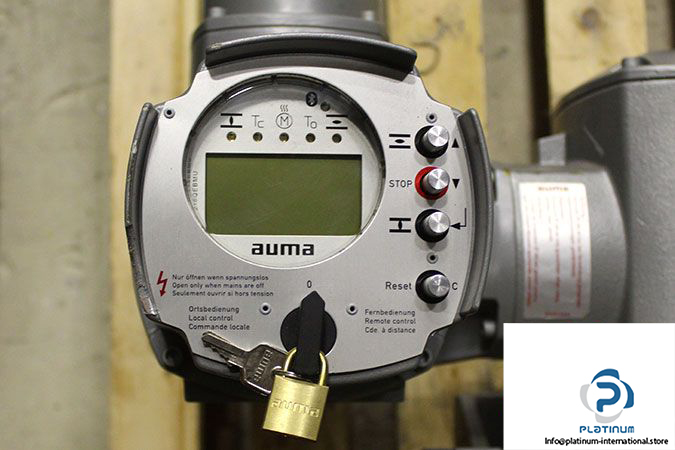

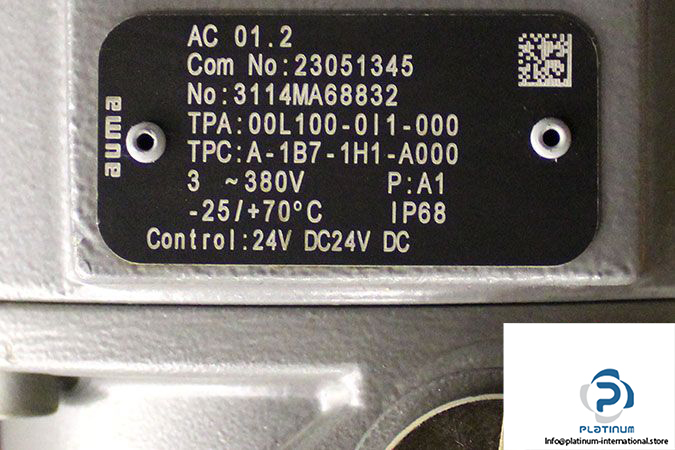

| Type Designation | AC 01.2 |
| Terminal Plan | 00L100-0I1-000 |
| Wiring Diagram | A-1B7-1H1-A000 |
| Control Voltage | 24V DC / 24V DC |
| Power Class Switchgear | A1 |
