AUT Vemer CA0160036R03 Reverse Gear Switch

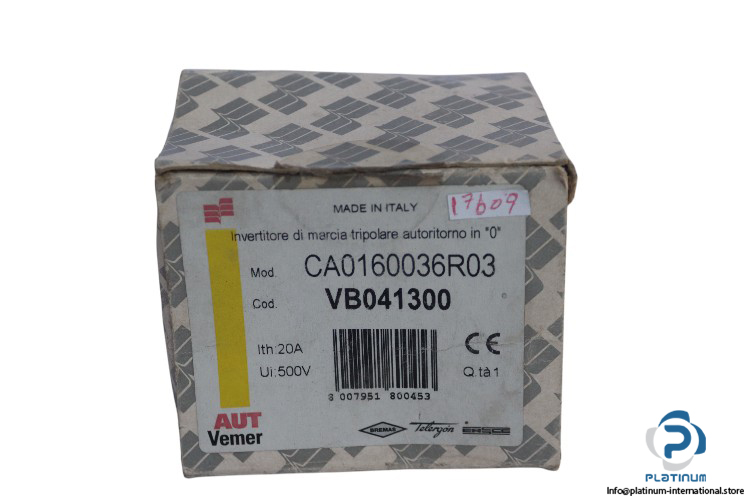

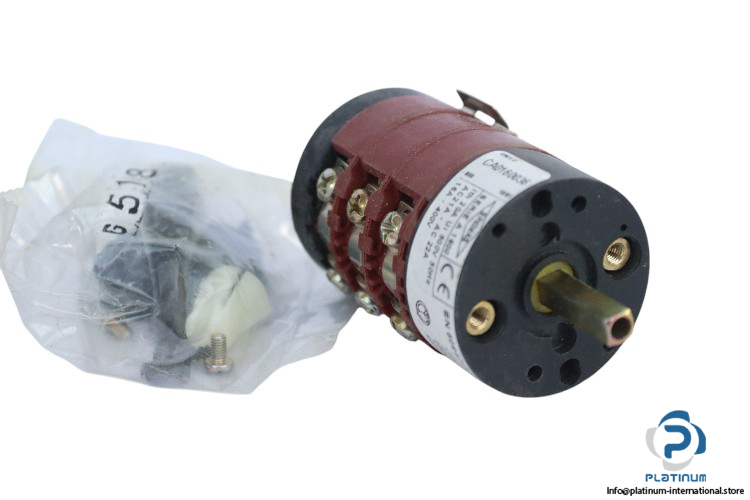

Aut Vemer / Bremas Reverse Gear Switch CA0160036R03

Manufacturer: Aut Vemer / Bremas

Type: Reverse Gear Switch

Model: CA0160036R03

Part No.: VB041300

The Aut Vemer / Bremas Reverse Gear Switch CA0160036R03 is a high-performance switch designed for industrial applications requiring reliable and efficient reverse gear operation. Built to meet rigorous standards, this switch is equipped with self-return functionality to ensure safe and automatic resetting to position 0. Its robust design and adherence to EN 60947-3 standards make it ideal for demanding environments.

Technical Specifications:

• Return: Self-return to 0

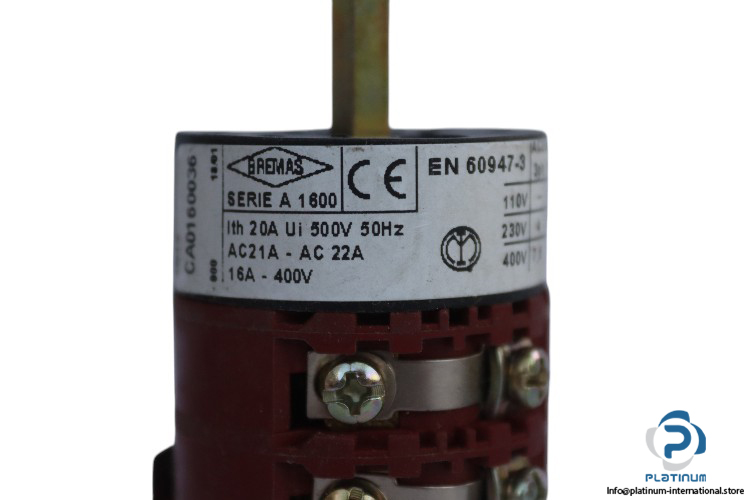

• Thermal Current Ith: 20 A
• Insulation Voltage Ui: 500 V
• Frequency: 50 Hz
• Switching Rating: 16 A, 400 V AC

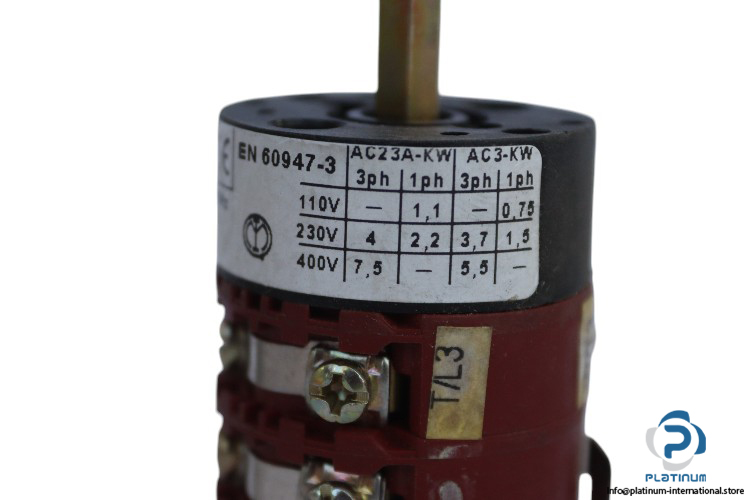

• Power:
  • AC-23A: 1.1 kW (Single phase) 110 V
  • AC-23A: 4 kW (3 phase) 230 V, 2.2 kW (Single phase) 230 V
  • AC-23A: 7.5 kW (3 phase) 400 V
  • AC-3: 0.75 kW (Single phase) 110 V
  • AC-3: 3.7 kW (3 phase) 230 V, 1.5 kW (Single phase) 230 V
  • AC-3: 5.5 kW (3 phase) 400 V
• Standard: EN 60947-3

With a thermal current capacity of 20 A and support for a wide range of power configurations, this reverse gear switch is engineered for safety, reliability, and versatility. Its compliance with international standards further ensures top-notch performance in various industrial applications.
