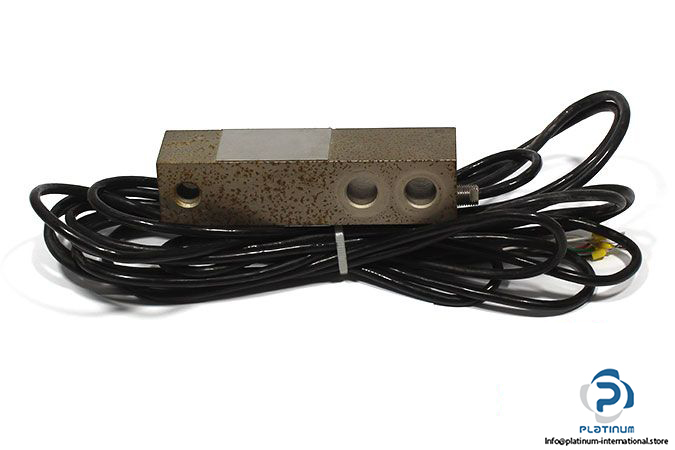

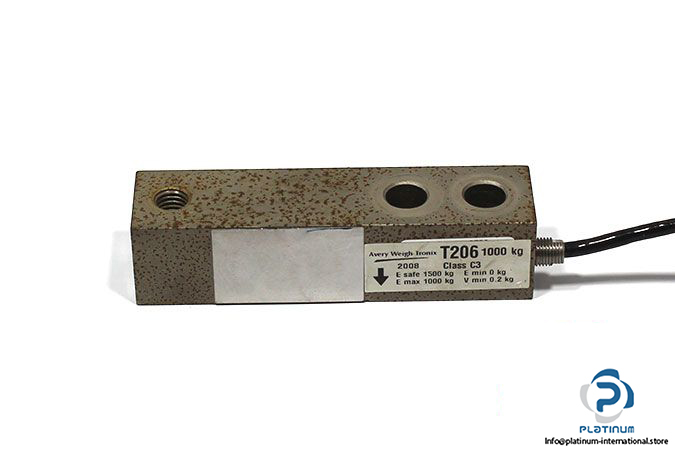

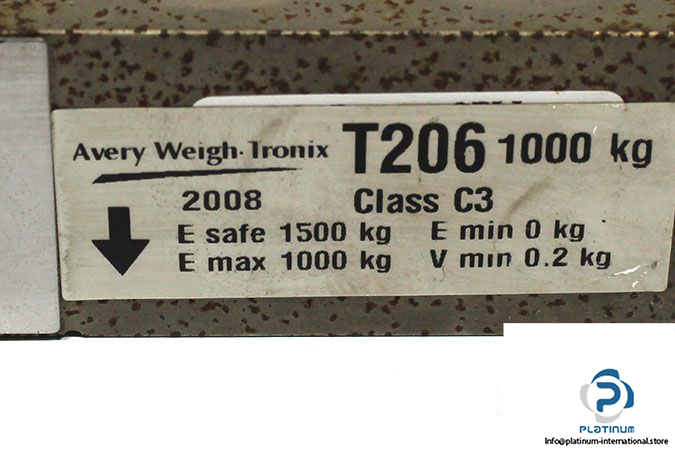

Avery Weigh-Tronix T206 MAX 1000 KG Shear Beam Load Cell

Manufacturer: Avery Weigh-Tronix

Type: Shear Beam Load Cell

Model: T206

Maximum weight limit (E max): 1000 kg (1 t)

Rated Output: 3 (± 0.004) mV/V

Permitted Excitation Range: 5…18 VDC

Input Resistance: 350 (±3.5) Ω

Output Resistance: 350 (±3.5) Ω

Operational Temperature: -10…40 °C

Cable Length: 4 m

Protection Class: IP66

Weight: 0.96 kg
