B Meters MUT 2200/EL Flow Meter 536.43
New
In stock1 unitReady to ship
Flow Meter
B METERS MUT 2200/EL Flow Meter with MC 608B Converter is a high-precision electromagnetic flow meter designed for water measurement in industrial applications. With a DN 250 size, 16 bar rated pressure, and an IP68 enclosure, it ensures durability and accuracy under extreme conditions.16250608BAccuracybarConverterDNEboniteElectrodeselectromagneticflowHCHighIndustrialIP68linedMCMeasurementMeterWater
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

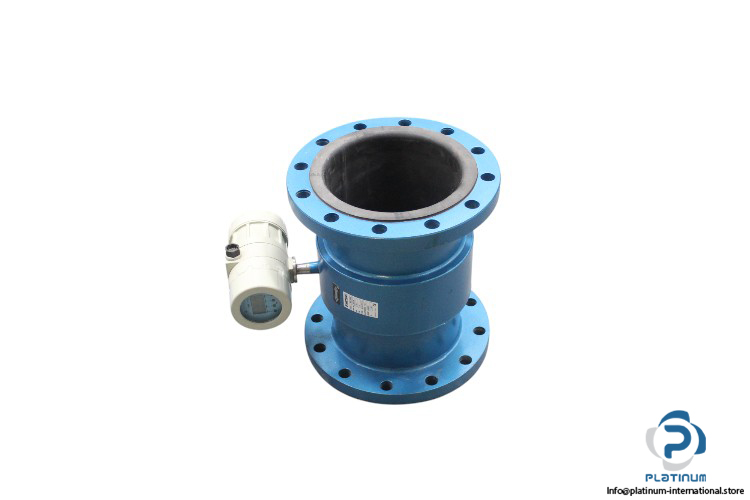

B METERS MUT 2200/EL Flow Meter with MC 608B Converter
The B METERS MUT 2200/EL Flow Meter is a high-precision electromagnetic flow meter designed for industrial water measurement applications. With a nominal diameter of DN 250, a rated pressure of 16 bar, and an ebonite internal lining, this flow meter ensures durability, accuracy, and reliability under demanding conditions. Equipped with HC electrodes and an IP68 enclosure, it is built for long-term performance in various environments.
- Manufacturer: B METERS
- Type: Flow Meter
- Model: MUT 2200/EL
- Part No: CAC4 166

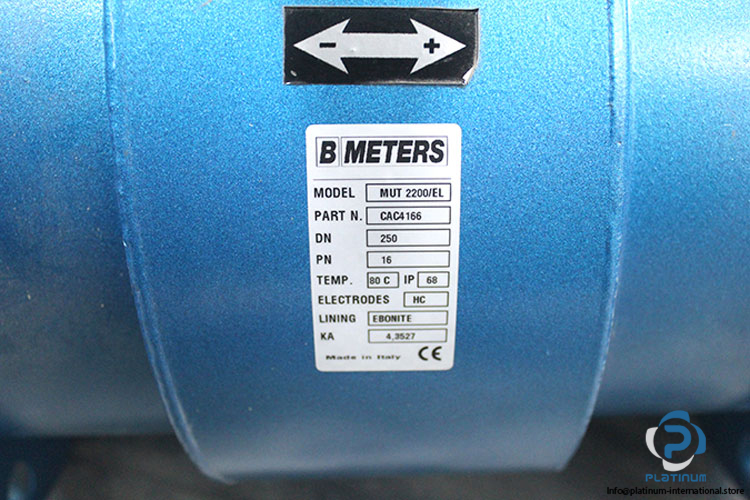

Technical Specifications
- Diameter Nominal: DN 250 mm
- Rated Pressure: 16 bar
- Temperature Range: Up to 80°C
- Electrodes: HC
- Lining: Ebonite
- KA-Factor: 4.3527
- Enclosure Protection: IP68

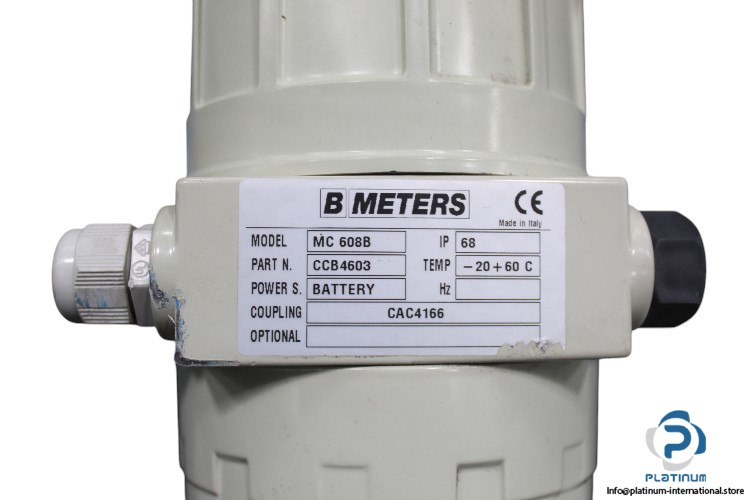

Attachment – MC 608B Converter
- Manufacturer: B METERS
- Type: Converter
- Model: MC608B
- Part No: CCB 4603

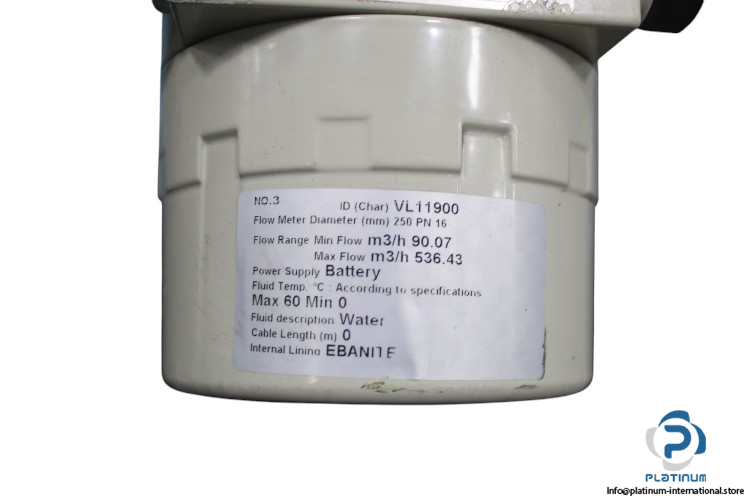

- ID: VL11900
- Coupling: CAC4166
- Rated Pressure: 16 bar
- Flow Meter Diameter: 250 mm
- Flow Range: 90.07 – 536.43 m³/h
- Power Supply: Battery
- Fluid Description: Water
- Internal Lining: Ebonite
- Temperature Range: -20 to +60°C
- Enclosure Protection: IP68
