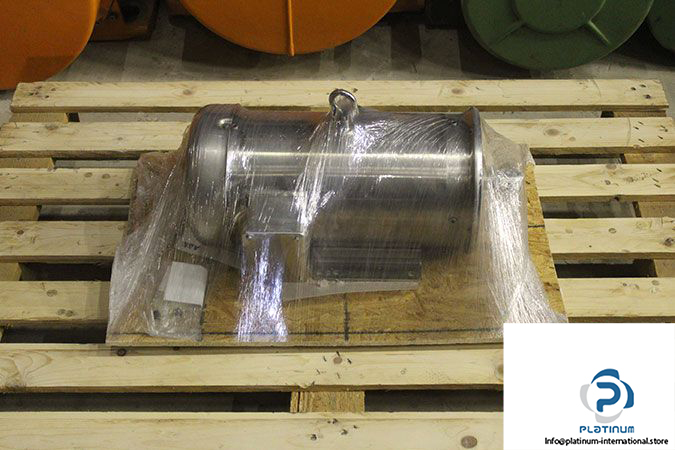

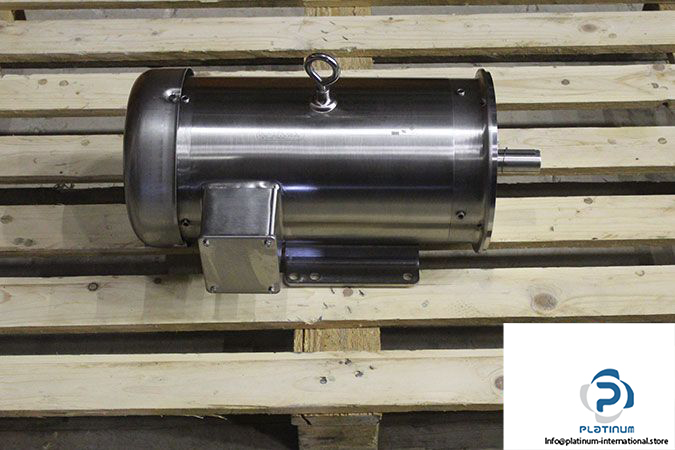

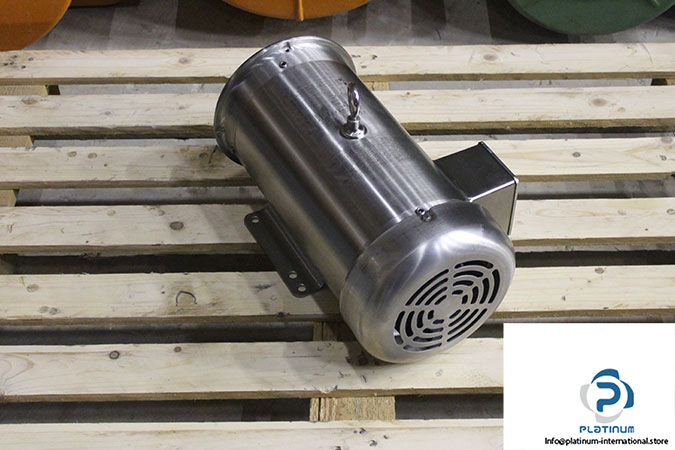

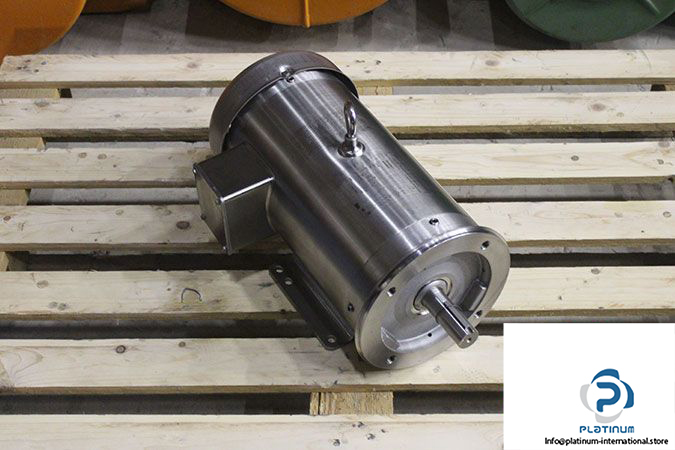

Baldor Reliance CSSEWDM3611T Stainless Steel Washdown Motor

Manufacturer: ABB Motor/Baldor Reliance

Type: Stainless Steel Washdown Motor

Model: CSSEWDM3611T

SPEC.: 36G560S987G1

Enclosure: TEFC

Frame: 182TC

Motor Type: 3636M

Frame Material: Stainless Steel

Rated Output Power [HP]: 3

Rated Voltage [V]: 230/460

Rated Speed [rpm]: 1760

Full Load Current [A]: 8.4/4.2

Full Load Torque [lb/ft]: 9.04

Ambient Temperature [°C]: 40

Frequency [Hz]: 60

Duty: S1

Shaft Diameter [mm]: 28

Power Factor: 76

Number of Poles: 4

Efficiency [%]: 89.5

Service Factor: 1.15

Insulation Class: H

Weight [kg]: 47.0
