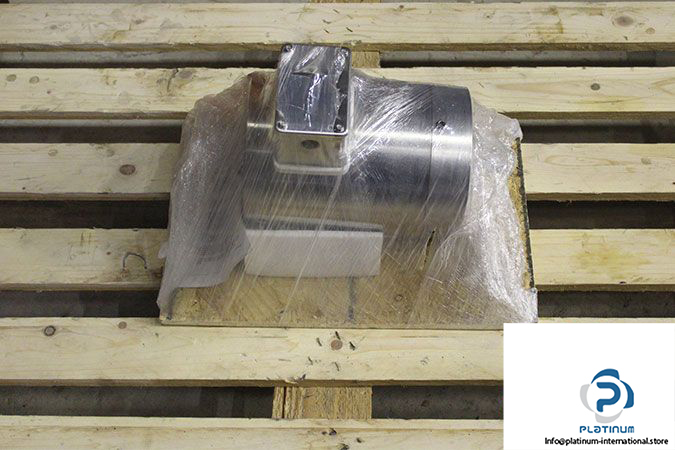

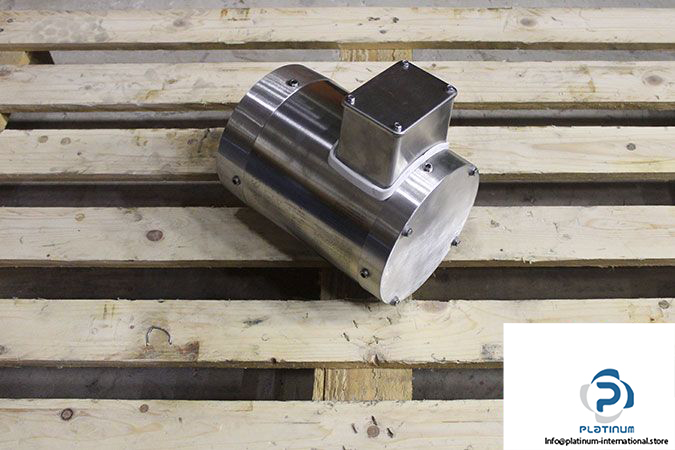

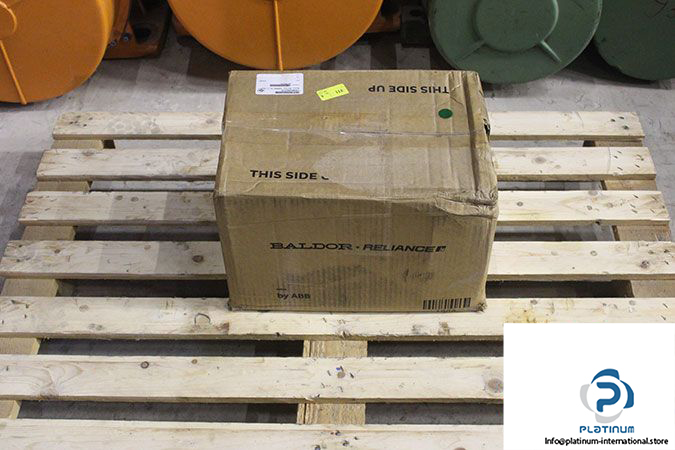

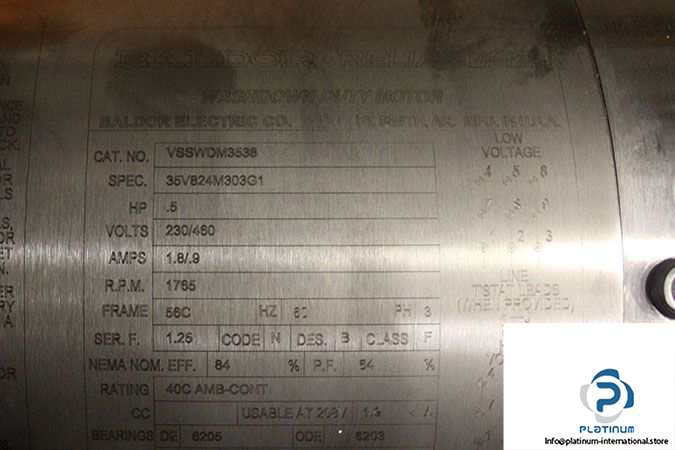

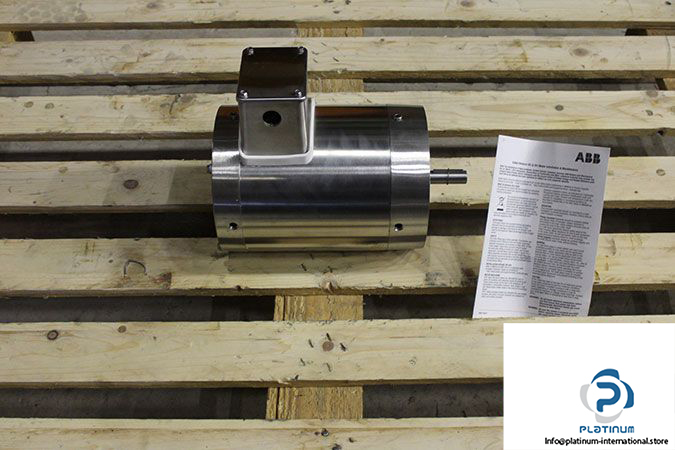

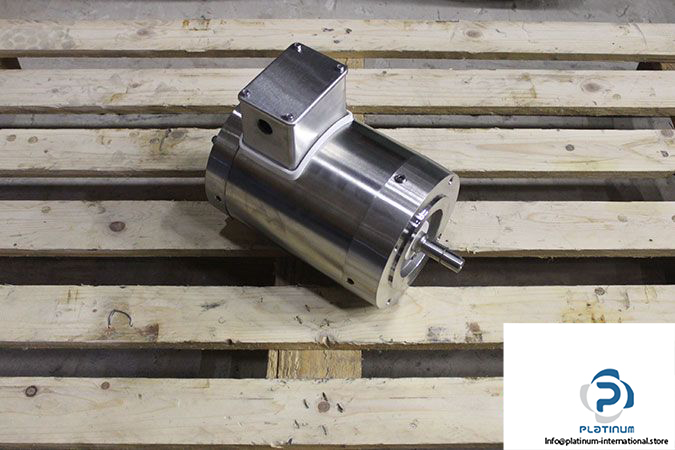

Baldor Reliance VSSWDM3538 Stainless Steel Washdown Motor
Manufacturer: ABB Motor/Baldor Reliance
Type: Stainless Steel Washdown Motor
Model: VSSWDM3538
SPEC.: 35V824M303G1
Enclosure: TENV
Frame: 56C
Phase: 3
Motor Type: 3516M
Frame Material: Stainless Steel
Rated Output Power [HP]: 0.5
Rated Voltage [V]: 230/460
Rated Speed [rpm]: 1765
Full Load Current [A]: 1.8/0.9
Ambient Temperature [°C]: 40
Frequency [Hz]: 60
Duty: S1
Shaft Diameter [mm]: 16
Power Factor: 64
Number of Poles: 4
Efficiency [%]: 89.5
Service Factor: 1.25
Insulation Class: F
Weight [kg]: 16.5
