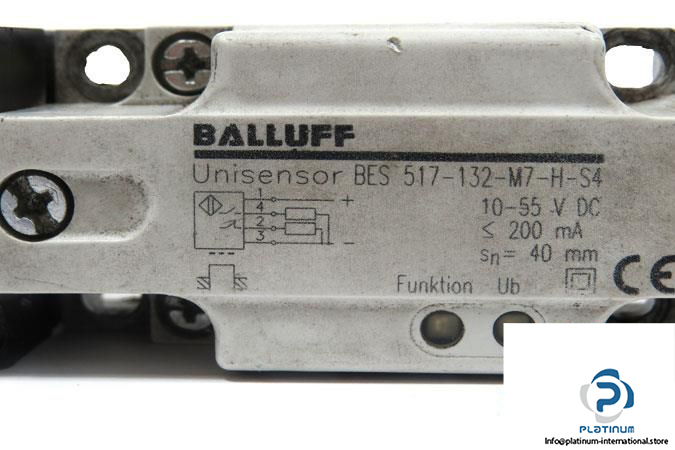

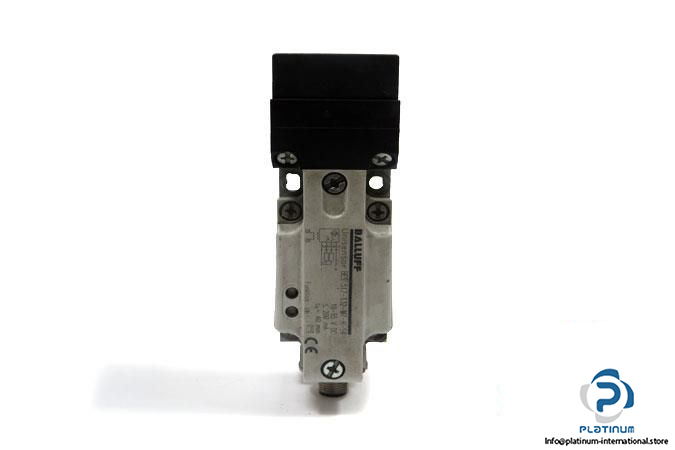

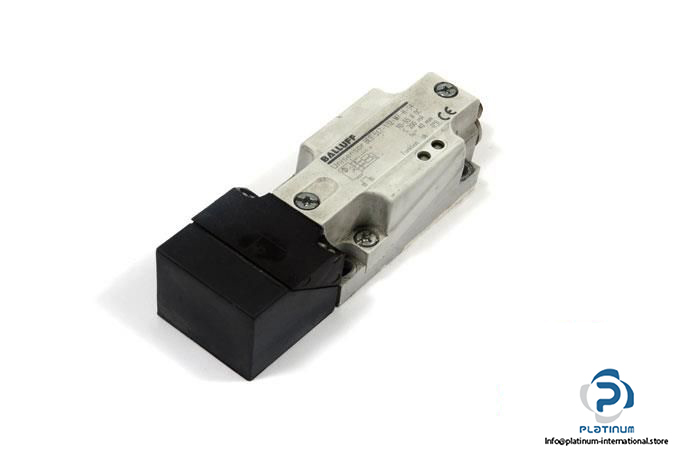

Balluff BES 517-132-M7-H-S4 Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order Code: BES020E

MRN: BES 517-132-M7-H S4

Sensing Range: 40 mm

Operating Voltage: 10 … 55 V DC

Switching frequency: 50 Hz

Load current max.: 200 mA DC

Electrical design: PNP

Output Function: Normally open/normally closed

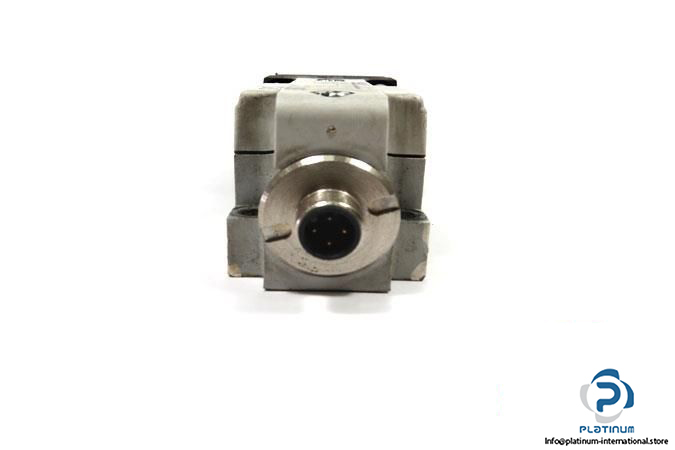

Connector type: M12 Connector, 4-pin

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 70°C

Dimensions: 132.5 x 40 x 40 mm

Material: PBT

Mounting: non-flush mountable

Condition: Used
