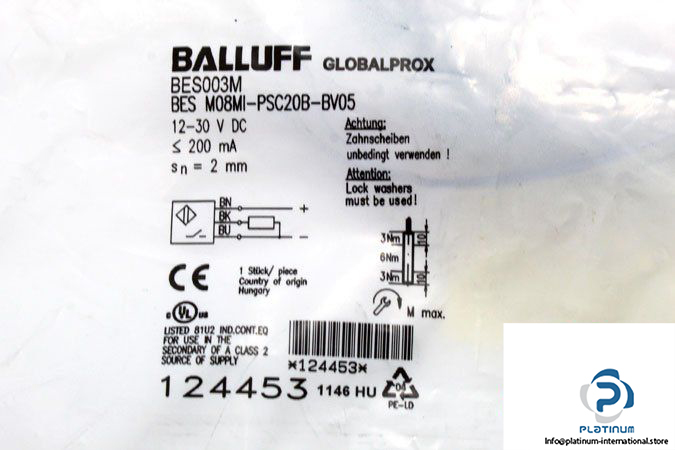

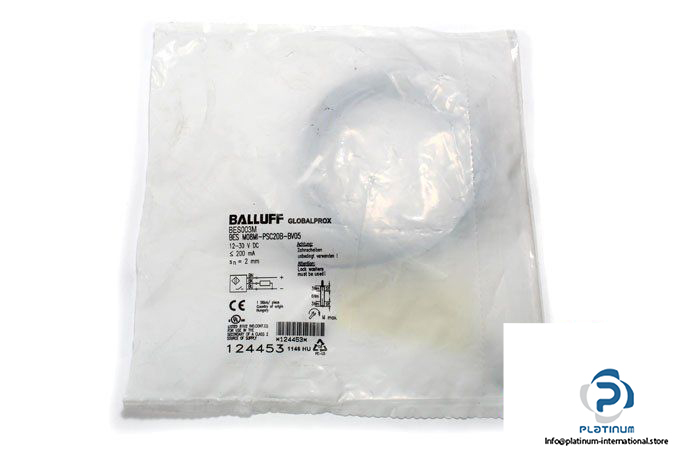

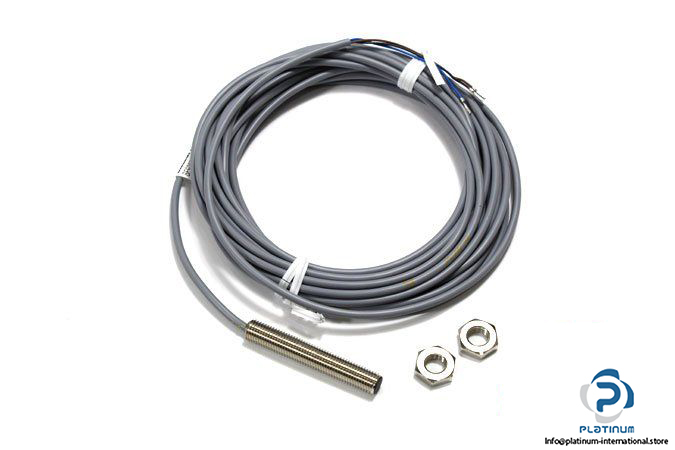

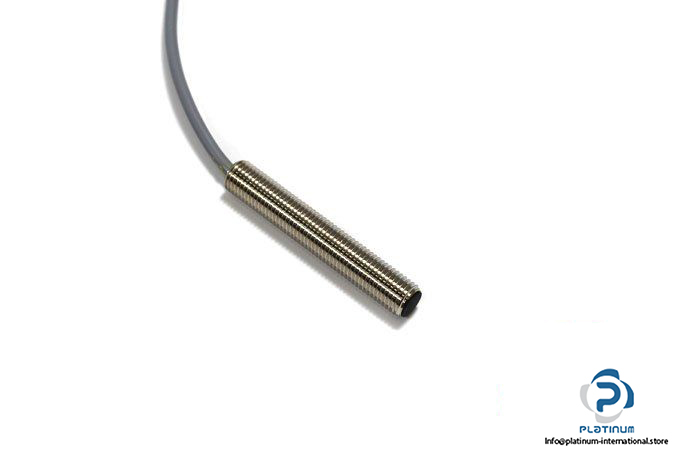

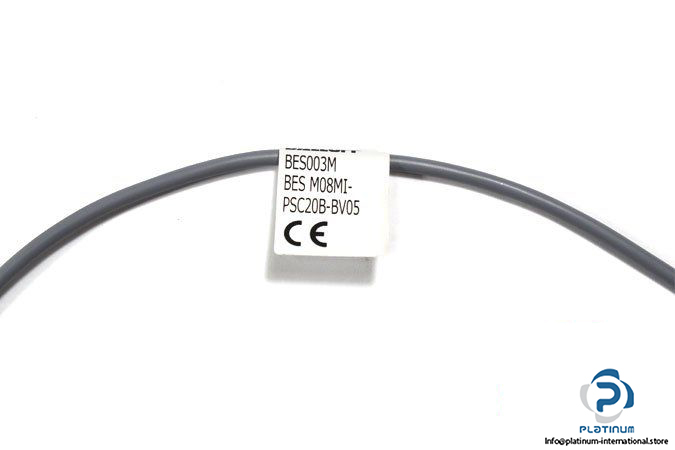

Balluff BES M08MI-PSC20B-BV05 Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order Code: BES003M

Part No.: BES M08MI-PSC20B-BV05

Rated operating distance: 2 mm

Assured operating distance: 1.6 mm

Operating Voltage: 12 … 30 V DC

Operating Current: 200 mA

Switching frequency: 700 Hz

Electrical design: PNP

Switching output: Normally open

Connector type: PVC Cable, 5 m

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 8 x 50 mm

Housing material: CuZn , Nickel plated

Sensing face material: PA 12

Mounting: Flush-mountable

Weight: 80 g
