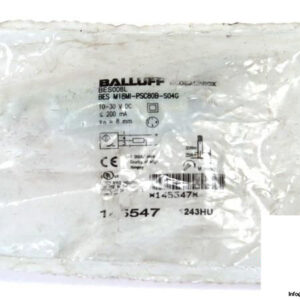

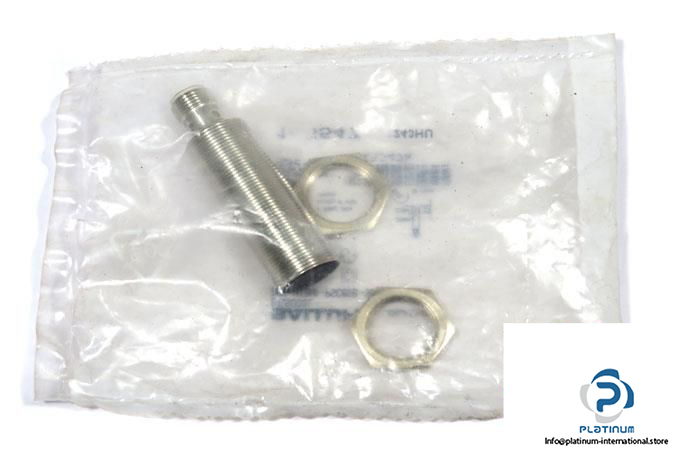

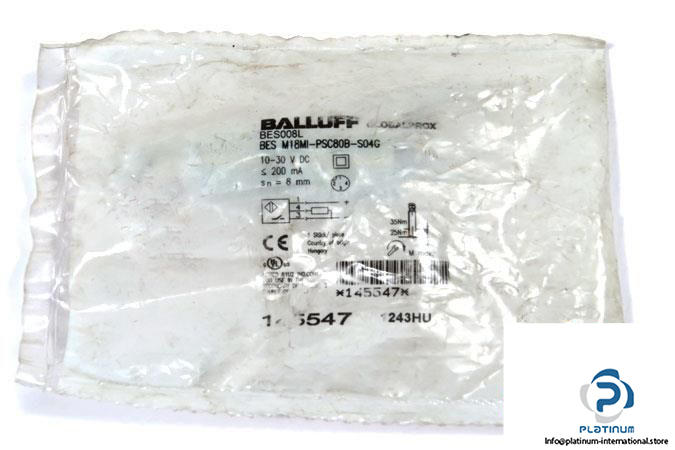

Balluff BES M18MI-PSC80B-S04G Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order code: BES008L

MRN: BES M18MI-PSC80B-S04G

Sensing Range: 8 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 1000 Hz

Load current max.: 200 mA DC

Electrical design: PNP

Output Function: Normally open

Connector type, length: M12 Connector, 4-pin

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 18,65 mm

Material: Nickel-free coated brass; sensing face: PBT

Mounting: Flush mountable

Supplied Accessories: 2 lock nuts

Condition: New
