Balluff BES M18MP-PSC50B-S04G Inductive Proximity Sensor
New
Available on request
Inductive Proximity Switch
The Balluff BES M18MP-PSC50B-S04G inductive proximity switch provides accurate and durable non-contact detection with 5 mm sensing range and IP68 protection for industrial automation systems.10-30VBalluffBESBES04T5dcInductiveIndustrialIP68M18M18MP-PSC50B-S04GNOPNPProximitySensorSeriesSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

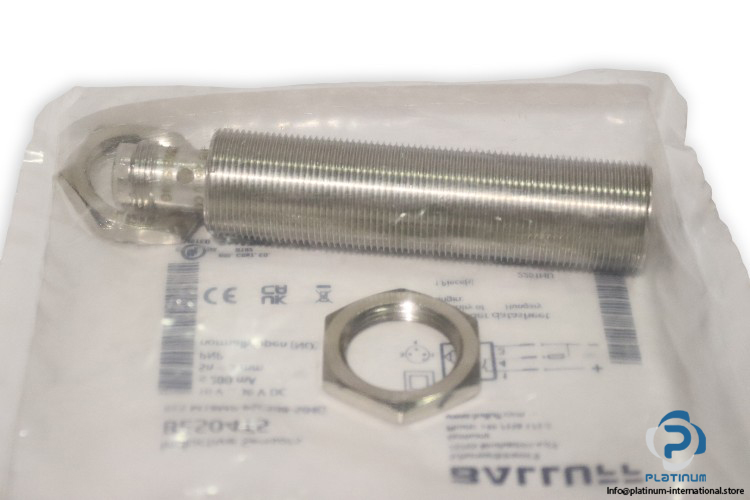

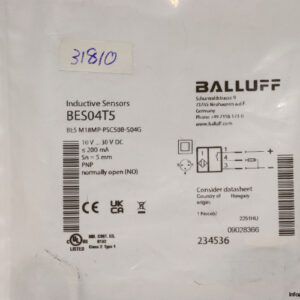

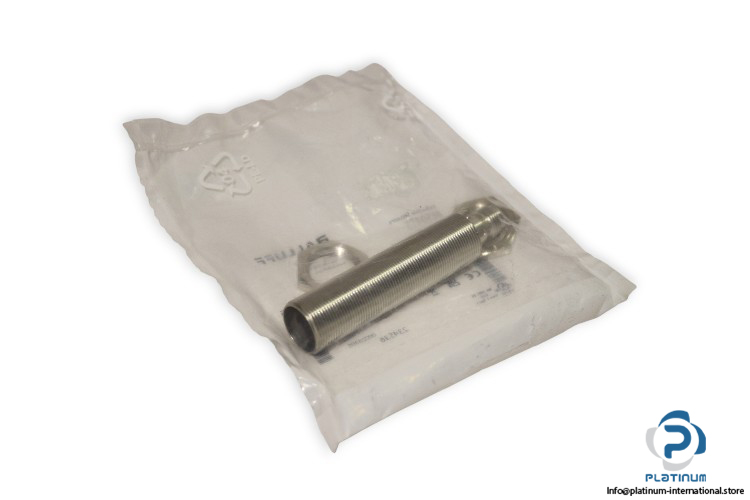

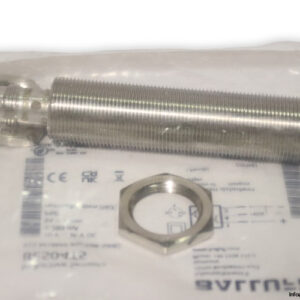

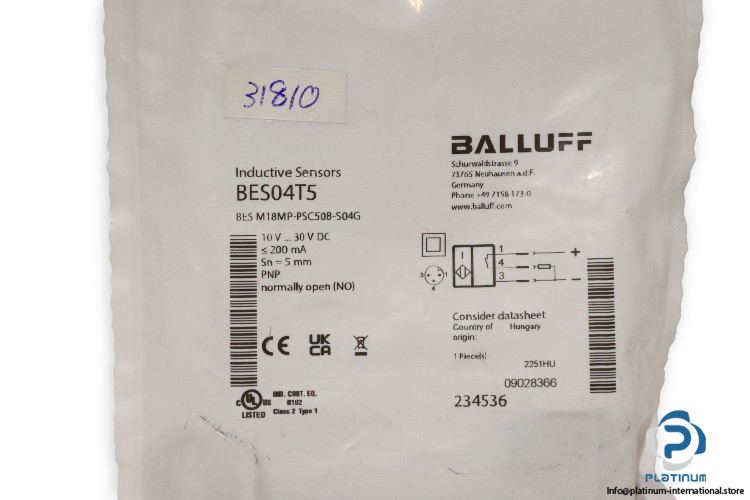

Balluff BES M18MP-PSC50B-S04G Inductive Proximity Sensor
The Balluff BESM18MPPSC50BS04G Inductive Proximity Switch is a high-performance sensor designed for precise object detection in demanding industrial environments. It provides reliable, contactless sensing with excellent resistance to wear, moisture, and contaminants.
Manufacturer: Balluff
Type: Inductive Proximity Switch
Model: BES M18MP-PSC50B-S04G
Order Code: BES04T5
| Sensing Range | 5 mm |
| Size | M18x1 |
| Rated Operating Voltage | 10 / 30 V DC |
| Rated Operating Current | 200 mA |
| Contact | PNP Normally Open (NO) |
| Switching Frequency | 2000 Hz |
| Connection | Connector, M12x1-Male, 3-Pin |
| Housing Material | Brass, Nickel-Free Coated |
| Diameter, Length | 18, 86 mm |
| Protection Class | IP68 |
| Ambient Temperature | -40 ... 85 °C |
