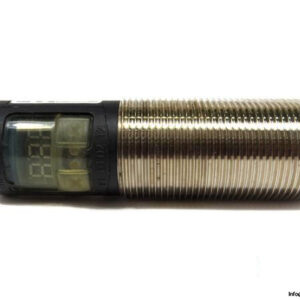

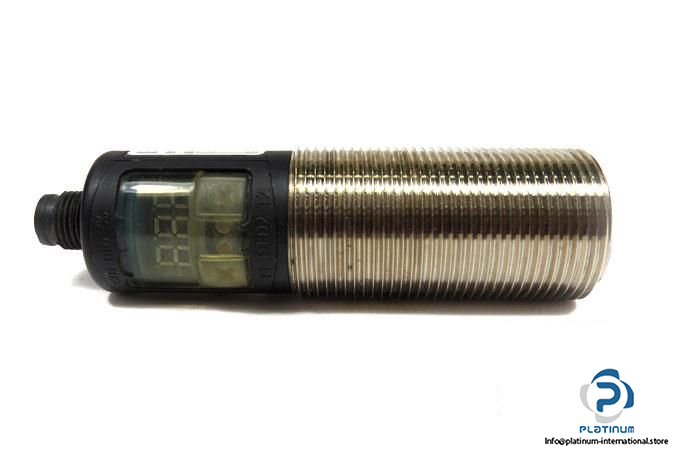

Balluff BUS M30M1-PPX-07/035-S92K Ultrasonic Sensor

Manufacturer: BALLUFF

Type: ULTRASONIC SENSOR

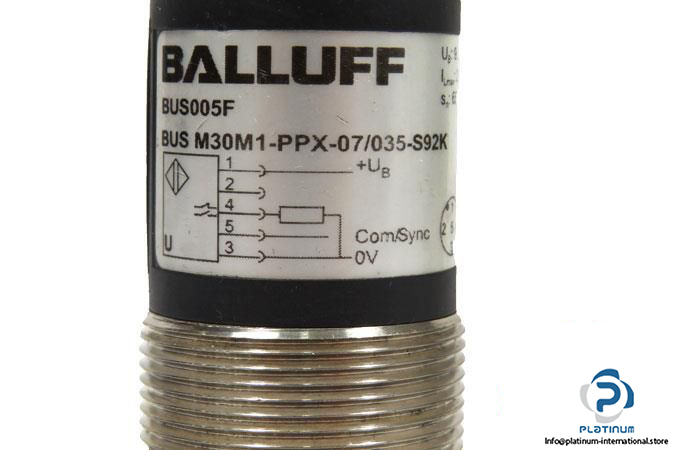

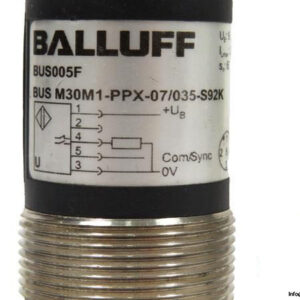

Order Code: BUS M30M1-PPX-07/035-S92K

MRN: BUS005F

Application: Object detection

Sensing Range: 65 … 600 mm

Rated Operating distance: 350 mm

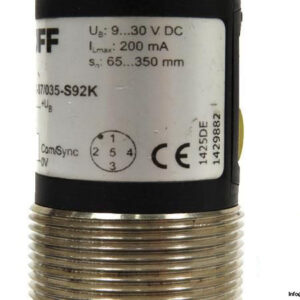

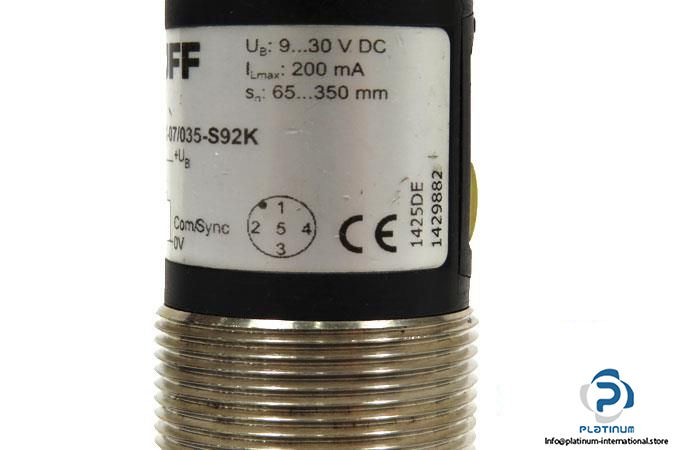

Operating Voltage: 9 … 30 V DC

Switching frequency: 12 Hz

Ultrasonic frequency; 400 KHz

Output current max.: 200 mA DC

Synchronization internal: max. 10 sensors

Electrical design: PNP

Output Function: Normally open/normally closed

Operating mode: Retro-reflector, Reflection light scanner (switching point), Reflection light scanner (window)

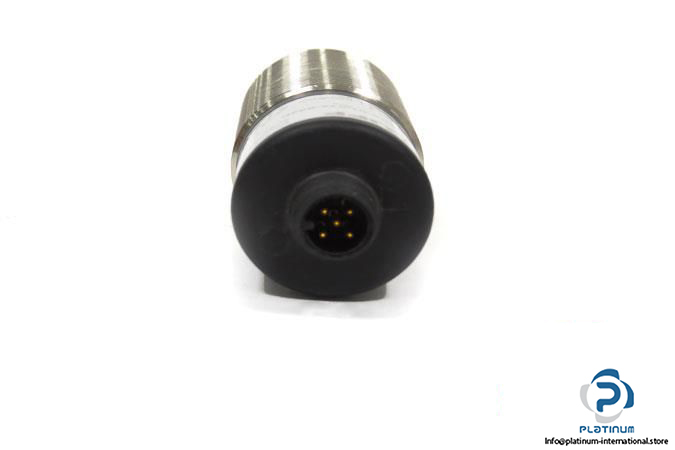

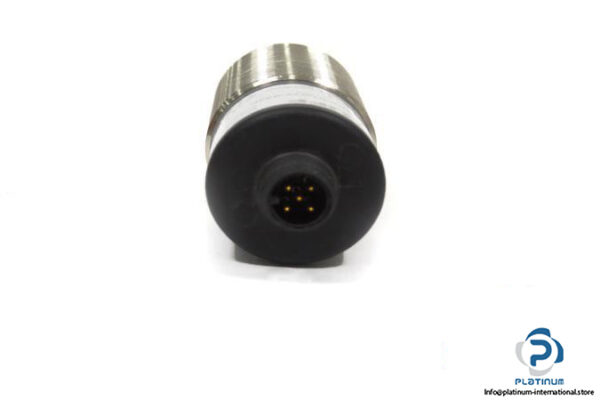

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 30, 94.5 mm

Housing material: Nickel-plated Brass

Sensing face material: PU foam, epoxy resin, glass

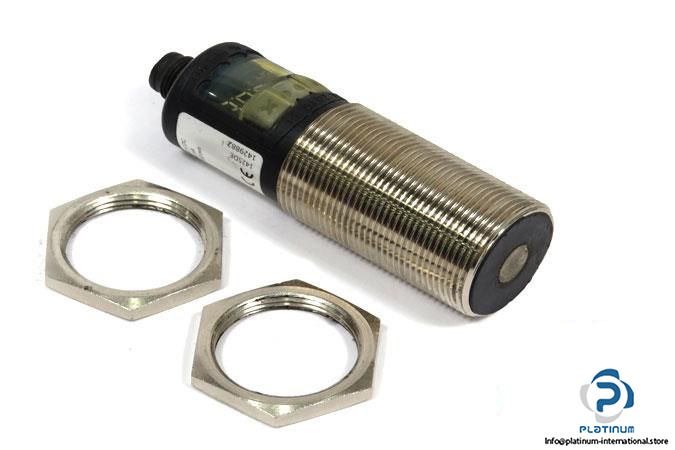

Supplied Accessories: 2 lock nuts

Condition: New
