Banner PD45VP6C200Q Laser Sensor
Used
In stock1 unitReady to ship
144,44$
Convergent Laser Sensor
BANNER PD45VP6C200Q convergent laser sensor with 203 mm focal point, visible red laser beam, complementary PNP outputs, IP54/NEMA 4X protection, and M12 pigtail quick disconnect for reliable industrial use.24XBannerClassConvergentHousingIndustrialIP54laserNemaOutputPD45PD45VP6C200QPNPProximityRectangularRedSensorVisible
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

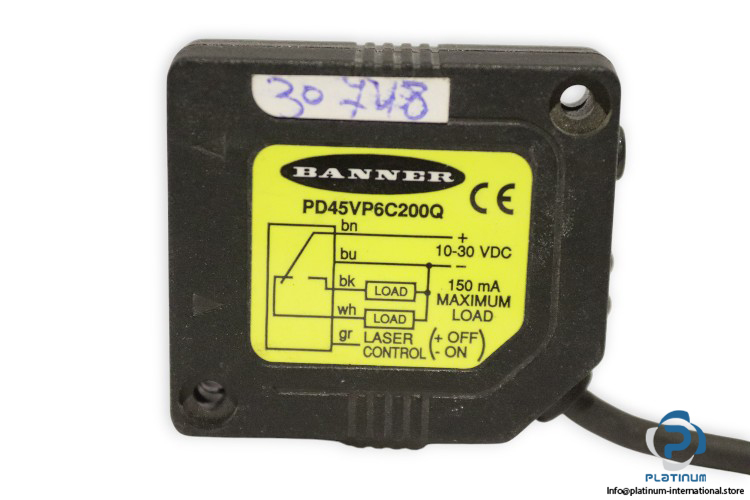

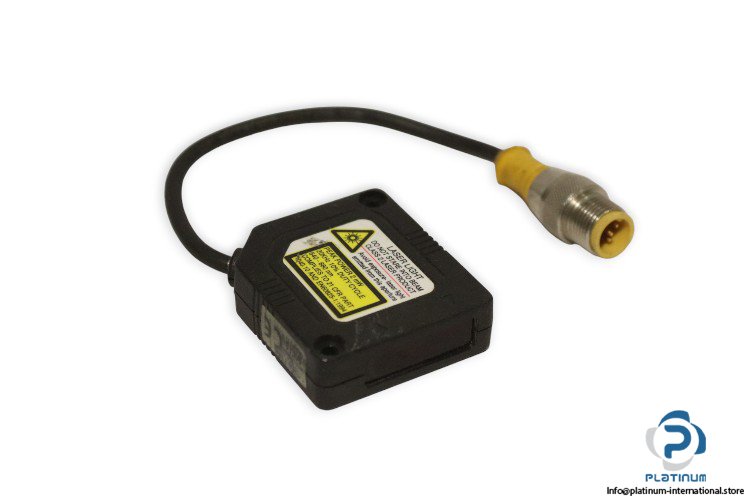

BANNER PD45VP6C200Q Convergent Laser Sensor
The BANNER PD45VP6C200Q is a high-performance convergent laser sensor designed for precise proximity detection. With its visible red laser beam, compact rectangular housing, and reliable PNP outputs, it delivers accurate and repeatable results for industrial applications.
Manufacturer: BANNER
Type: Convergent Laser Sensor
Model: PD45VP6C200Q
Series: PD45
| Focal Point | 203 mm |
| Input | 10-30 V DC |
| Outputs | Complementary PNP |
| Connection | 150 mm (6 in) M12 Pigtail QD |
| Sensing Beam | Visible Red Laser |
| Cable Length | 0.15 m |
| IP Rating | IP54 |
| NEMA / UL Type Rating | NEMA 4X |
| Supply Voltage | 10-30 V DC |
| Item Status | Inactive |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Convergent |
| Housing Style | Rectangular |
| Primary Housing Material | Thermoplastic |
| Laser Classification | Class 2 |
| Small Visible Spot | Laser |
| Input Output | Discrete |
| Max Sensing Distance | 203 mm |
| Outputs | PNP |
| Quick Disconnect Type | M12 |
| Operation | Light/Dark Operate |
| Min Operating Temp | -10 °C |
| Max Operating Temp | 45 °C |
| Output Response Time | 0.2 ms |
| Sensing Beam Wavelength | 650 nm |
| Delay at Power-up | 1000 ms |
| Repeatability | 50 µs |
| Number of Pins | 5 |
| Max Operating Relative Humidity | 90% @ 50 °C |
| Lens Material | Acrylic |
| Adjustments | Potentiometer |
| Indicator | LEDs |
