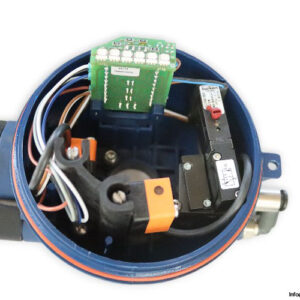

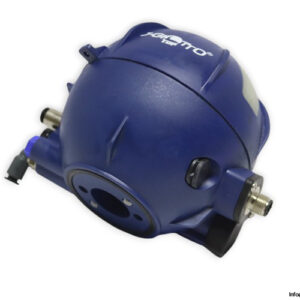

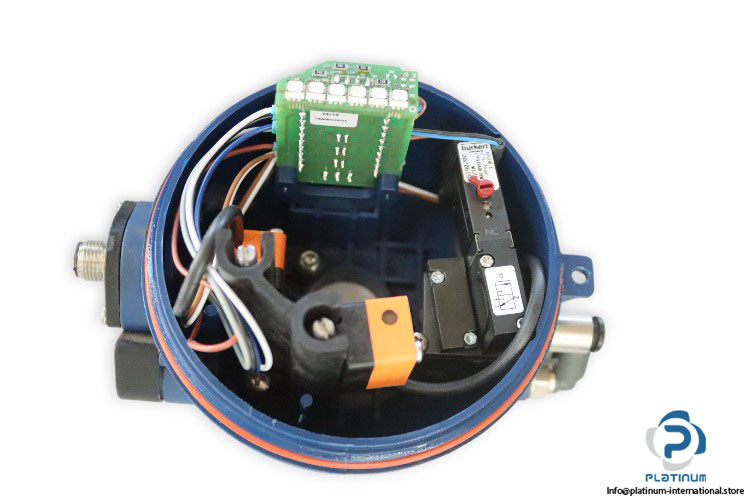

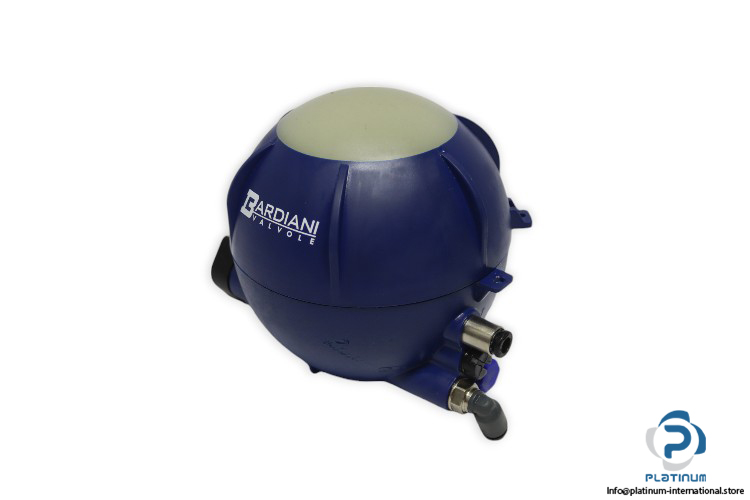

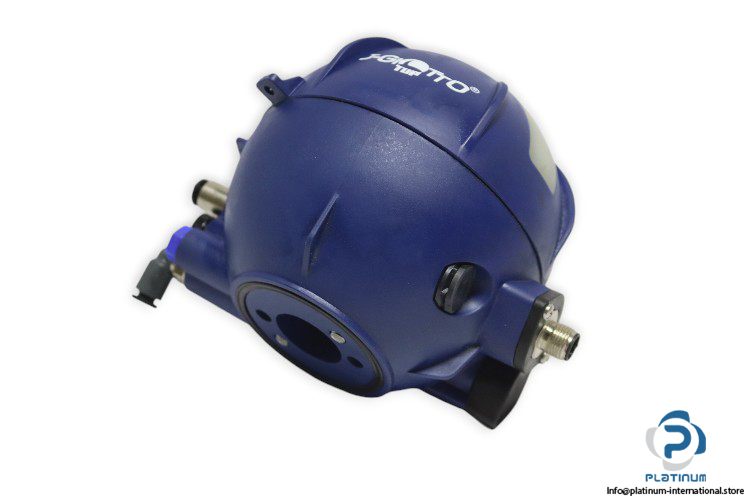

Bardiani Valvole M48 Control Unit
Manufacturer: BARDIANI VALVOLE
Type: Control Unit
Model: M48

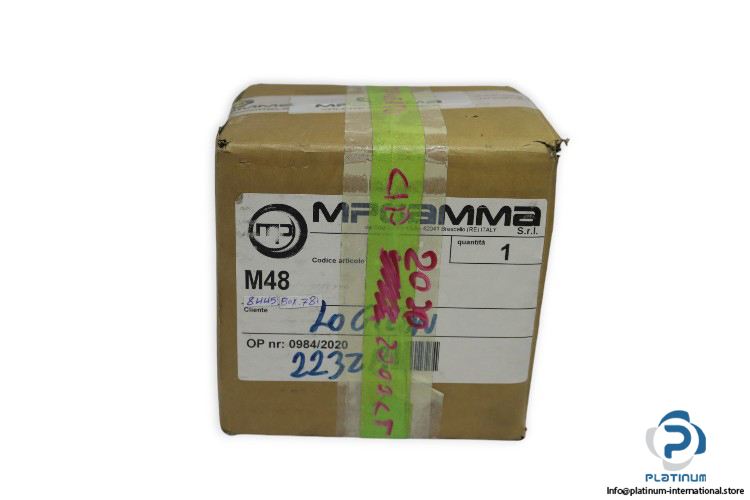

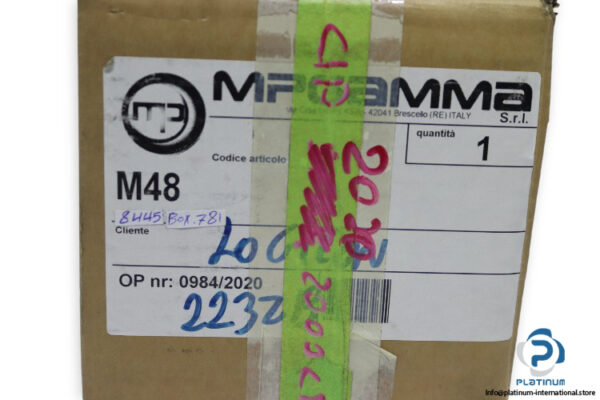

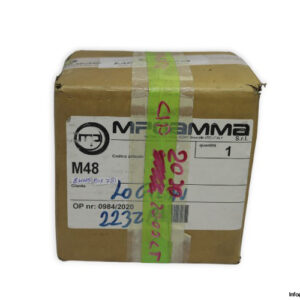

OP No.: 0984/2020
Air pressure supply: 6 … 7 bar
Air supply and vent connections: 1/8”
Port size: 6 mm
Protection class: IP67
Operating temperature: -10°C to +50°C

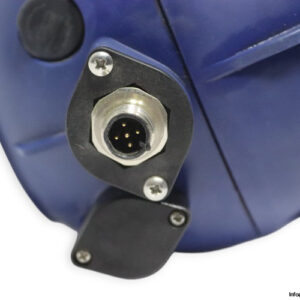

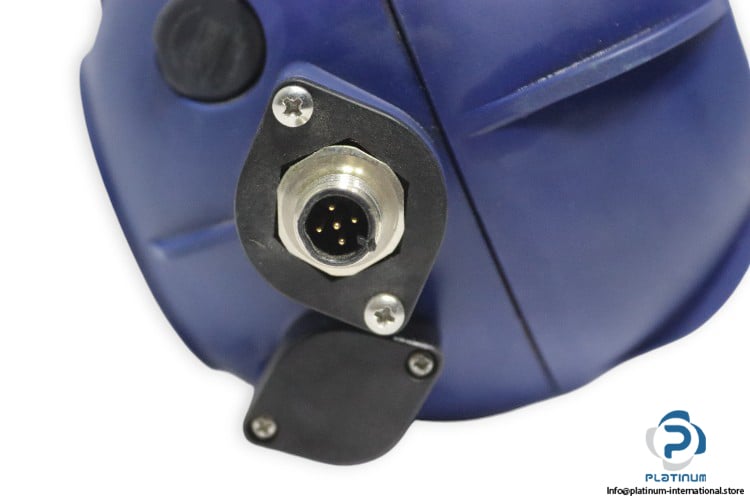

Electrical connections: M12 5-pole connector

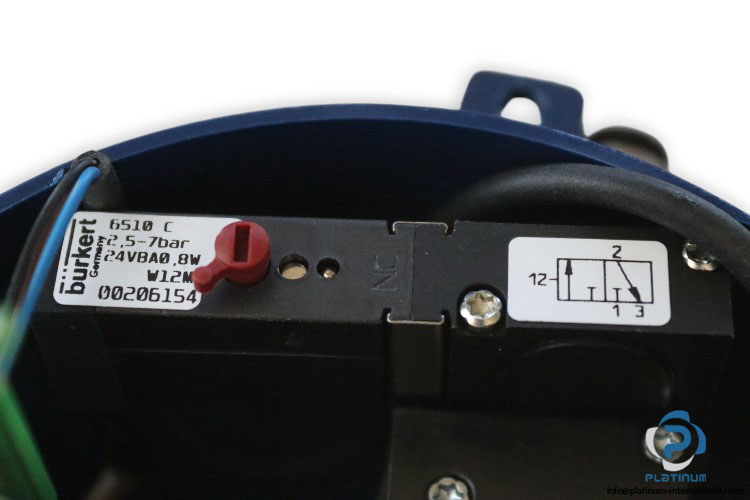

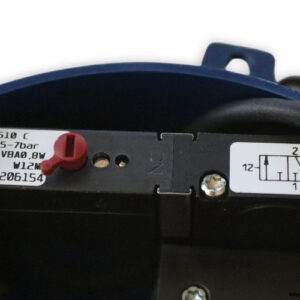

ATTACHMENT: BURKERT 00206154 MAGNETIC VALVE
Manufacturer: BURKERT
Type: MAGNETIC VALVE
Model: 00206154
Orifice: DN2.5 mm
Body material: PPS, PA
Seal material: NBR, FKM
Medium: Lubricated, oil free, dry compressed air
Ambient temperature: 0 … 55°C
Port connection: Flange for MP01
Voltage tolerance: ±10 %
Operating voltages: 24 VDC
Nominal power: 0.8 W

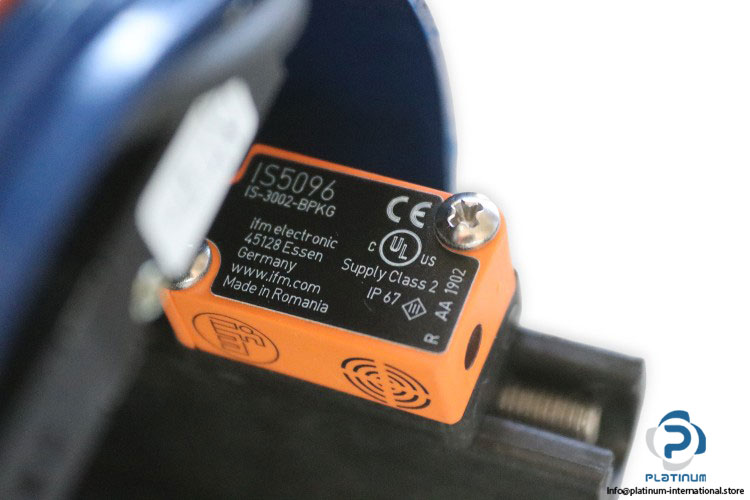

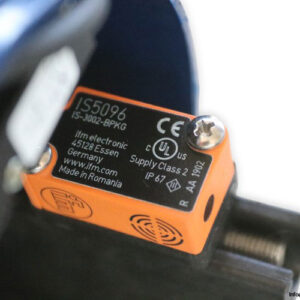

ATTACHMENT: IFM IS5096 INDUCTIVE SENSOR
Manufacturer: IFM
Type: Inductive Sensor
Model: IS5096
Electrical design: PNP
Output function: normally open
Sensing range: 2 mm
Dimensions: 28 x 10 x 16 mm
Operating voltage: 10…30 DC; V
Current consumption: 15 mA
Max. voltage drop switching output: 2.5 DC[V]
Permanent current rating of switching output: 200 mA
Switching frequency: 800 [Hz]
Ambient temperature: -25…80 °C
Protection: IP 67
