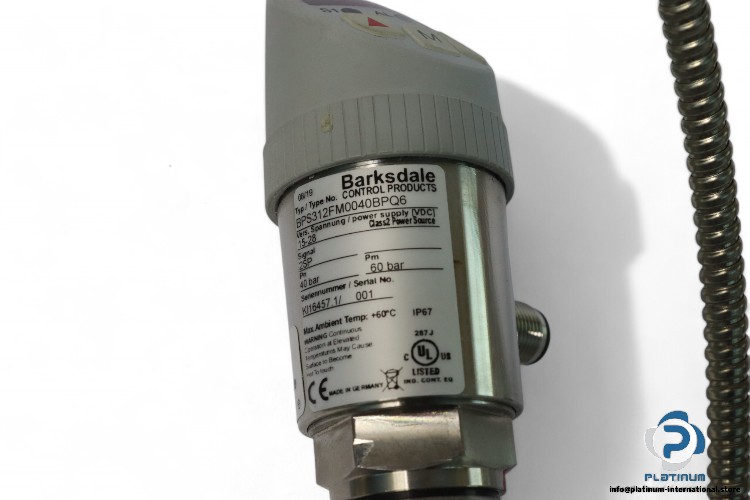

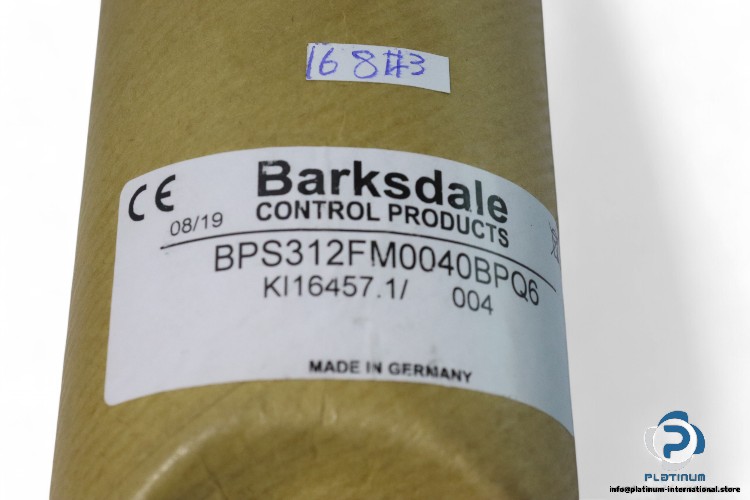

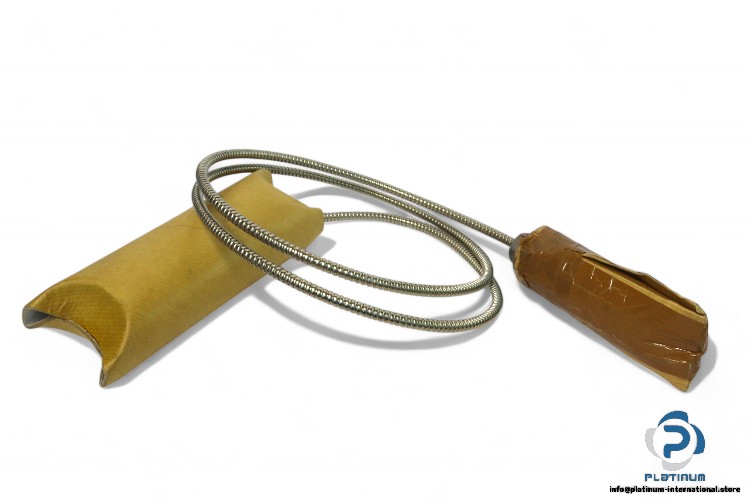

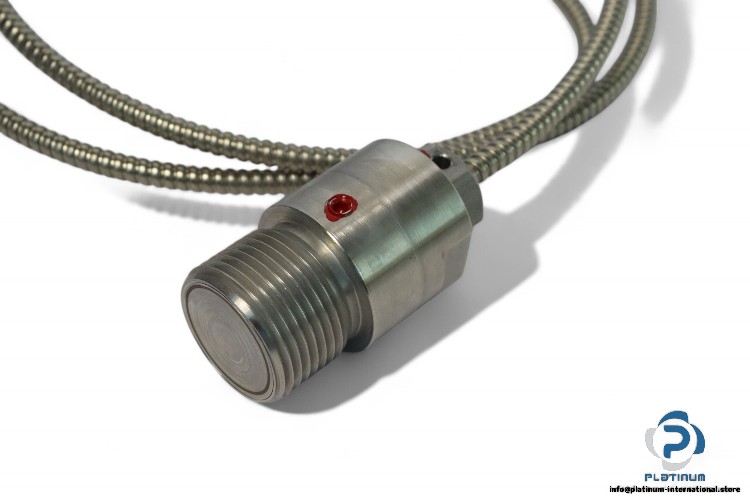

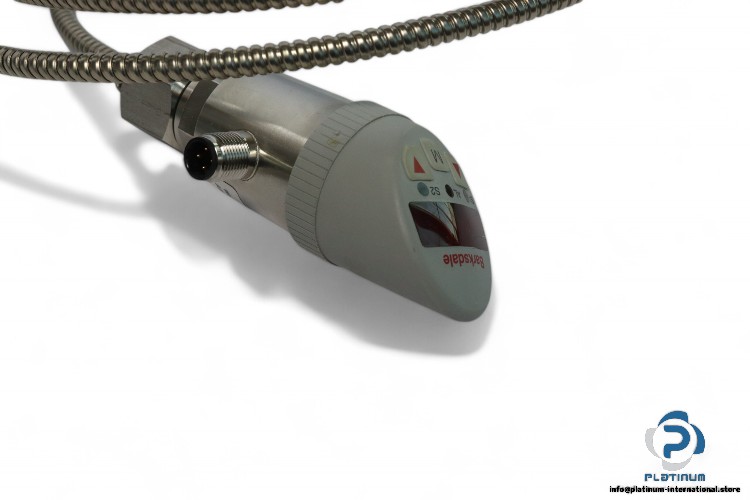

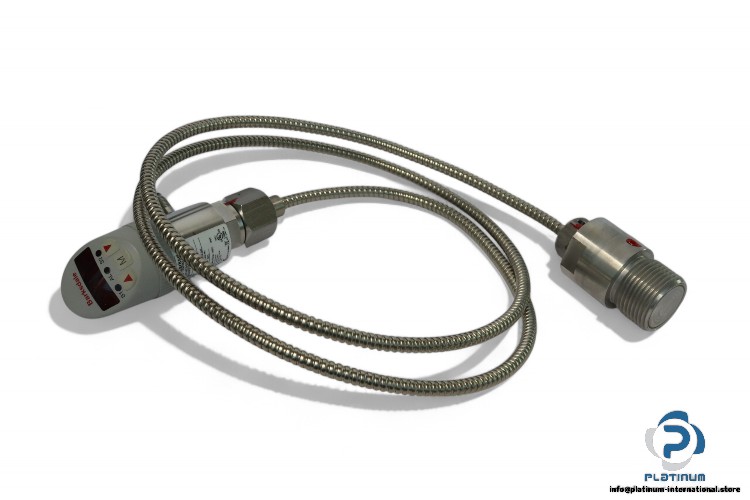

Barksdale BPS312FM0040BPQ6 Electronic Pressure Switch

Manufacturer: Barksdale
Type: ELECTRONIC PRESSURE SWITCH
Model: BPS312FM0040BPQ6

Sensor element: Ceramic sensor (standard)
Operating Pressure: 40-60 bar
Range Pressure: absolute  0 – 150 psia
Display: 4-digit 14-segment LED display, red, digit height 9 mm
Scanning rate: 2 ms
Power supply: 15 to 28 V DC
Switching output: PNP / NPN
Supply Voltage: 0-10 V DC
Current output: 4-20 mA
Enclosure Rating: IP67
Materials: 304 Stainless steel; brass
Switching frequency: Max. 100 Hz
Electrical connection: Plug M12 x 1, 4-pin / 5-pin / 8-pin
Operating elements: 3 easy-response push-buttons
Operating Temperature Range: -25…60 °C
Dimensions: 1.6 Ø x 4.4 inches
