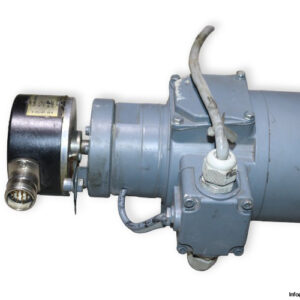

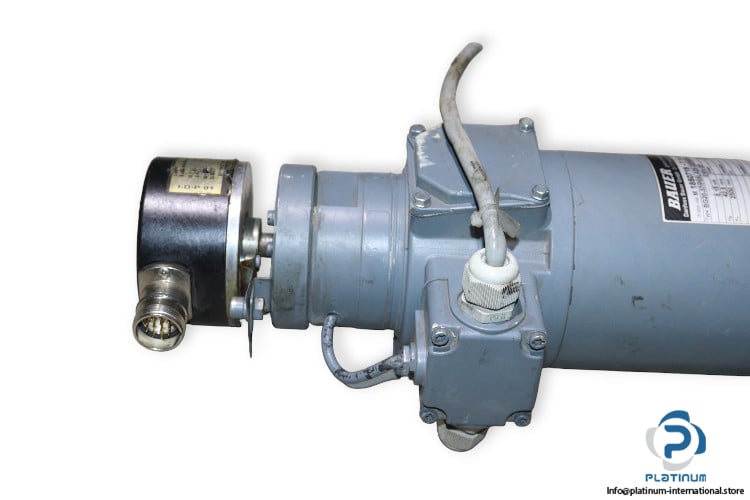

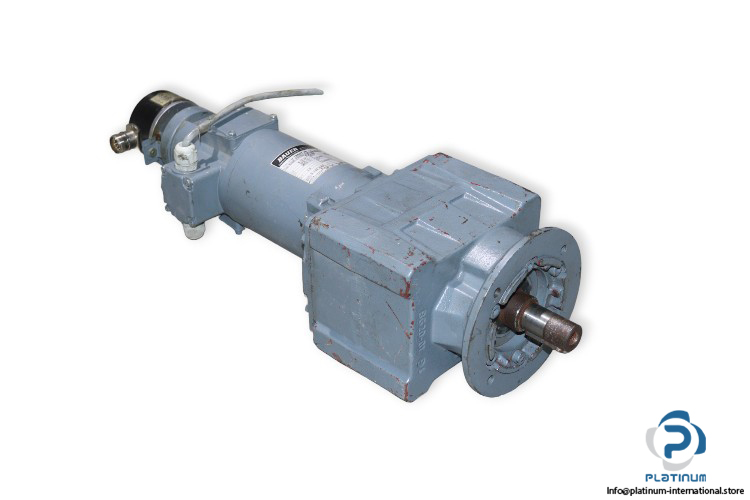

Bauer BG20-37/P05LA25-G/E003B4/EMV-SP Helical Gear Motor

BAUER BG20-37/P05LA25-G/E003B4/EMV-SP HELICAL GEAR MOTOR

The BAUER BG20-37/P05LA25-G/E003B4/EMV-SP Helical Gear Motor offers reliable and efficient performance with a motor power of 0.15 kW and an output speed of 42.5 r/min. It is equipped with an incremental encoder and a robust brake system, ensuring precise control and high operational efficiency in various applications.

Manufacturer: BAUER

Type: Helical Gear Motor

Model: BG20-37/P05LA25-G/E003B4/EMV-SP

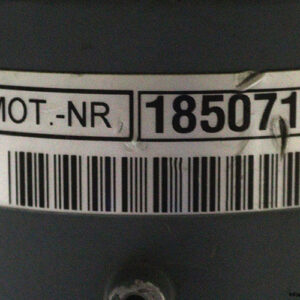

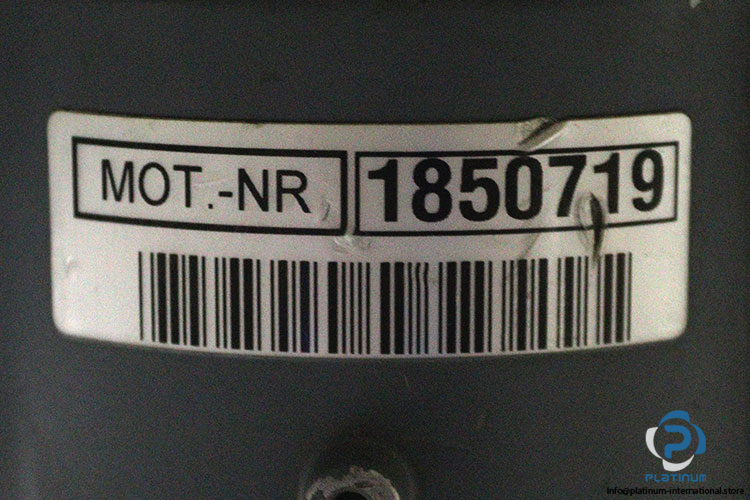

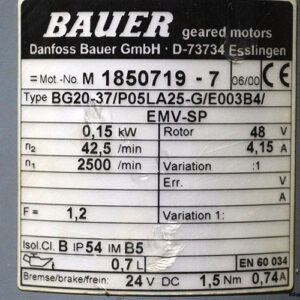

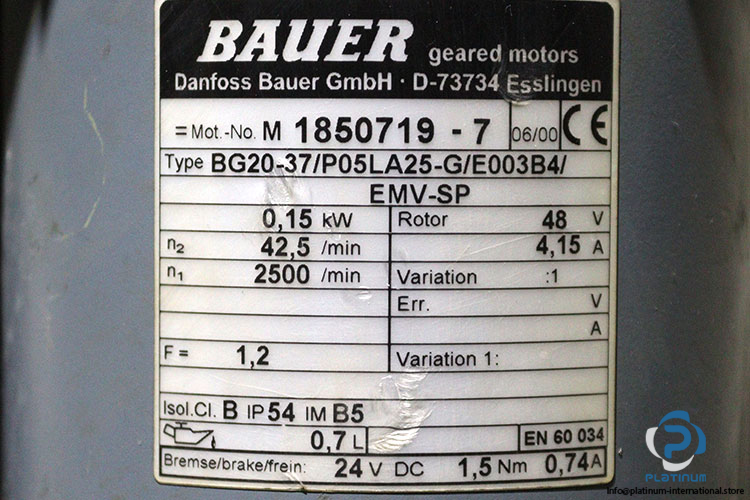

ID No.: M 1850719-7

Technical Specifications

• Input Speed [r/min]: 2500
• Output Speed [r/min]: 42.5
• Motor Power [kW]: 0.15
• Motor Voltage [V]: 48
• Nominal Current [A]: 4.15
• Thermal Class/Enclosure [IP]: B/54
• Lubrication [L]: 0.7
• Brake Voltage: 24 VDC
• Brake Current: 0.74 A
• Brake Torque: 1.5 Nm

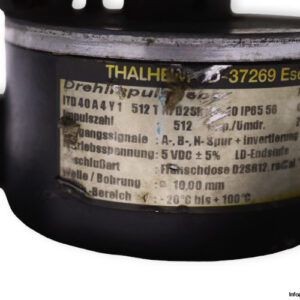

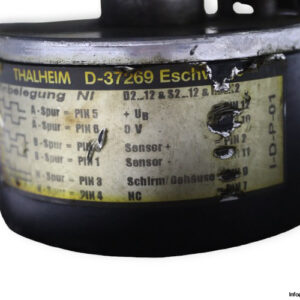

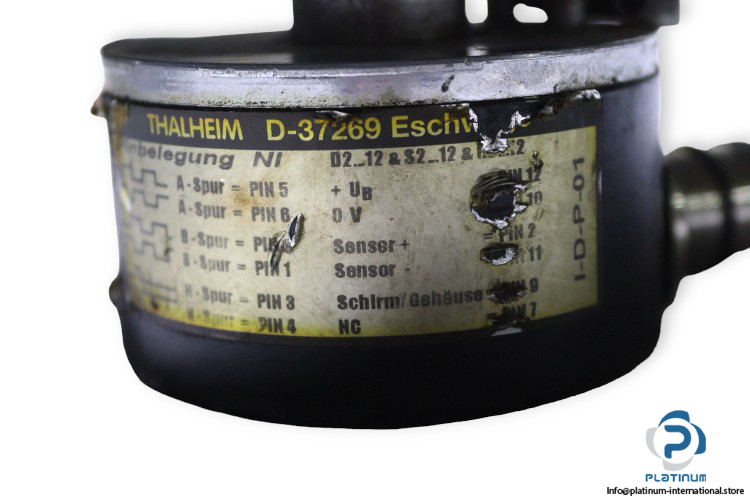

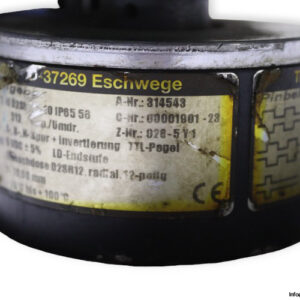

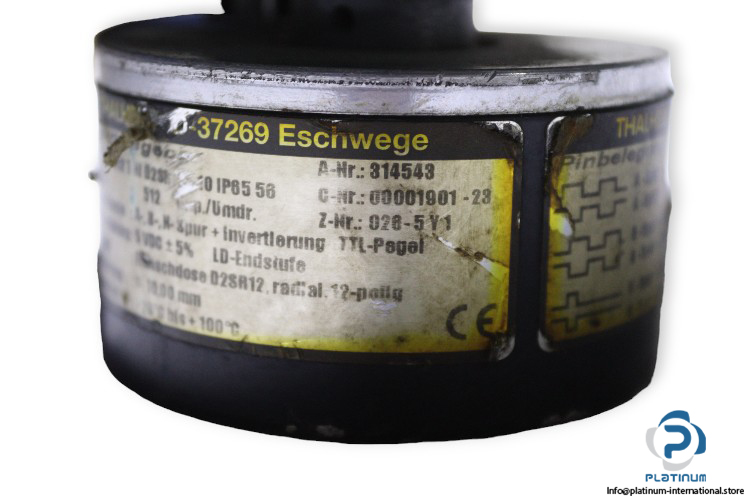

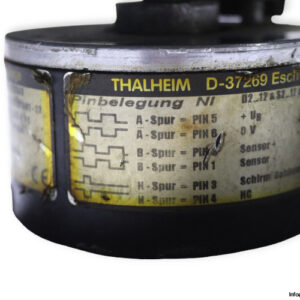

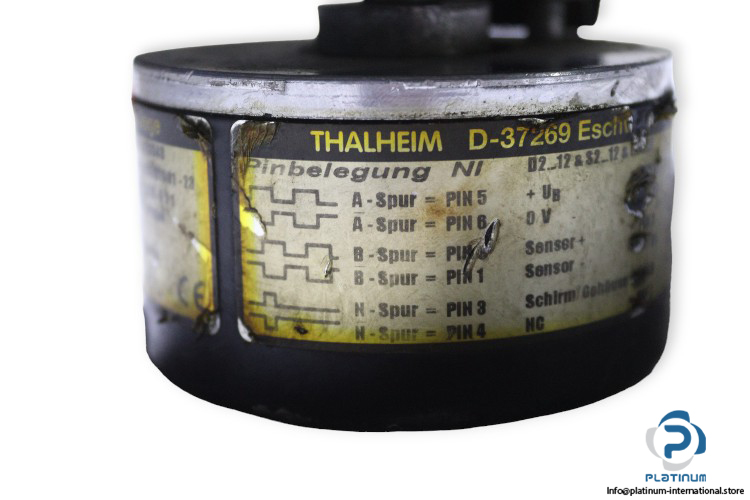

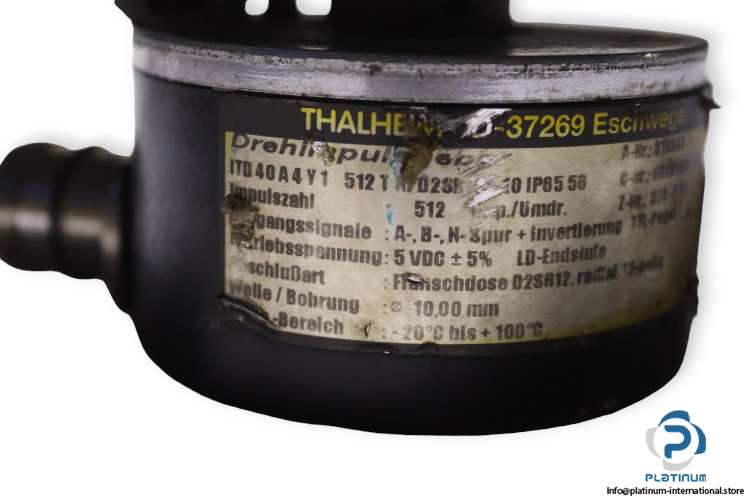

• Attached with: THALHEIM ITD 40 A 4 Y 1 512 T NI D2SR12 E 10 IP65 56 INCREMENTAL ENCODER
• Shaft Diameter: 10 mm
• Voltage Supply: 5 VDC
• IMPULSE: 512 IMP/UMDR
• Type of Connection: Flange socket
• Ambient Temperature: -20 / 100 °C
