Bauer BS02-38H/P04LA32-G/EMV-SP Helical Gear Motor
Used
In stock1 unitReady to ship
helical gear motor
The BAUER BS02-38H/P04LA32-G/EMV-SP Helical Gear Motor is designed for high efficiency with a 43 ratio, 0.12 kW motor power, and 75 r/min output speed, ideal for various industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

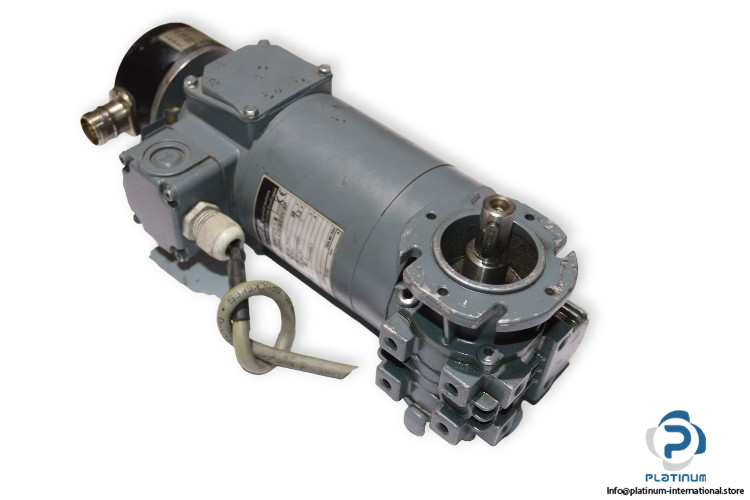

BAUER BS02-38H/P04LA32-G/EMV-SP HELICAL GEAR MOTOR
The BAUER BS02-38H/P04LA32-G/EMV-SP Helical Gear Motor provides high efficiency and precise control for industrial applications. With a ratio of 43, a motor power of 0.12 kW, and an output speed of 75 r/min, it offers reliable performance. It is equipped with an incremental encoder and is ideal for various demanding tasks.

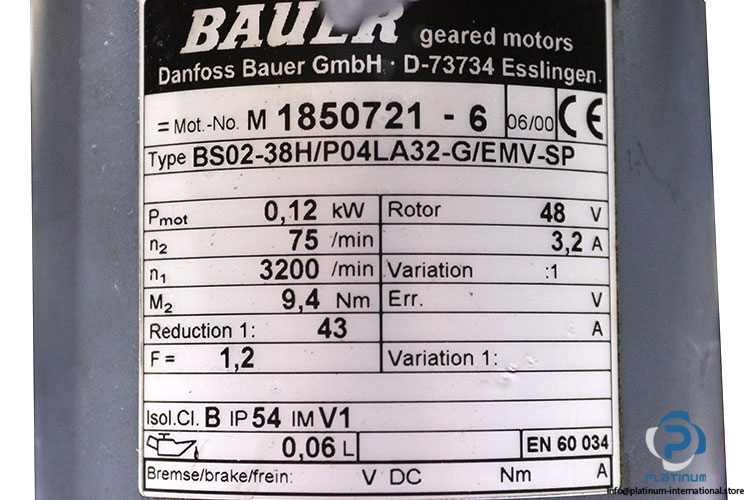

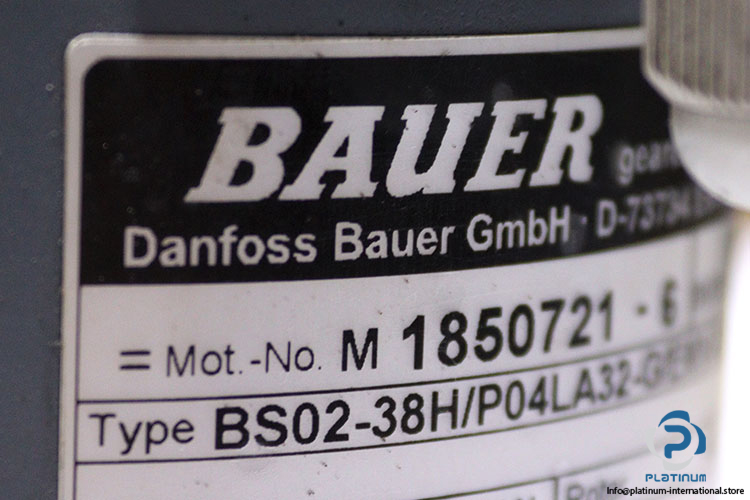

Manufacturer: BAUER
Type: Helical Gear Motor
Model: BS02-38H/P04LA32-G/EMV-SP
ID No.: M 1850721-6
Technical Specifications
- Ratio: 43
- Input Speed [r/min]: 3200
- Output Speed [r/min]: 75
- Motor Power [kW]: 0.12
- Motor Voltage [V]: 48
- Nominal Current [A]: 3.2
- Rated Torque [Nm]: 9.4
- Thermal Class/Enclosure [IP]: B/54
- Lubrication [L]: 0.06

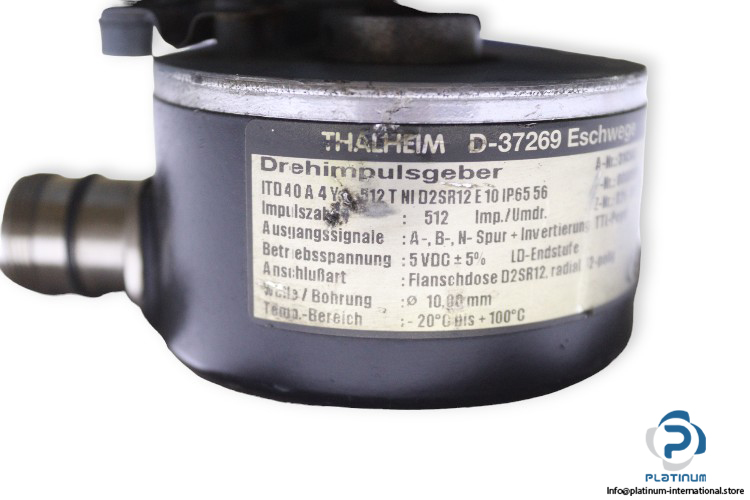

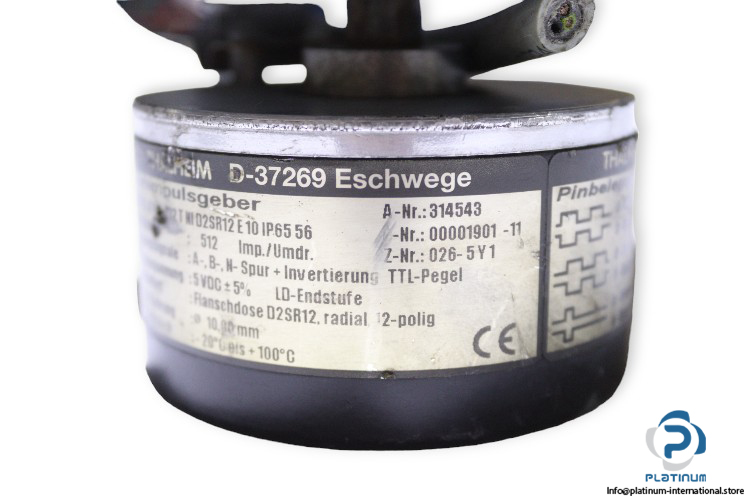

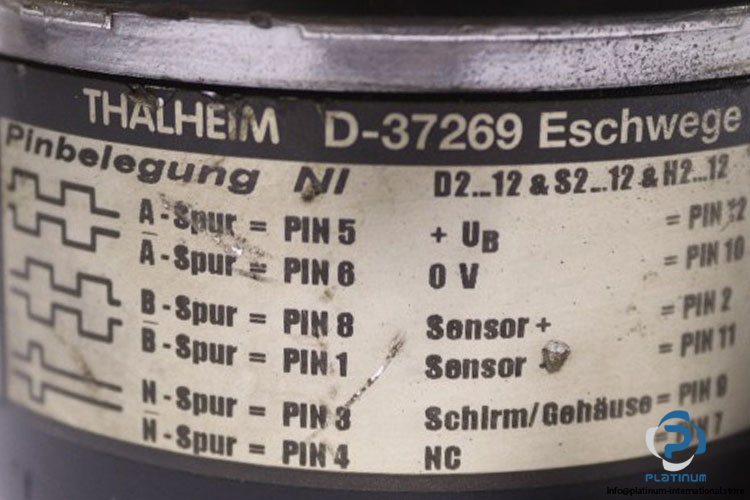

- Attached with: THALHEIM ITD 40 A 4 Y 1 512 T NI D2SR12 E 10 IP65 56 INCREMENTAL ENCODER
- Shaft diameter: 10 mm
- Voltage Supply: 5 VDC
- IMPULSE: 512 IMP/UMDR

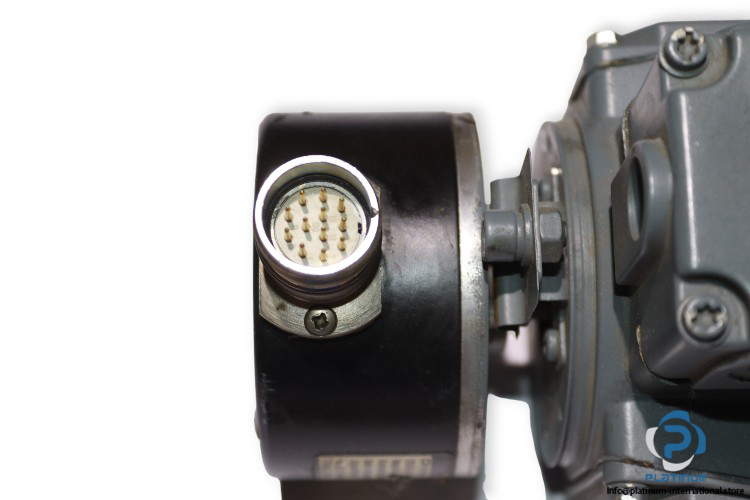

- Type of Connection: Flange socket
- Ambient Temperature: -20 / 100 °C
