Bauknecht RF0,18/4-7 Gear Motor
Used
In stock1 unitReady to ship
Gear Motor
BAUKNECHT RF0,18/4-7 Gear Motor is an efficient and durable industrial motor designed for precision applications. Operating at 380/220V with a rated speed of 1370 rpm and a power output of 0.18 kW, it is equipped with the SPN Schwaben Prazision F56.1 Gearbox featuring a 29:1 ratio for enhanced performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

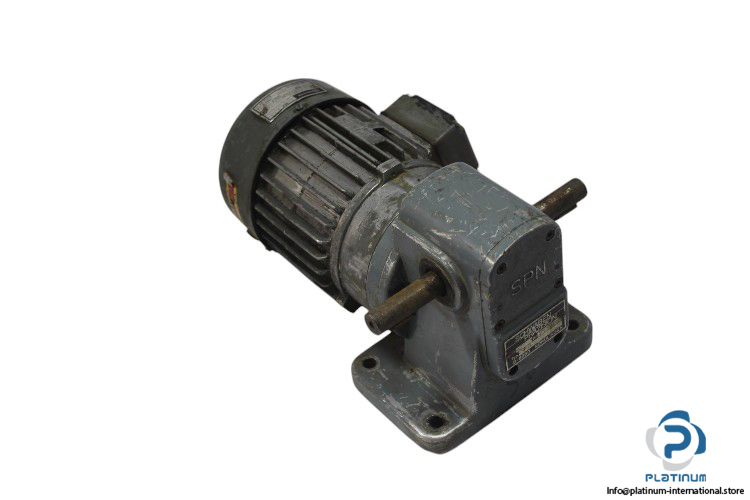

BAUKNECHT RF0,18/4-7 Gear Motor with SPN Schwaben Prazision F56.1 Gearbox
The BAUKNECHT RF0,18/4-7 Gear Motor is a high-performance industrial motor designed for efficiency and durability. Featuring a robust construction and optimal power output, it is suitable for a wide range of mechanical applications. This unit is paired with the SPN Schwaben Prazision F56.1 Gearbox, providing enhanced torque and precision through a 29:1 gear ratio.
- Manufacturer: BAUKNECHT
- Type: Gear Motor
- Model: RF0,18/4-7
- Part No: 714822

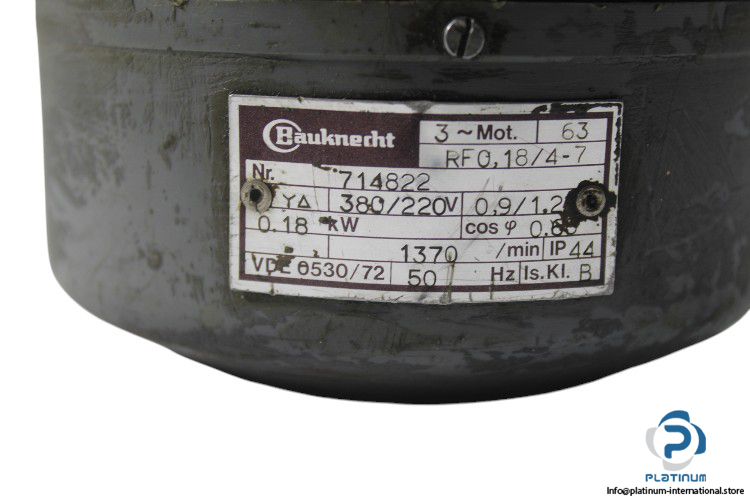

Technical Specifications
- Rated Voltage: 380 / 220 V
- Rated Speed: 1370 rpm
- Rated Frequency: 50 Hz
- Rated Power: 0.18 kW
- Rated Current: 0.9 / 1.2 A
- Power Factor: 0.68
- Protection Class: IP44
- Insulation Class: B

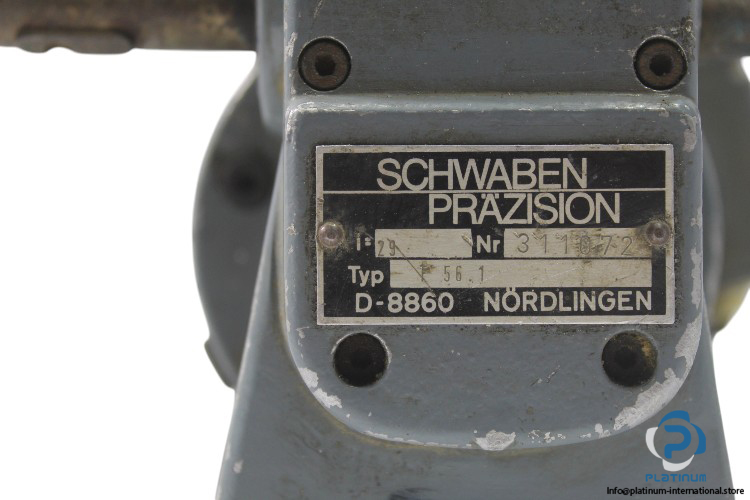

Gearbox Specifications
- Manufacturer: SPN, Schwaben Prazision
- Type: Gearbox
- Model: F56.1
- Part No: 311072
- Ratio: 29
