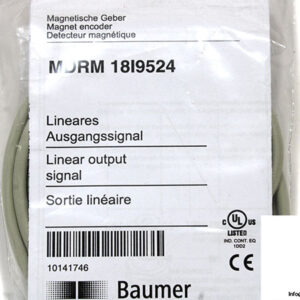

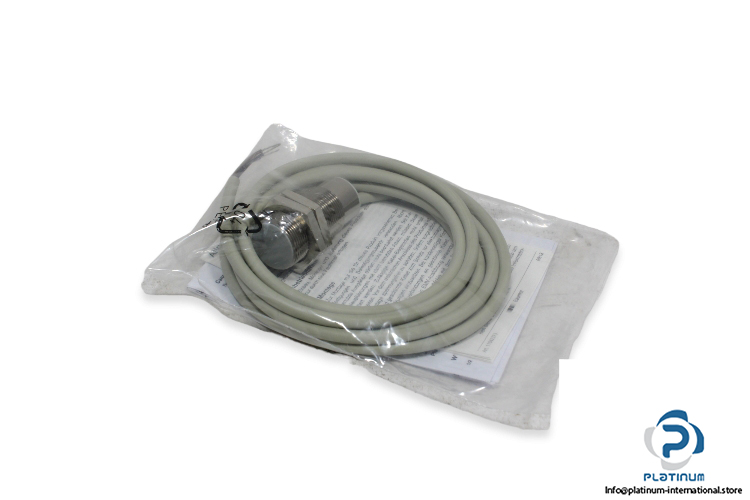

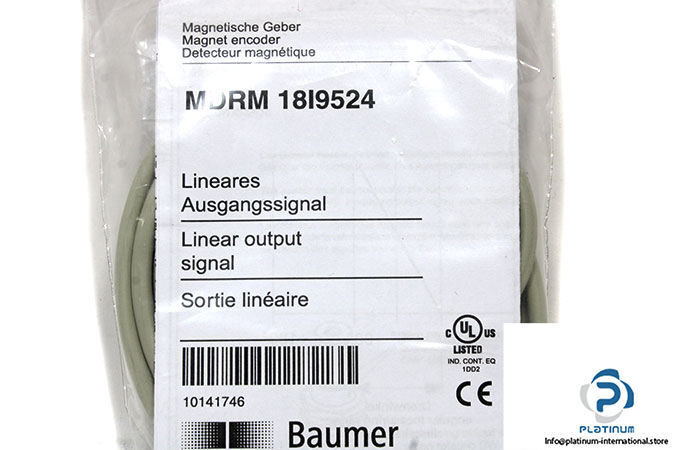

Baumer 18I9524 Magnetic Angle Sensor
Manufacturer: Baumer
Type: Magnetic Angle Sensor
Model: 18i9524
Application: Magnetic Sensors
Working Distance (Max): 5 mm, With Magnet Rotor MSFS
Response Time: 4 ms
Voltage Supply Range: 15 … 30 V DC
Current Consumption: 30 Ma
Output Signal: 4 … 20 mA
Angular Range: 120° Linear
Load Resistance: 500 Ohm/15 V DC … 1000 Ohm/30 V DC
Material Sensing Face: PBTP
Protection Class: IP 67
Connection: Cable 2 m, 3-Wire
Diameter, Length: M18, 40 mm
Temperature: -40 … 85 °C
