Baumer BAV 1G.24K4096-C6-5 Absolute Single Turn Shaft Encoder
Used
In stock1 unitReady to ship
166,66$
Absolute Single Turn Shaft Encoder
BAUMER BAV 1G.24K4096-C6-5 “ 12-bit, 10“30 VDC encoder with 6 mm shaft, IP65 protection, and 2 m radial cable for industrial applications.12-bit1G.24K4096-C6-5AbsoluteBaumerBAVControlEncoderFeedbackIndustrialIP65MotionOutputPush-PullSensorshaftSingleTurn
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

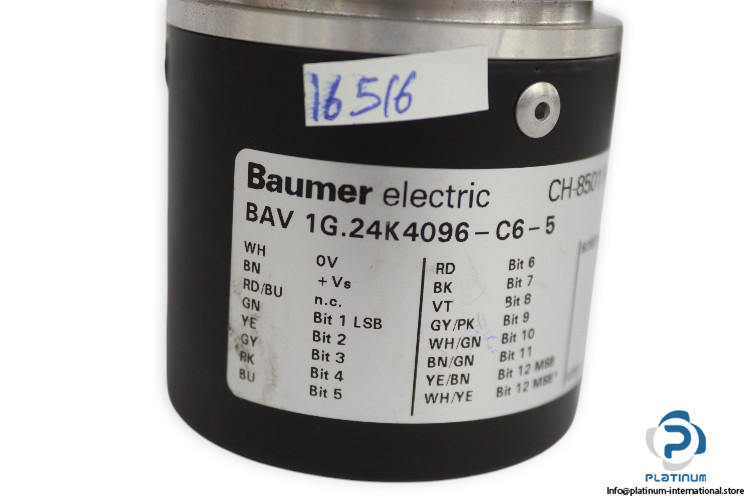

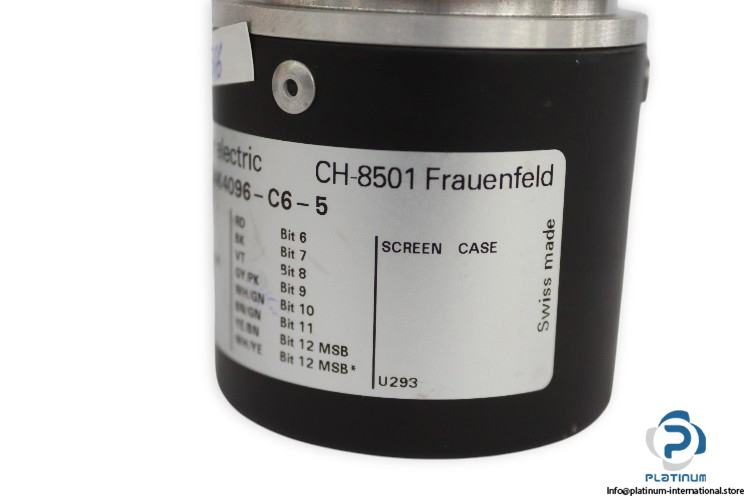

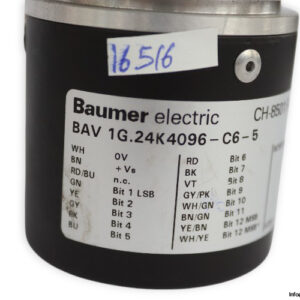

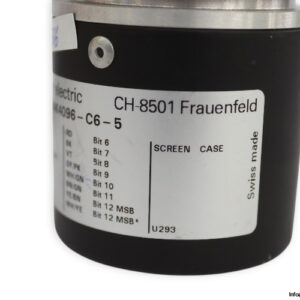

BAUMER BAV 1G.24K4096-C6-5 Absolute Single Turn Shaft Encoder
The BAUMER BAV 1G.24K4096-C6-5 is a high-resolution absolute single-turn shaft encoder built for precision feedback in industrial automation and motion control systems. With a 12-bit resolution (4096 positions), it ensures accurate and repeatable position detection per revolution. It operates within a voltage range of 10“30 VDC and features a push-pull output with short-circuit protection. The encoder’s IP65-rated aluminum housing, 6 mm shaft, and 2-meter radial cable make it a reliable choice for harsh environments and demanding applications.
- Manufacturer: BAUMER
- Type: Absolute Single Turn Shaft Encoder
- Model: BAV 1G.24K4096-C6-5
Technical Specifications:
- Voltage Range / Output: 10“30 VDC, push-pull, short-circuit protection
- Max. Supply Current: 70 mA (at 24 VDC)
- Resolution: 12 bit (4096 positions)
- Max. Switching Frequency: 50 kHz
- Protection Rating: IP65
- Shaft Diameter: 6 mm

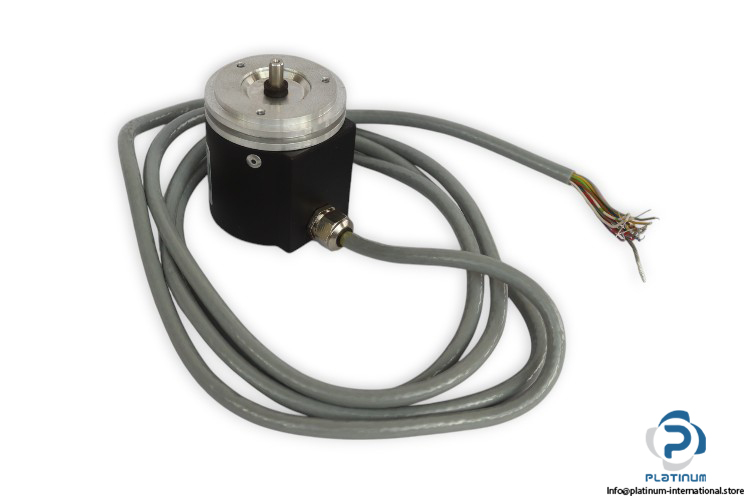

- Connection: 2 m radial cable
- Housing Material: Aluminum
- Ambient Temperature: -20°C to +85°C
