Baumer Electric Fzam 12P1104/S14 Diffuse Sensor With Intensity Diffrence
Used
In stock1 unitReady to ship
Baumer Electric Diffuse Sensor FZAM 12P1104/S14 with a sensing range of 30 to 200 mm, operating voltage of 10 / 30 V DC, and a max. output current of 200 mA. Designed for high precision with a potentiometer for sensitivity adjustment.
+GF+1030AdjustmentApplicationsBaumerbrassConnectordcDiffusElectricIndustrialIP65LightM12NickelOperateOperatingOutputPlatedPNPPotentiometerProtectionRangeresponseSensingsensitivitySensorTemperatureTimeV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

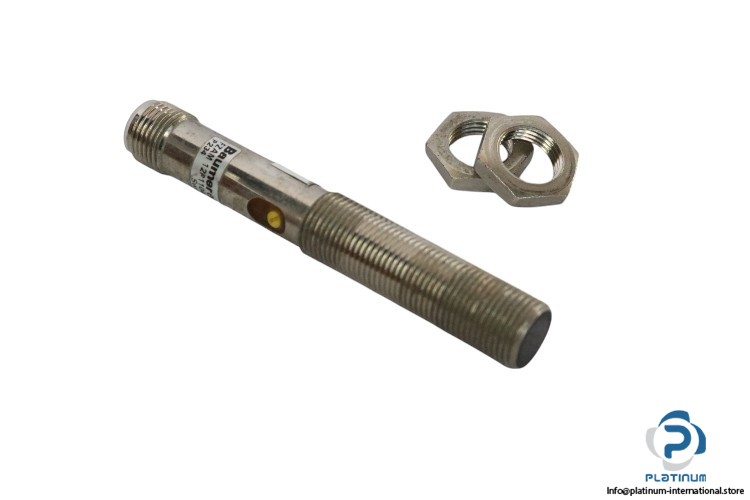

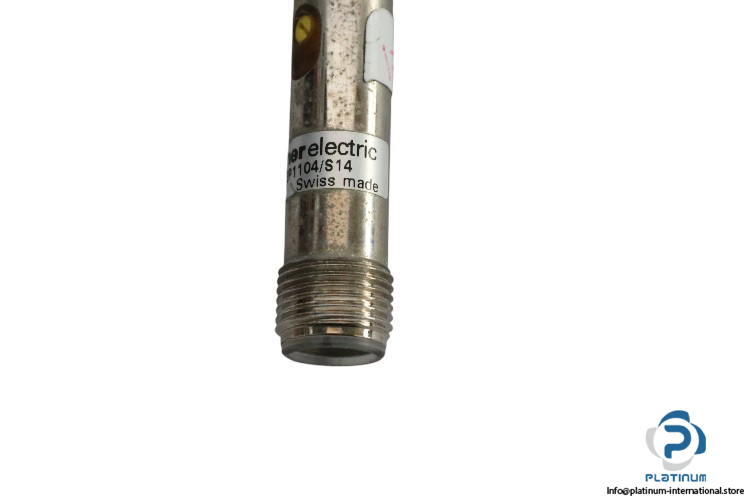

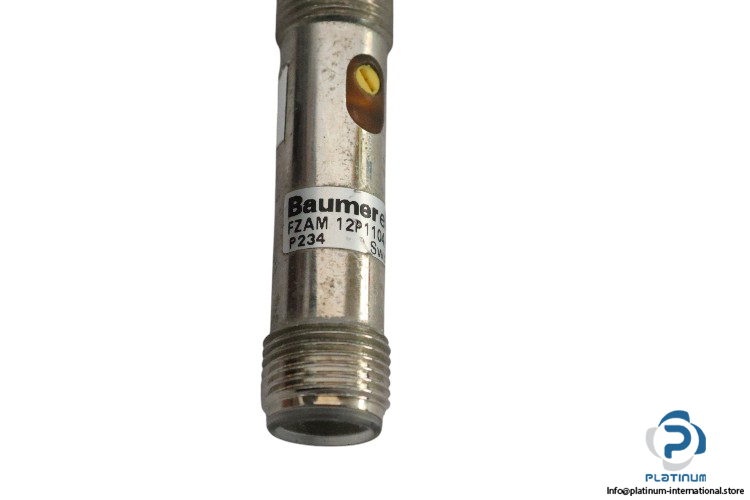

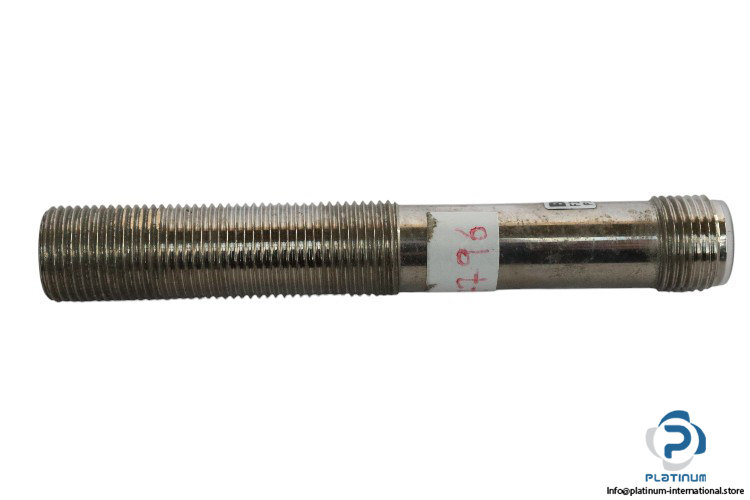

Baumer Electric Diffuse Sensor FZAM 12P1104/S14
Baumer Electric Diffuse Sensor FZAM 12P1104/S14 is designed for high-precision applications, offering a sensing range from 30 to 200 mm. With a PNP output and light operate function, it provides reliable performance and sensitivity adjustments through a potentiometer, making it ideal for use in demanding industrial environments.
- Manufacturer: Baumer Electric
- Type: Diffuse Sensor with Intensity Difference
- Model: FZAM 12P1104/S14
- Part No.: P234
Technical Data:
- Sensing Range: 30 to 200 mm
- Operating Voltage: 10 / 30 V DC
- Current Consumption Typ.: 24 mA
- Output Current: Max. 200 mA
- Electrical Design: PNP
- Output Function: Light operate
- Sensitivity Adjustment: Potentiometer
- Response Time: Max. 1 ms
- Connector Type: M12, 4-pin
- Dimensions: M12 x 81 mm
- Material: Brass nickel plated
- Protection Degree: IP65
- Operating Temperature: -25 to 65°C
More From Baumer electric
Used
Baumer electric

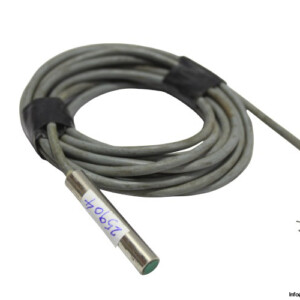

Baumer Electric IFR 09.24.35 Inductive Proximity Sensor
