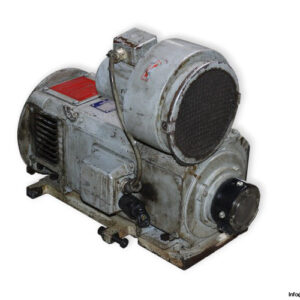

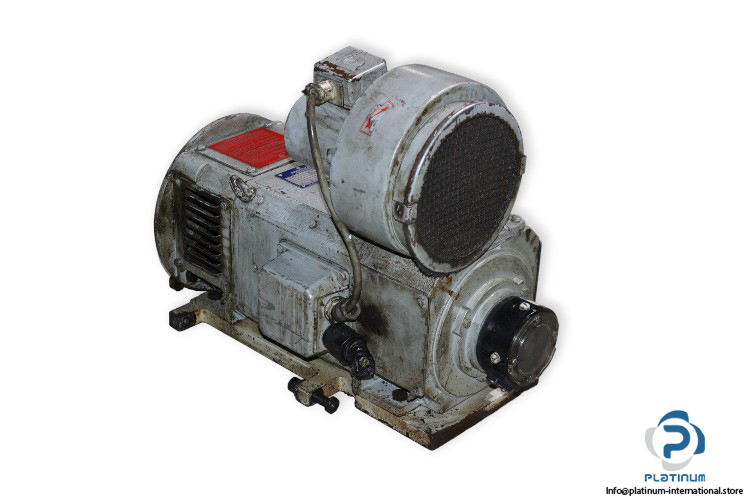

Baumuller Gnaff 100 MV DC Motor

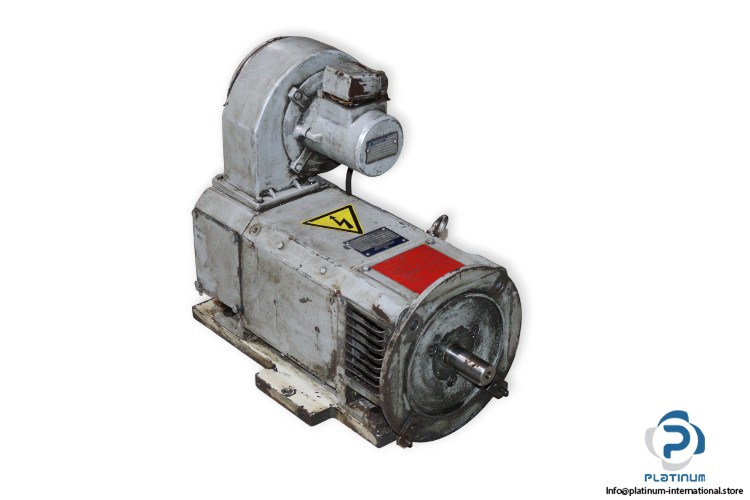

Baumuller GNAFF100MV DC Motor with GHTS42 Encoder & Baumuller DF56-2A AC Motor

The **Baumuller GNAFF100MV DC Motor** offers high performance with a rated power of 9.2 kW and a wide range of rated speeds, providing optimal efficiency across various industrial applications. Paired with the **Baumuller GHTS42 Encoder**, this motor provides precise feedback for controlled operation. Additionally, the **Baumuller DF56-2A AC Motor** ensures smooth operation in demanding conditions with a rated power of up to 0.12 kW.

Manufacturer: Baumuller

Type: DC Motors

Model: GNAFF100MV

Part No.: 89100461

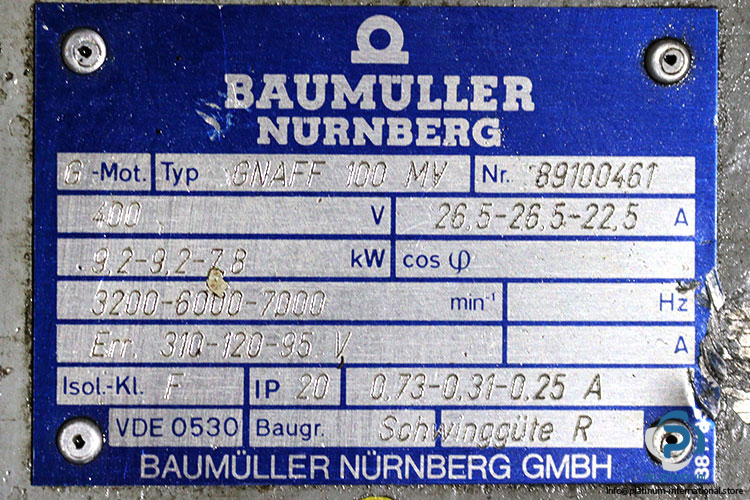

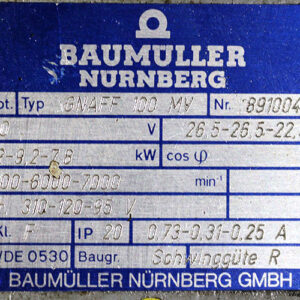

Technical Data (DC Motor – GNAFF100MV):

• Rated Current [A]: 26.5-26.5-22.5
• Rated Voltage [V]: 400
• Rated Power [kW]: 9.2-9.2-7.8
• Rated Speed [min-1]: 3200-6000-7000
• Voltage Em. [V]: 310-120-95
• Current Em. [A]: 0.73-0.31-0.25
• Protection Class [IP]: 20
• Thermal Class: F
• Attachment: Baumuller GHTS 42 Encoder

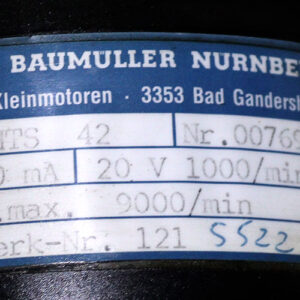

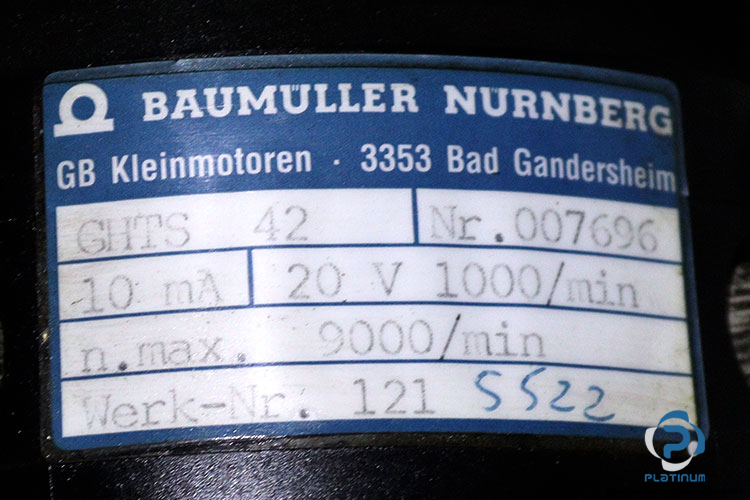

Technical Data (Encoder – GHTS42):

• Constant Voltage [V/min-1]: 20
• Current: 10 mA
• Max. Speed [rpm]: 9000

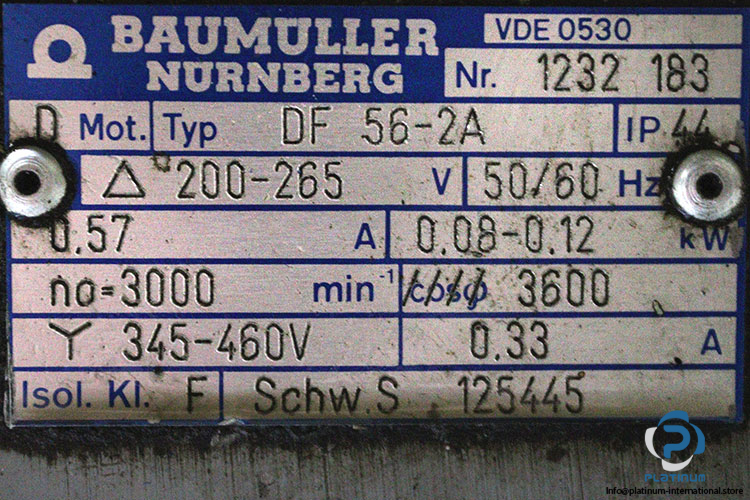

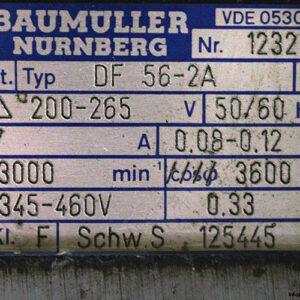

Technical Data (AC Motor – DF56-2A):

• Rated Current [A]: 0.57 / 0.33 Delta / Star
• Rated Voltage [V]: 200-265/345-460 Delta / Star
• Rated Power [kW]: 0.08-0.12 Delta
• Stall Speed [min-1]: 3000
• Max. Speed [min-1]: 3600
• Frequency [Hz]: 50/60
• Protection Class [IP]: 44
• Thermal Class: F
