BAUTZ E642B-MGB-K Permanent Magnet DC Servomotors

Name: BAUTZ E642B-MGB-K Permanent Magnet DC Servomotors
SKU: 981027
Availability: LimitedAvailability

bautz-e642b-mgb-k-permanent-magnet-dc-servomotors-1

bautz-e642b-mgb-k-permanent-magnet-dc-servomotors-2

bautz-e642b-mgb-k-permanent-magnet-dc-servomotors-3

Used

In stock1 unitReady to ship

PERMANENT MAGNET MOTOR

High-efficiency permanent magnet motor by Bautz delivering 275 W power, up to 4500 rpm speed, and 0.72 Nm stall torque ” built for precision and endurance in industrial environments.

SKU

981027

Category

Servo Motors

Condition

Used

275 4000 Bautz Class dc Drive E642B-MGB-K F High Industrial Insulation IP44 Magnet motor Permanent Precision Rated rpm Torque W

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

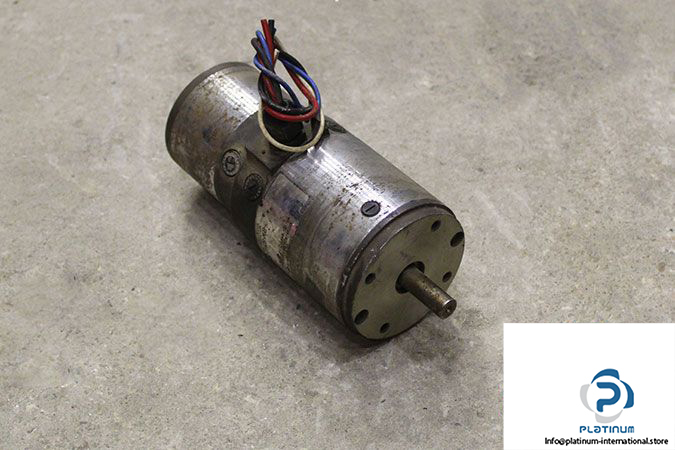

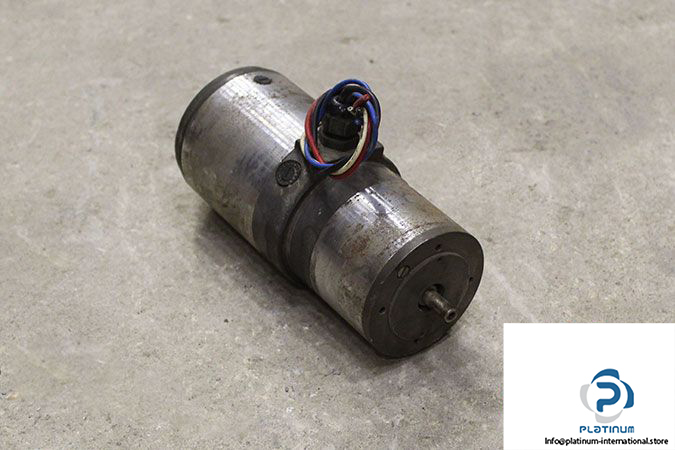

BAUTZ E642B-MGB-K PERMANENT MAGNET MOTOR

The Bautz E642B-MGB-K is a high-performance permanent magnet motor engineered for demanding industrial applications. It offers robust torque delivery, high-speed operation, and efficient thermal handling in a compact and durable design.

Manufacturer: Bautz

Type: Permanent Magnet

Model: E642B-MGB-K

Rated Power	275 W
Stall Torque	0.72 Nm
Rated Torque	0.67 Nm
Stall Current	5.7 A
Rated Current	5.3 A
Rated Speed	4000 rpm
Max. Speed	4500 rpm
Torque Constant	0.13 Nm/A
Voltage Constant	13.4 krms
Ambient Temperature	0 / 40 °C
Insulation Class	F
Protection Class	IP44
