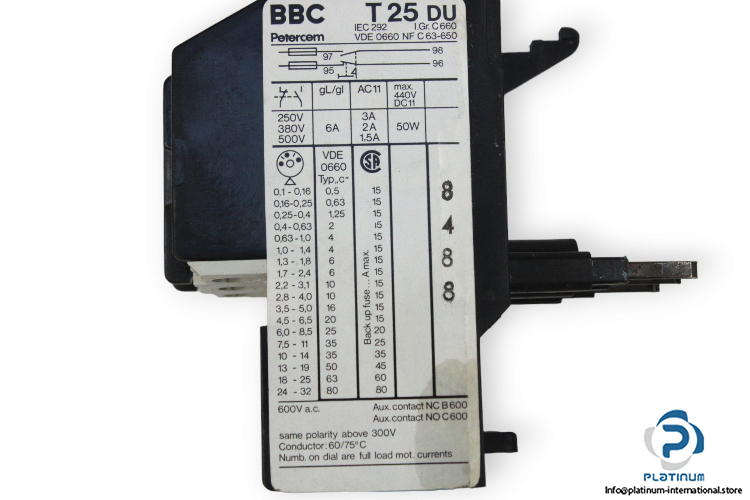

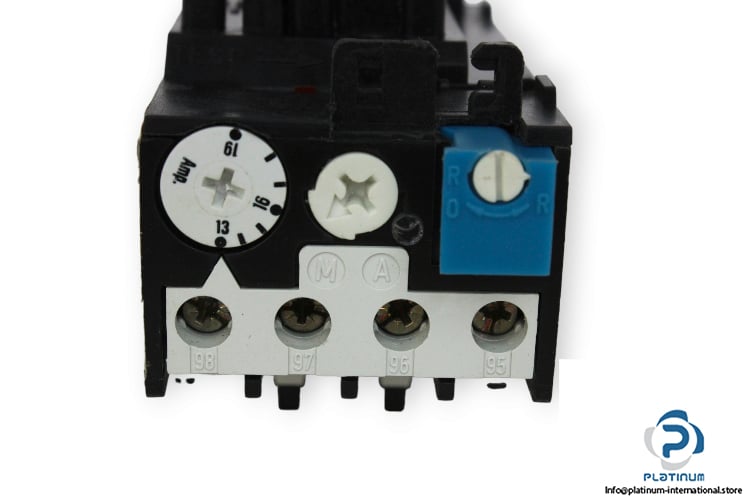

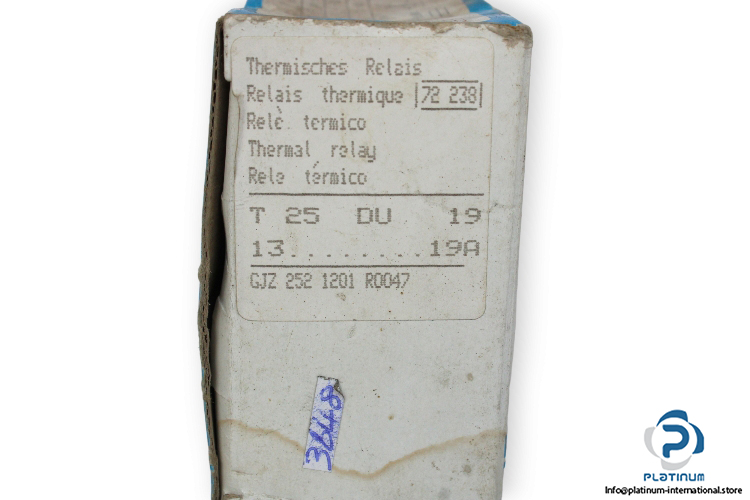

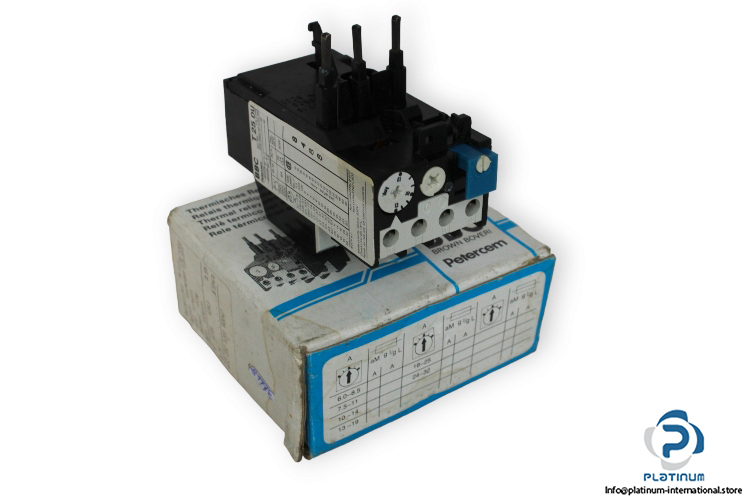

BBC T 25 DU 19 Thermal Overload Relay

Manufacturer: BBC
Type: thermal overload relay
Model: T 25 DU 19

Setting Range: 13 … 19 A
Rated Operational Current (Ie): 19 A
Rated Insulation Voltage (Ui): 690 V
Number of Poles: 3
Number of Auxiliary Contacts NC: 1
Number of Auxiliary Contacts NO: 1
Number of Protected Poles: 3
Pollution Degree: 3
Tightening Torque:Auxiliary Circuit: 1 … 1.3 N·m
Main Circuit: 1.5 … 1.9 N·m
Maximum Operating Altitude Permissible: 2000 m
Operation Temperature: -25 … +55 °C
Width: 44 mm
Height: 80 mm
Depth / Length: 94 mm
