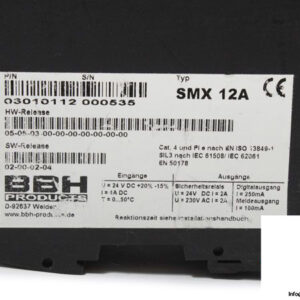

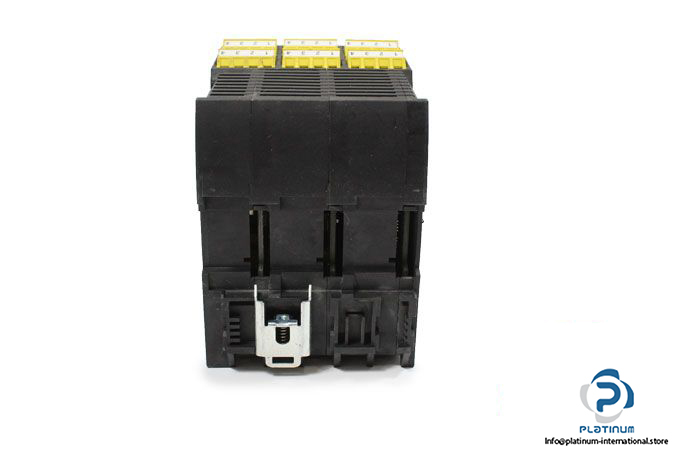

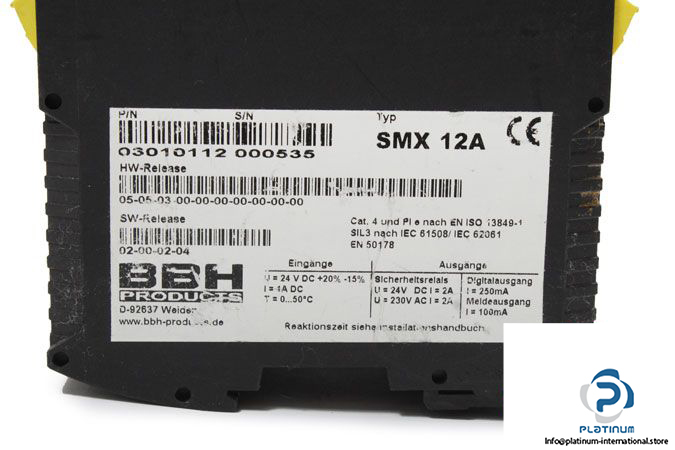

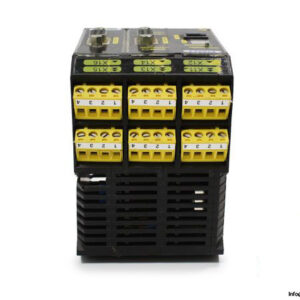

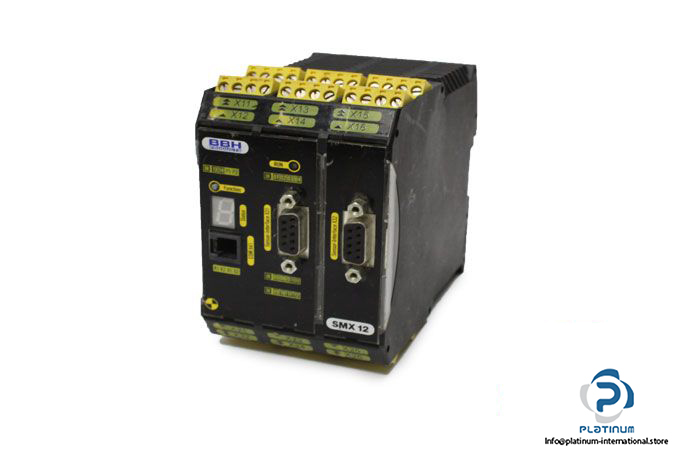

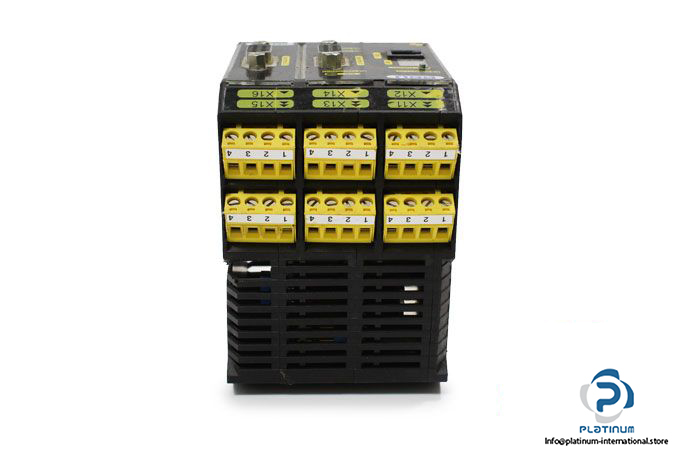

BBH SMX 12A Compact Safety Control With Safe Motion AND Analog Processing

Manufacturer: BBH

Type: Compact Safety Control With Safe Motion And Analog Processing

Model: SMX 12A

Max. No. of Expansion Modules: 2

Interface for Expansion Modules: T-bus connector, pluggable in top-hat trail

Number of Safe Digital Inputs: 14

Number of Relay Outputs: 2

Supply Voltage: 24 VDC

Current: 2A

Class of Protection: IP20

Operation Temperature: 0 … +50 °C

Mounting: to snap on top-hat rail

Dimensions: 100 X 115 X 67.5 mm

Weight: 0.4 Kg
