BD Sensors DMK 331 Industrial Pressure Transmitter
Used
In stock1 unitReady to ship
Pressure Transmitter
BD Sensors DMK 331 industrial pressure transmitter with ceramic sensor, 4“20 mA output, and stainless steel housing for reliable pressure measurement.3314“20BDceramicDeviceDMKIndustrialmAMeasurementPressureProcessSensorSensorsstainlessSteelTransmitter
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

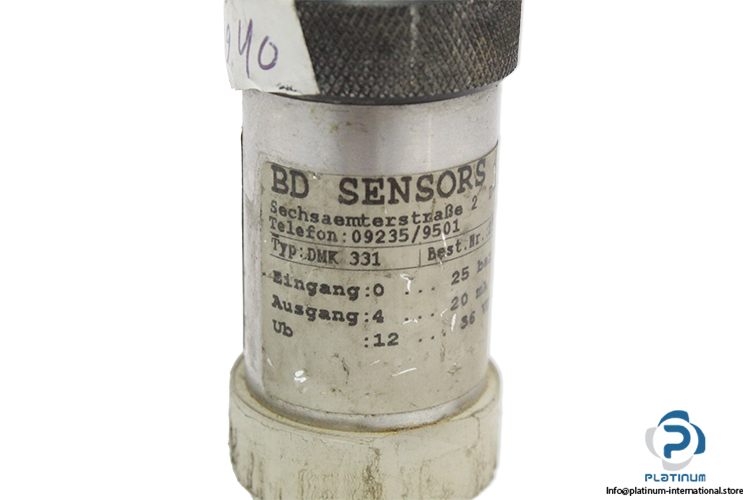

BD Sensors DMK 331 Industrial Pressure Transmitter
The BD Sensors DMK 331 is an industrial pressure transmitter designed for accurate and reliable pressure measurement in demanding environments. It features a ceramic sensor element and a robust stainless steel housing, providing long-term stability, high resistance to mechanical stress, and dependable performance across a wide range of industrial applications.
Manufacturer: BD Sensors
Type: Industrial Pressure Transmitter
Model: DMK 331
Mechanical Stability:
Materials:
| Sensor Type | Ceramic Sensor |
| Measuring Range | 0 to 25 bar |
| Nominal Pressure Range | 0 ... 400 mbar up to 0 ... 600 bar |
| Supply Voltage | 12 “ 36 VDC |
| Output Signal (2-wire) | 4 ... 20 mA |
| Accuracy (IEC 61298-2) | 0.5 % FSO |
| Short-Circuit Protection | Permanent |
| Reverse Polarity Protection | No damage, no function |
| Electromagnetic Compatibility | Emission and immunity according to EN 61326 |
| Vibration | 20 g RMS / 10 ... 2000 Hz according to DIN EN 60068-2-6 |
| Shock | 500 g / 1 msec half sine according to DIN EN 60068-2-27 |
| Pressure Port (Standard) | Stainless Steel 1.4404 (316 L) |
| Optional Open Port (for pN ‰¤ 60 bar) | PVDF |
| Housing | Stainless Steel 1.4404 (316 L) |
| Diaphragm | Ceramic Al2O3 96 % |
| Media Wetted Parts | Pressure port, seals, diaphragm |
| Permissible Medium Temperature | -40 ... 125 °C |
| Process Connection | G1/2 |
