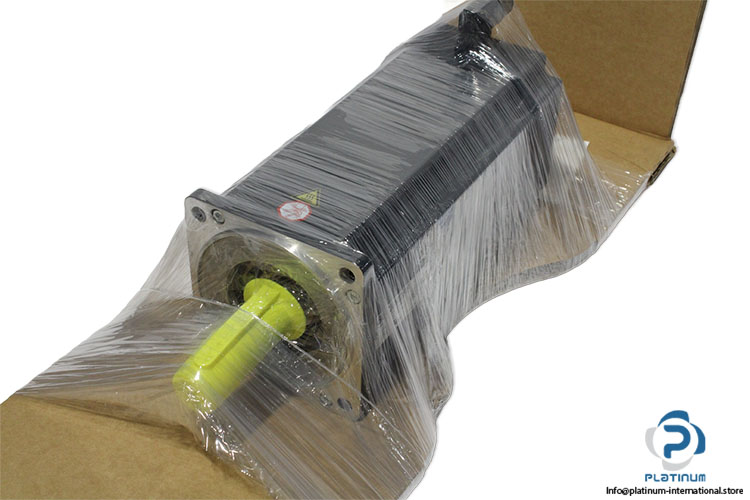

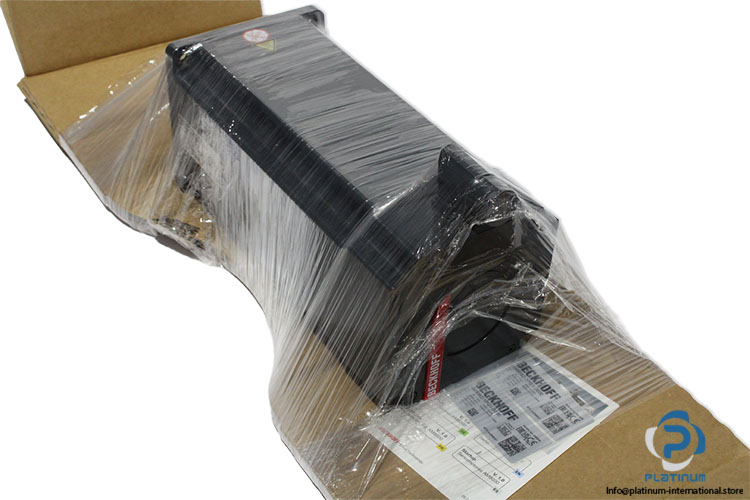

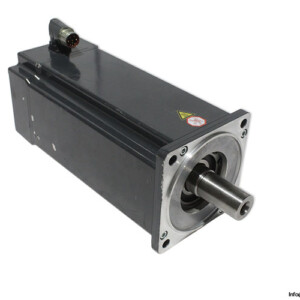

Beckhoff AM8562-1PG1-0000 Servomotor
New
In stock41 unitsReady to ship
1 555,55$
BECKHOFF Servomotor BECKHOFF AM8562-1PG1-0000 is a high-performance 3.4 kW industrial servomotor featuring 21.1 Nm stall torque, 5000 rpm rated speed, IP65 protection, integrated 24Vdc brake, M23 speedtec® connectivity, and flange-mounted construction for advanced automation and motion control systems. Rated Voltage: 400 V Rated Power: 3.4 kW Rated Speed: 5000 rpm Stall Torque: 21.1 Nm Protection Rating: IP54 / IP65 Shaft Diameter: 32 mm
ACAutomationBeckhoffCNCControlDriveFlangeHighIndustrialIP65moMotionmotorMotorsmountedPrecisionRoboticsServoServomotorSynchronousTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

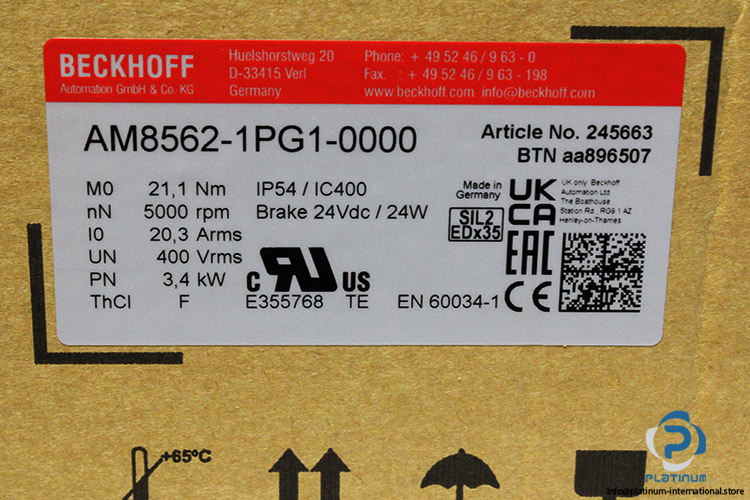

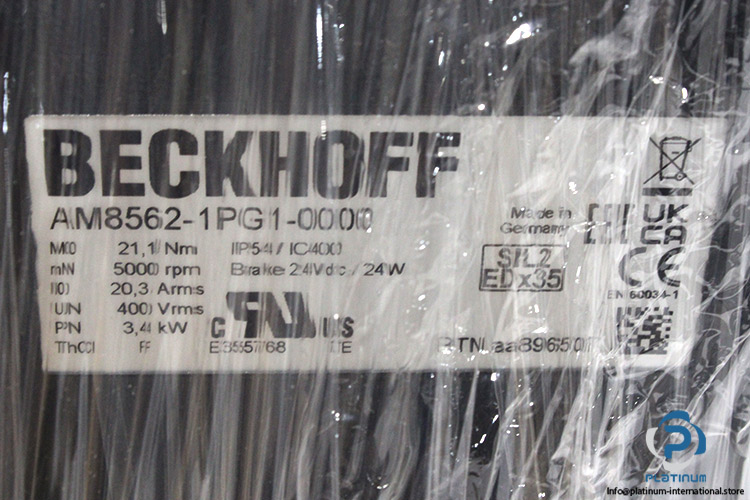

| Part No. | 245663 |
| BTN stands | aa896507 |
| Rated Voltage | 400 V |
| Rated Speed | 5000 rpm |
| Stall Torque | 21.1 Nm |
| Rated Power | 3.4 KW |
| Stall Current | 20.3 A |
| increased moment of inertia | 29.9 Nm |
| standard | EN 60034-1 |
| Brake Voltage, power | 24Vdc / 24W |
| Protection rating | IP54, IP65 (shaft seal) |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| Cooling | convection |

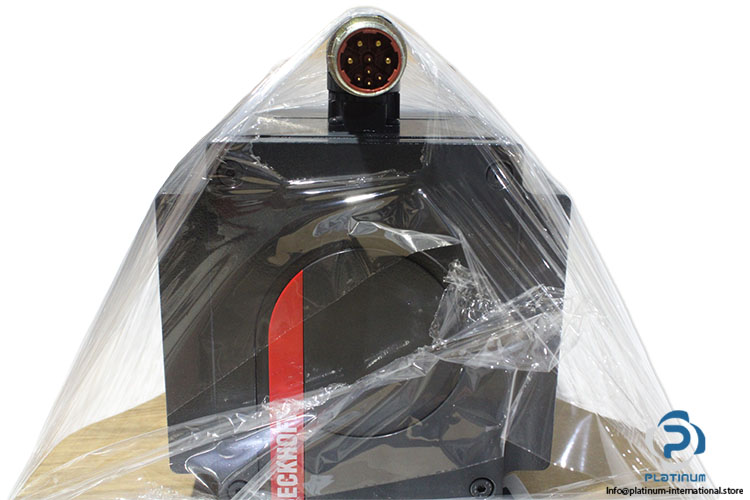

| Connection technology | M23 speedtec® plug |
| Ambient temperature (operation) | 5…40°C |
| Isolation class | F |
| Rotor moment of inertia J [kgcm2] | 57.10 |
| Rotor moment of inertia with brake J [kgcm2] | 59.60 |
| Number of poles | 10 |
| Static friction torque MR [Nm] | 0.10 |
| Thermal time constant tTH [min] | 38 |
| Standard housing version | IP65 |
| Standard shaft feedthrough version | IP54 |
| Shaft feedthrough with shaft sealing ring | IP65 |
| Shaft diameter | 32 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1096822 |
| Weight | 20,75 |
