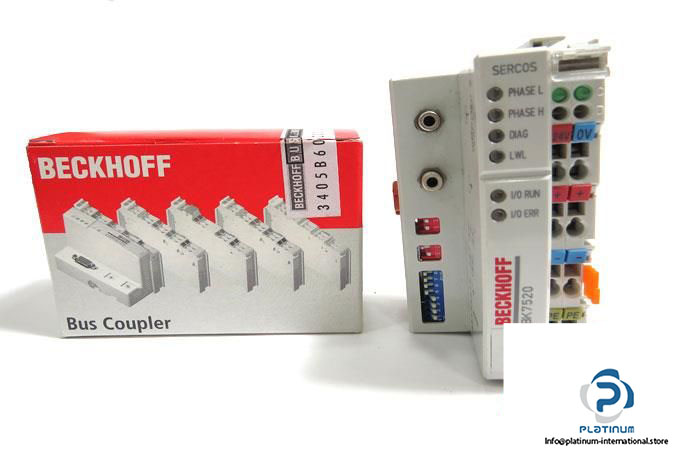

Beckhoff BK 7520 Sercos II BUS Coupler

Manufacturer: BECKHOFF

Type: SERCOS II BUS COUPLER

Model: BK7520

SERCOS is a fiber optic bus that was developed for use in drive technology as a digital drive interface for drives.

No. of I/O stations: 254

No. of Bus Terminals: 64

Peripheral signals: 1020 Digital, 254 Analog

Power supply: 24 V DC (-15%/+20%)

Input current: 70 mA

Bus interface: F-SMA standard

Isolation: 500 V

Operating temp.: 0…55 °C

Protection: IP20

Condition: New
