Beckhoff CU8803-0000 Transmitter BOX
New
In stock2 unitsReady to ship
Transmitter Box BECKHOFF CU8803-0000 CP-Link 4 transmitter box for connecting control panels to PCs with DVI interface. Features DIN rail mounting, 24 V DC supply, RJ45 CP-Link 4 output, and includes DVI and USB cables.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

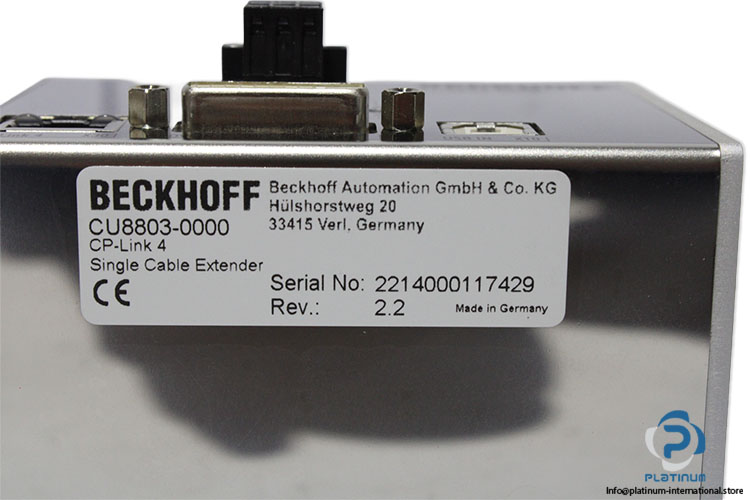

| Serial No | 2214000117429 |
| Rev . | 2.2 |
| Transmitter box for | CP-Link 4 – The One Cable Display Link |

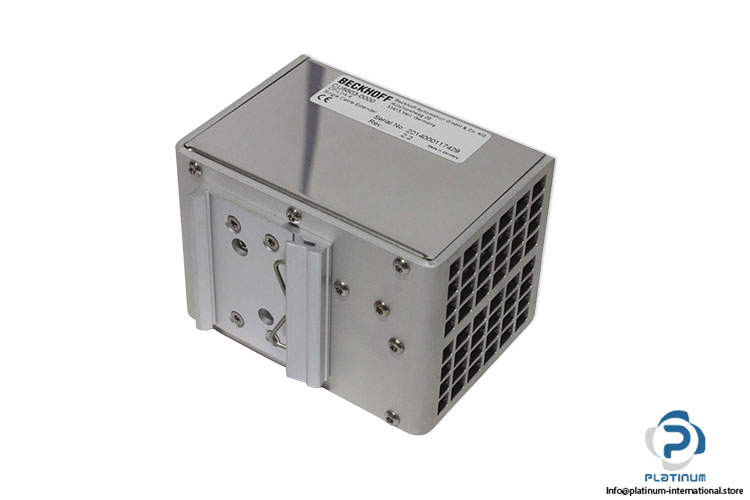

| Housing | metal housing for DIN rail installation |

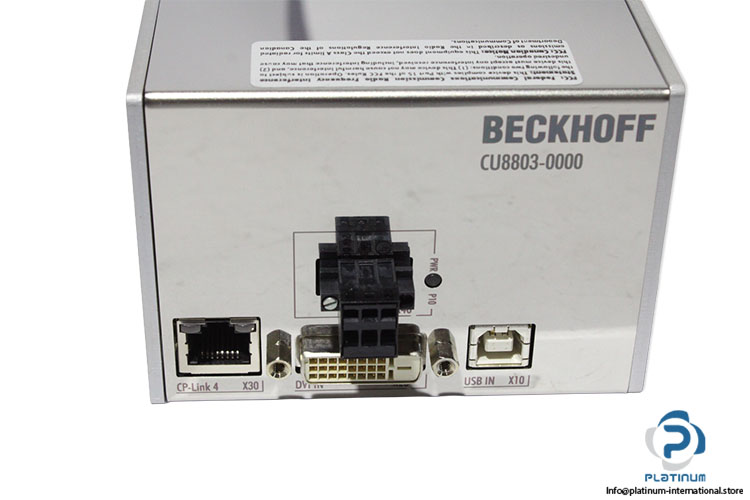

| Interfaces | 1 USB input with USB B socket to be connected to the PC in maximum 1 m distance;1 DVI input with DVI-D socket to be connected to the PC in maximum 1 m distance;1 CP-Link 4 output with RJ45 socket for up to 100 m Cat.6A cable |

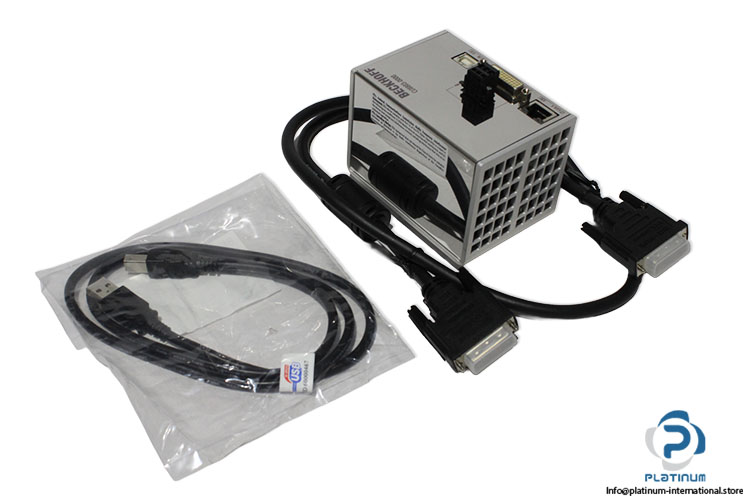

| Connector cable | 1 m USB 2.0 USB-A to USB-B,1 m DVI to DVI, for PCs with DVI interface |
| Power supply | 24 V DC |
| Dimensions (W x H x D) | 70 mm x 100 mm x 80 mm |
| Operating temperature | 0…55°C |
| Protection rating | IP20 |
| Approvals/markings | CE, ATEX, IECEx (requires C9900-Z484) |
| Ex marking | II 3 G Ex nA IIC T4 Gc,II 3 D Ex tc IIIC T135 °C Dc,Ex nA IIC T4 Gc,Ex tc IIIC T135 °C Dc |
| Additional information | CP-Link 4 transfers USB 2.0 with 100 Mbit/s and DVI |

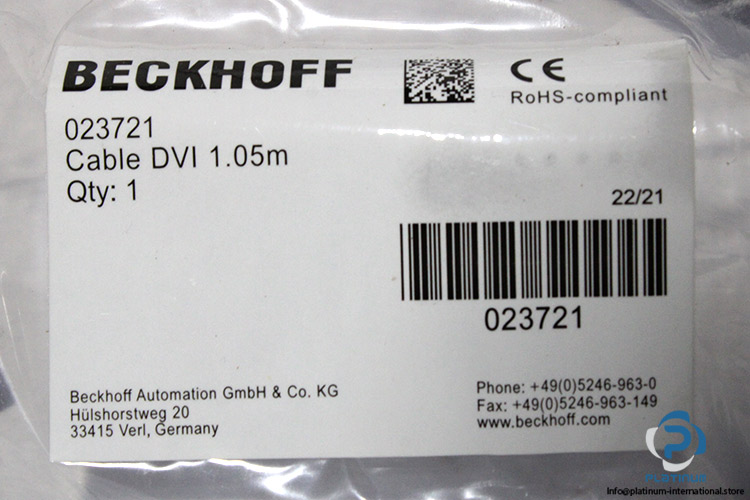

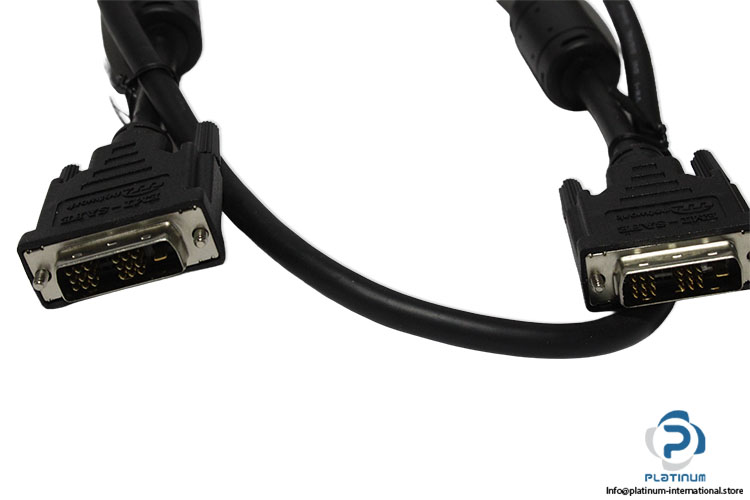

| Attached with | BECKHOFF 023721 DVI Cable |
| Cable length | 1.05 m |

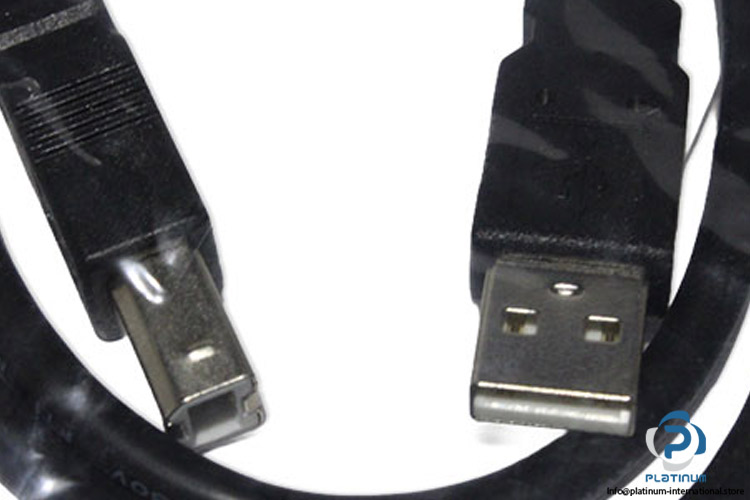

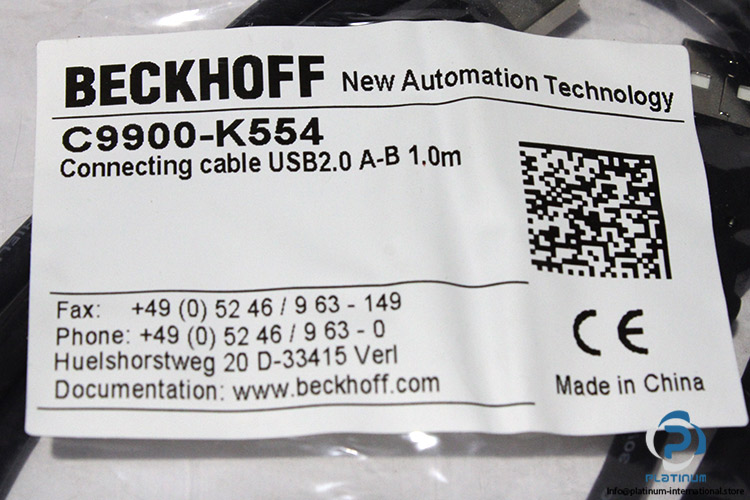

| Attached with 2 | BECKHOFF C9900-K554 USB Cable |
| Part No. | 180943 |
| Cable length, USB Cable | 1 m |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Shielding, Head A | yes |
| Installation size, Head A | USB A |
| Connector type, Head A | PLUG |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099691 |
| Weight | 1,13 |
