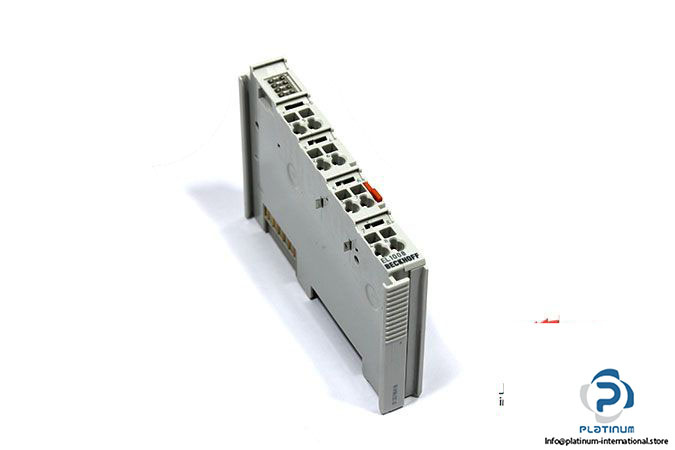

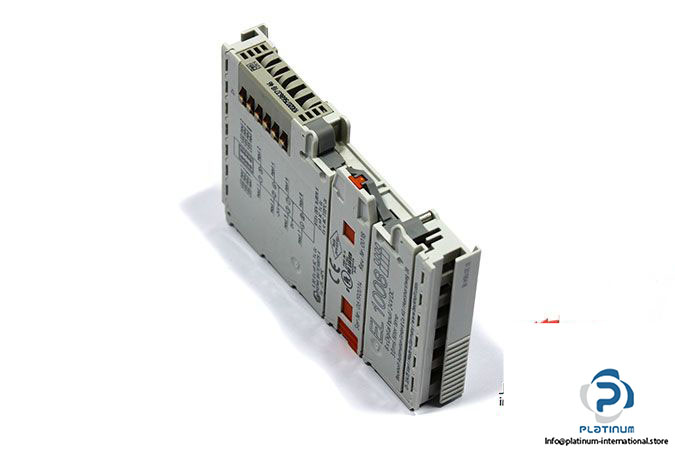

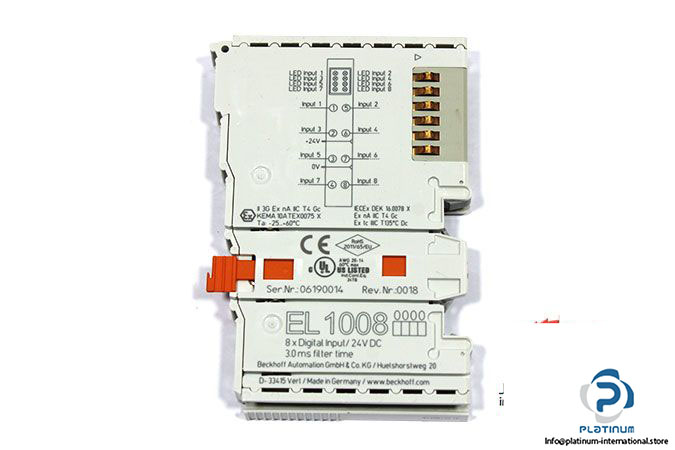

Beckhoff EL1008 8-CHANNEL Digital Input Terminal

Manufacturer: Beckhoff

Type: 8-Channel Digital Input Terminal

Model: EL1008

Number of Inputs: 8

Nominal Voltage: 24 V DC

“0” Signal Voltage: -3 … 5 V

“1” Signal Voltage: 11 … 30 V

Input Current: 3 mA

Input Filter: 3.0 ms

Current Consumption Power Contacts:  2 mA + load

Current Consumption E-Bus: 90 mA

Electrical Isolation: 500 V

Operating Temperature: -25 … 60 °C

Protection Class: IP20

Weight: 0.06 kg
