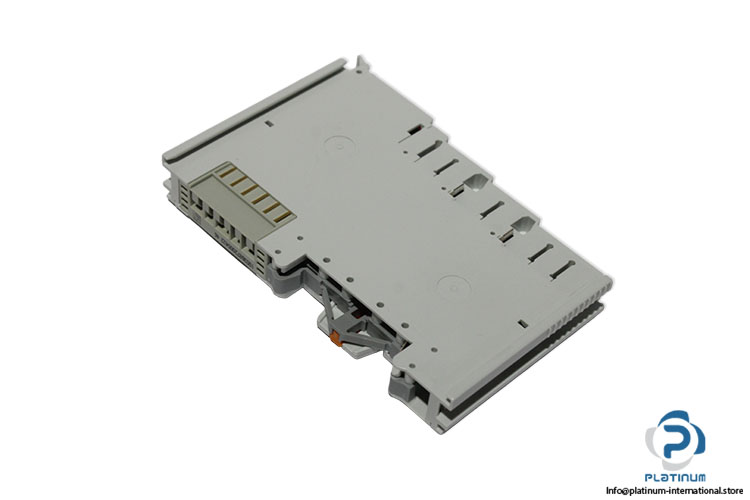

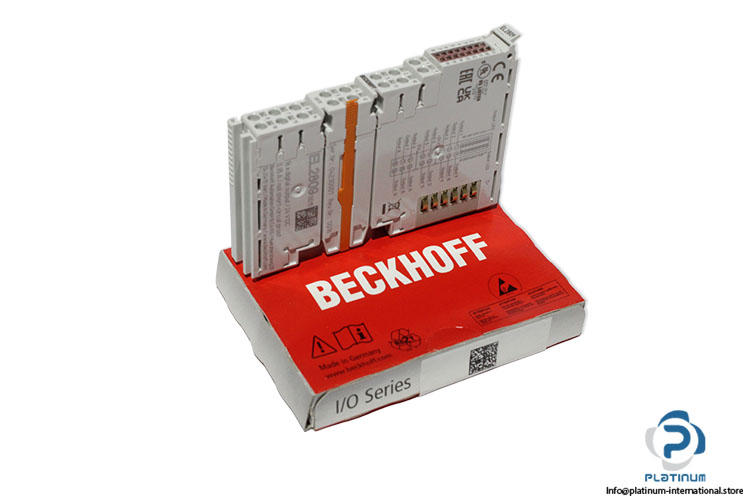

Beckhoff EL2809-0015 Ethercat Terminal

In stock44 unitsReady to ship

55,55$

EtherCAT Terminal Beckhoff EL2809-0015 EtherCAT terminal featuring 16 digital outputs, high-speed switching performance, compact HD housing, and DIN rail mounting for industrial automation systems.

Manufacturer
BECKHOFF
SKU
1097605
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

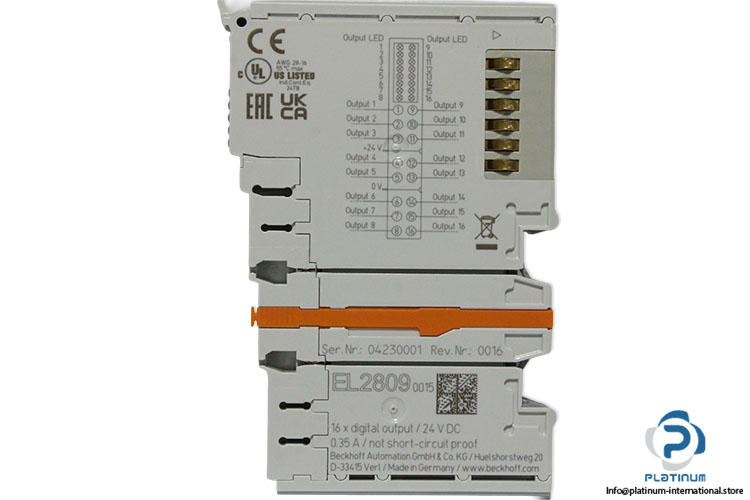

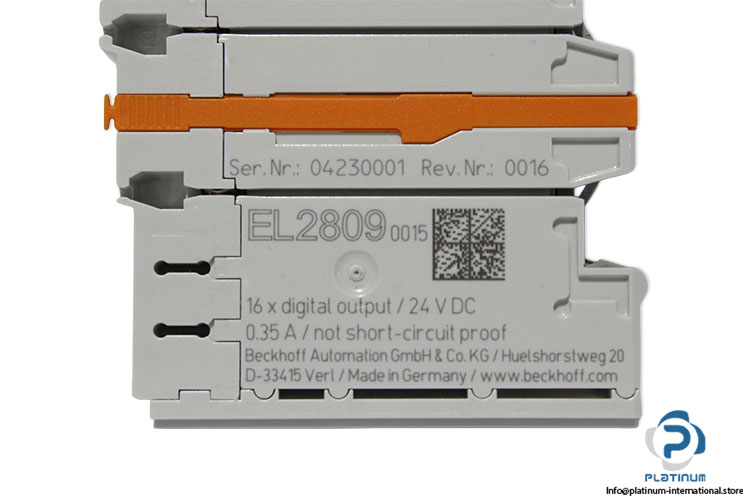

Serial No.04230001
Rev. No.0016

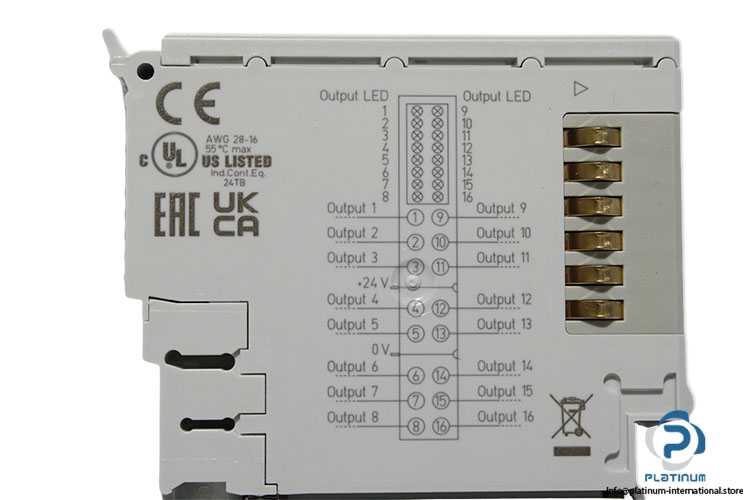

Connection Technology1-wire (not short-circuit proof)
No. of digital outputs (DO)16
Nominal Voltage24 V DC
Load typeohmic, inductive, lamp load
Output currentmax. 0.35 A
Short-circuit currenttyp. < 2 A
Breaking energy< 150 mJ/channel
Electrical isolation500 V
Switching timestyp. TON: 60 µs, typ. TOFF: 300 µs
Current consumption E-bustyp. 140 mA
Current load power contactstyp. 35 mA + load
Protection degreeIP20
MaterialPolycarbonate
Operating temperature-25 to 60°C
CertificatecULus, CE, EAC, UKCA

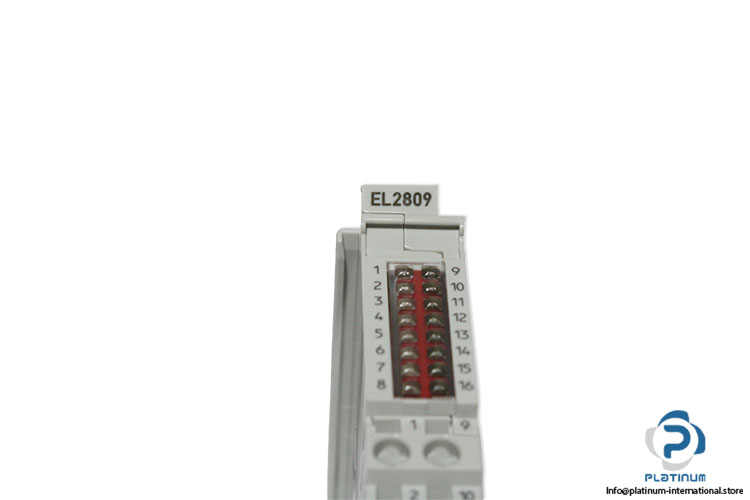

Design formHD (High Density) housing with signal LEDs
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side-by-Side Mountingdouble slot and key connection
MarkingLabeling of the BZxxxx series

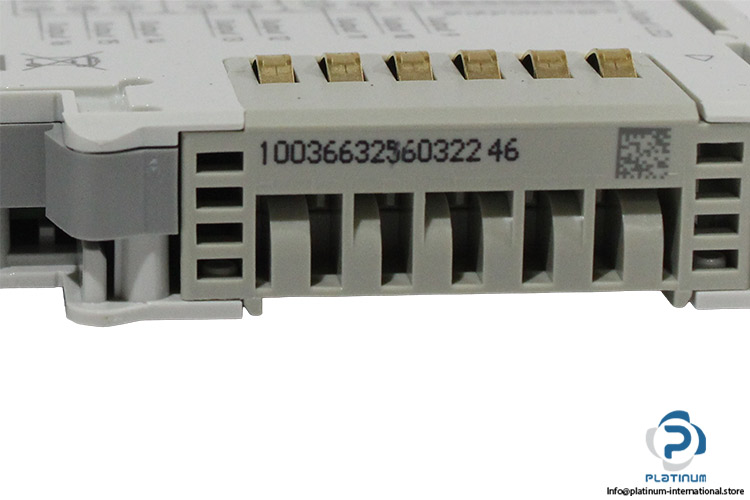

Terminal No.10036632560322 46
Dimensions12 x 100 x 68 mm
ConditionNew
Stock KeyJO-004
SKU1097605
Weight0,06
