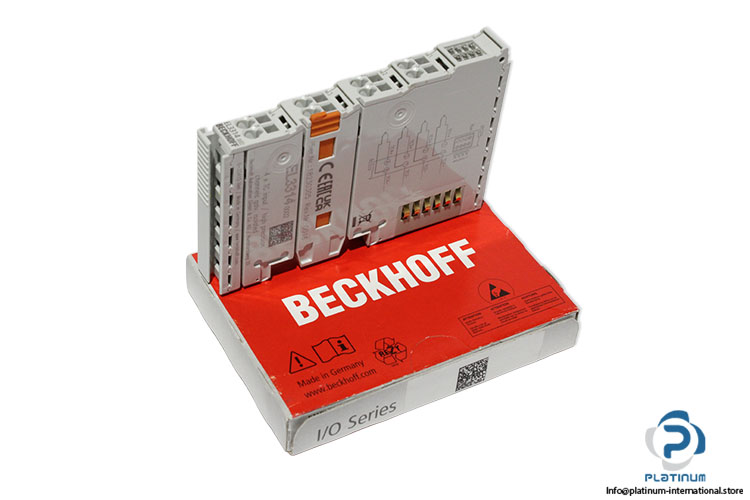

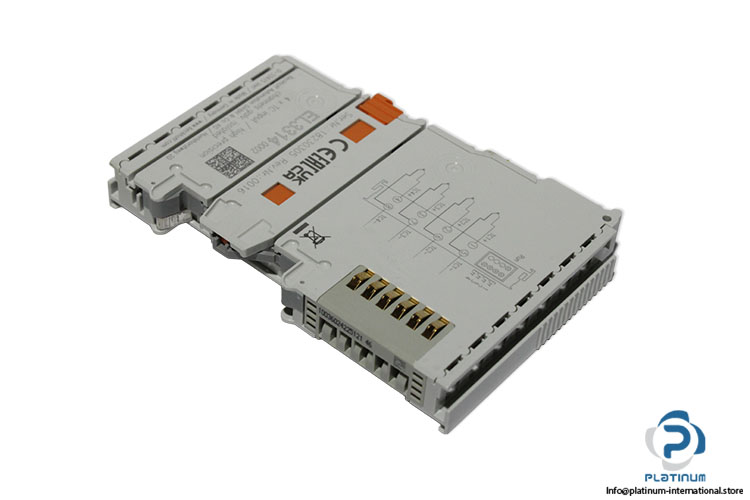

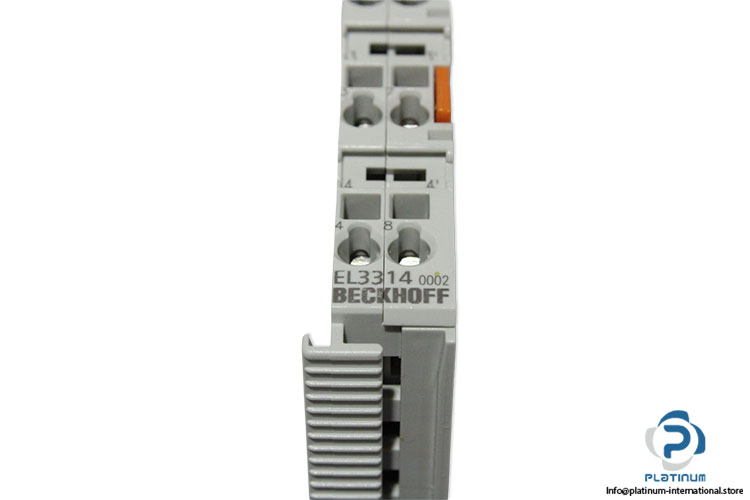

Beckhoff EL3314-0002 Ethercat Terminal

In stock2 unitsReady to ship

199,99$

EtherCAT Terminal Beckhoff EL3314-0002 4-channel analog input EtherCAT terminal featuring 24-bit resolution, thermocouple measurement support, electrical isolation, and compact DIN rail mounting for industrial automation applications.

Manufacturer
BECKHOFF
SKU
1097575
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

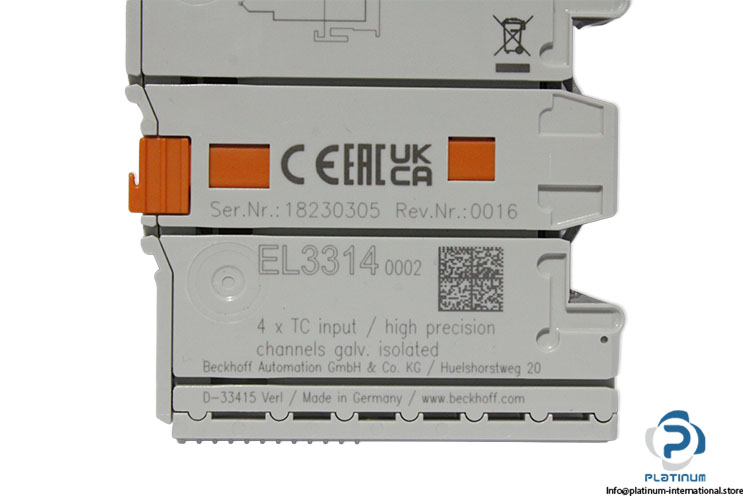

Serial No.18230305
Rev. No.0016
Connection technology2-wire
No. of analog input (AI)4
Nominal voltagevia the E-bus
Input filter limit frequencytyp. 1 kHz
Voltage measurement+-78 mV, +-2,5 V
Resolution24 bit

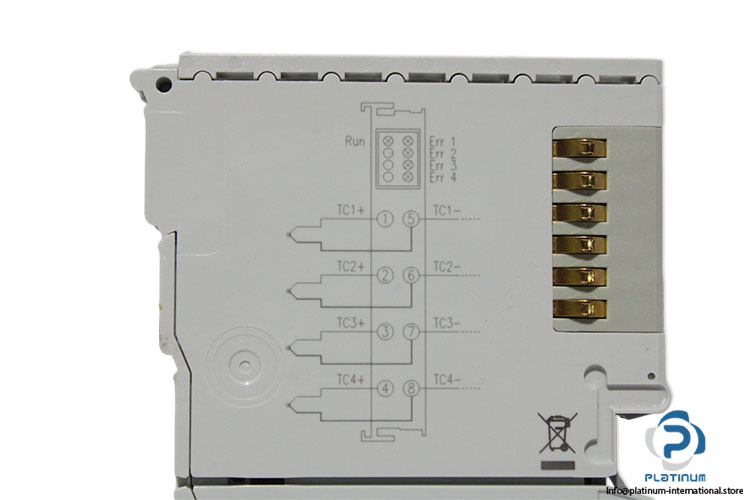

Temperature measurementthermocouple type B, C, E, J, K, L, N, R, S, T, U
Electrical isolation2500 V
Current consumption E-bustyp. 200 Ma
Protection degreeIP20
Special featureschannel by channel wire break detection, internal and external cold junction, firmware filter adjustable, simultaneous measurement of the channels
MaterialPolycarbonate
Operating temperature-25 to 60°C
CertificateCE, EAC, UKCA
Design formcompact terminal housing with signal LEDs
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side-by-Side Mountingdouble slot and key connection
Markinglabeling of the BZxxxx series

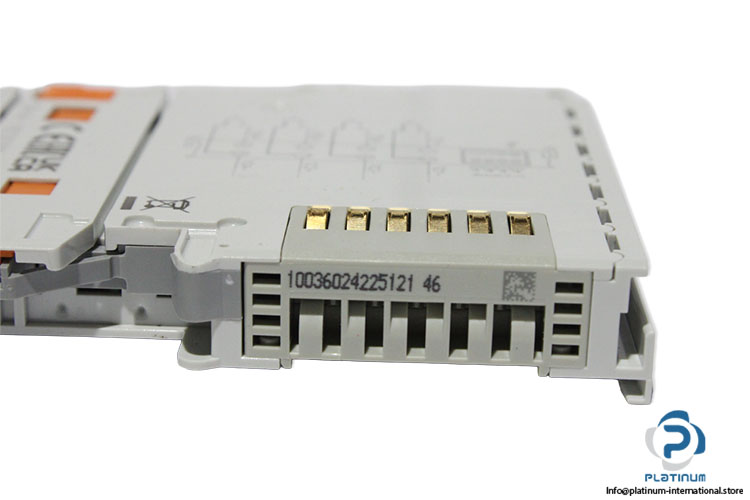

Terminal No.10036024225121 46
Dimensions12 x 100 x 68 mm
ConditionNew
Stock KeyJO-004
SKU1097575
Weight0,06
