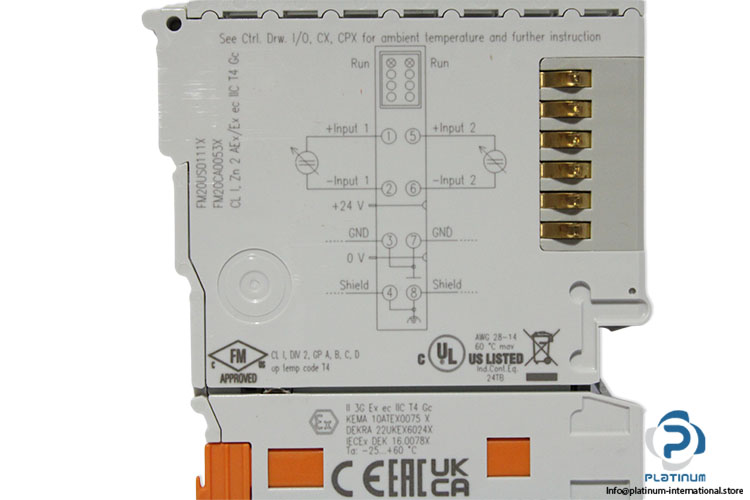

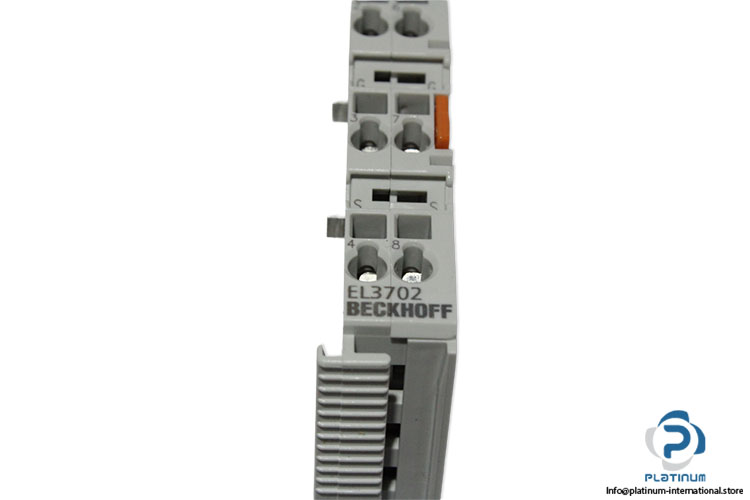

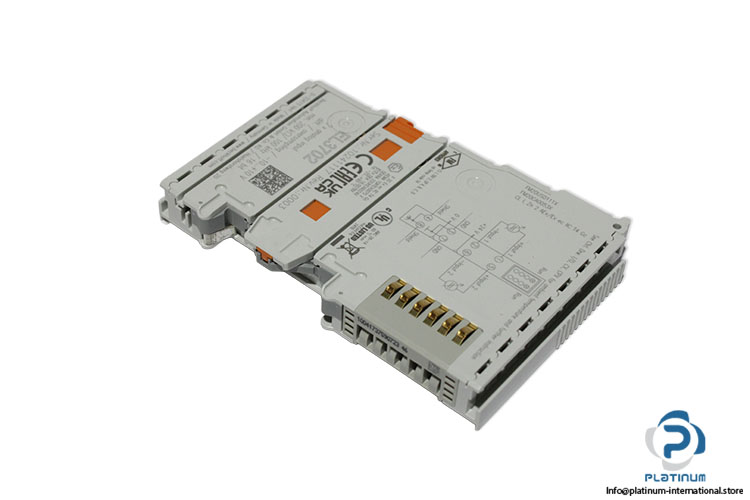

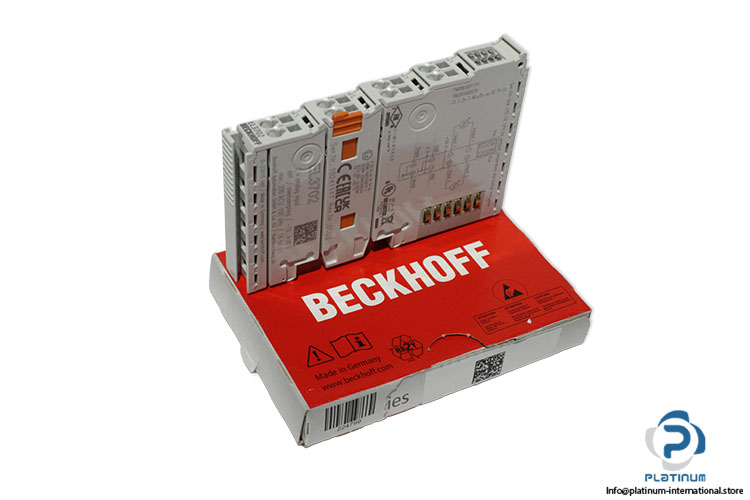

Beckhoff EL3702 Ethercat Terminal
New
In stock1 unitReady to ship
199,99$
EtherCAT Terminal / Analog Input Module Beckhoff EL3702 EtherCAT terminal with 2 differential analog inputs, 16-bit resolution, oversampling capability, and high-speed signal processing for advanced industrial automation and measurement applications.
AcquisitionAnalogAutomationBeckhoffControlDINEL3702EtherCATI/OIndustrIndustrialInputMeasurementModulePLCrailSignalterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

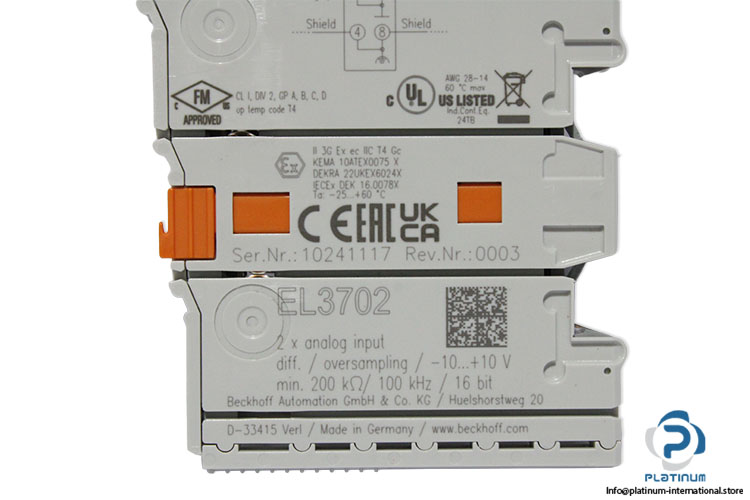

| Serial No. | 10241117 |
| Rev. No. | 0003 |
| No. of analog input (AI) | 2 differential |
| Nominal voltage | 24 V |
| Signal voltage | -10 to 10 V |
| Internal resistance | less than 200 kohm |
| Sampling rate | max. 10 µs/100 ksps (per channel, simultaneously) |
| Oversampling factor | n, 1-100 selectable (max. 100 ksamples/s) |
| Input signal bandwidth | 0-30 kHz recommended |
| Input filter limit frequency | 100 kHz |
| Conversion time | 10 µs per sample |
| Resolution | 16 bit |
| Electrical isolation | 500 V |
| Special features | oversampling |
| Current consumption E-bus | typ. 200 mA |
| Material | Polycarbonate |
| Operating temperature | -25 to 60°C |
| Certificate | cULus, CE, EAC, UKCA,cFMus |
| Standard | II3G Ex ec IIC T4 Gc, KEMA 10ATEX0075 X, DEKRA 22UKEX6024X, IECEx DEK 16.0078X, FM20US0111X, CL I, Zn 2 AEx/Ex ec IIC T4 Gc, FM20CA0053X |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |

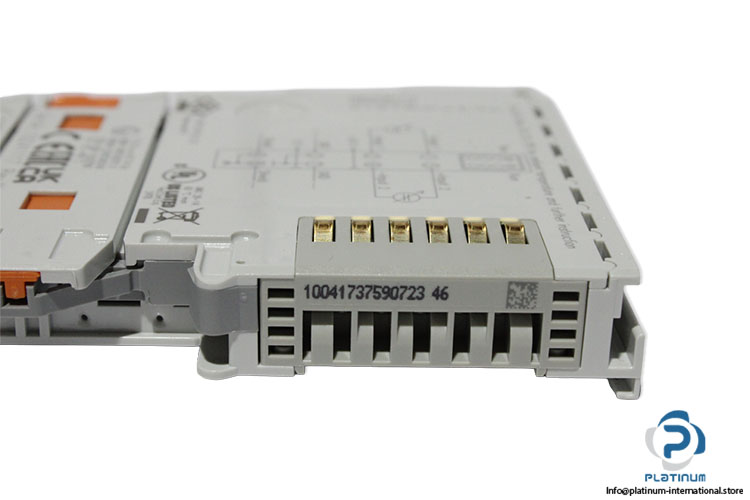

| Terminal No. | 10041737590723 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097574 |
| Weight | 0,06 |
