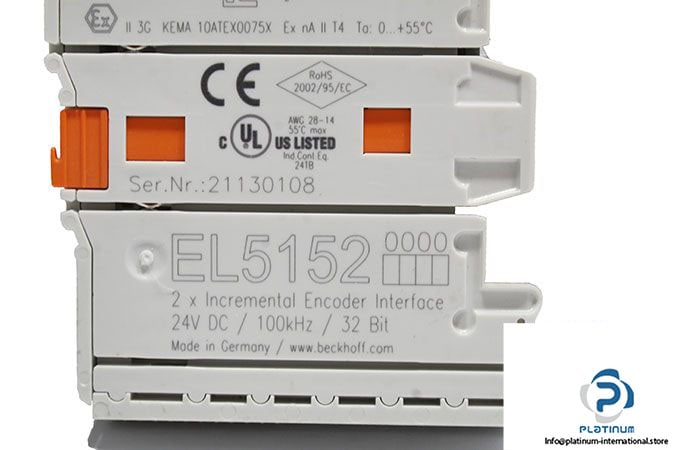

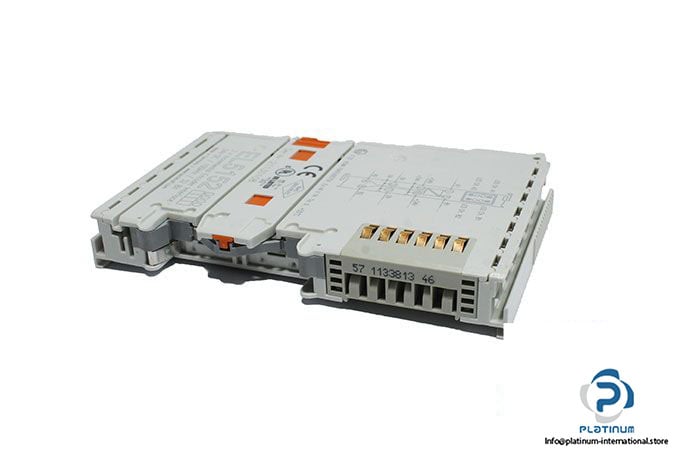

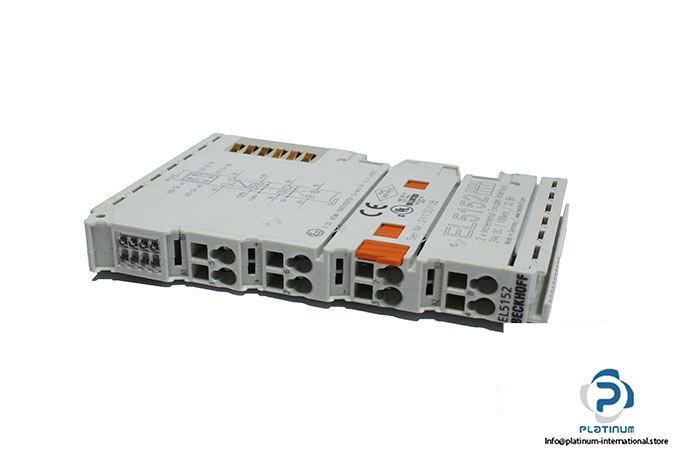

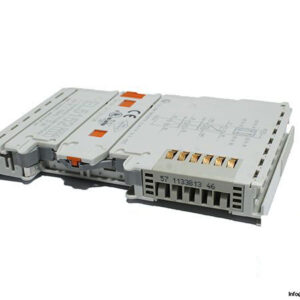

Beckhoff EL5152 Incremental Encoder Interface

Available on request

225,00$

INCREMENTAL ENCODER INTERFACE

Beckhoff EL5152 offers 2-channel 24 V encoder input, high resolution 1/256 bit microincrements, and 4-fold quadrature decoding for precise motion control. Features include frequency measurement and up/down counting in IP 20 housing.

Manufacturer
BECKHOFF
SKU
978295
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

BECKHOFF EL5152 INCREMENTAL ENCODER INTERFACE

The Beckhoff EL5152 is a high-precision incremental encoder interface that supports two channels with 24 V single-ended connections. Designed for precise positioning, speed monitoring, and advanced motion control, this module provides accurate data evaluation through its 4-fold quadrature decoder and microincrement capability.

Manufacturer: Beckhoff

Type: Incremental Encoder Interface

Model: EL5152

Serial No.: 21130108

Number of Channels2
Encoder Connection2 x A, B: 24 V single-ended connection
Encoder Operating Voltage24 VDC
Counter2 x 16/32 bit switchable
Quadrature Decoder4-fold evaluation
Current Consumption Power Contactstyp. 100 mA + load
Resolution1/256 bit microincrements
Electrical Isolation500 V (E-bus/field potential)
Current Consumption E-Bustyp. 130 mA
Special FeaturesMicroincrements, Period Duration and Frequency Measurement, Up/Down Counters
Operating Temperature-25 / +60 °C
Storage Temperature-40 / +85 °C
Protection ClassIP 20
