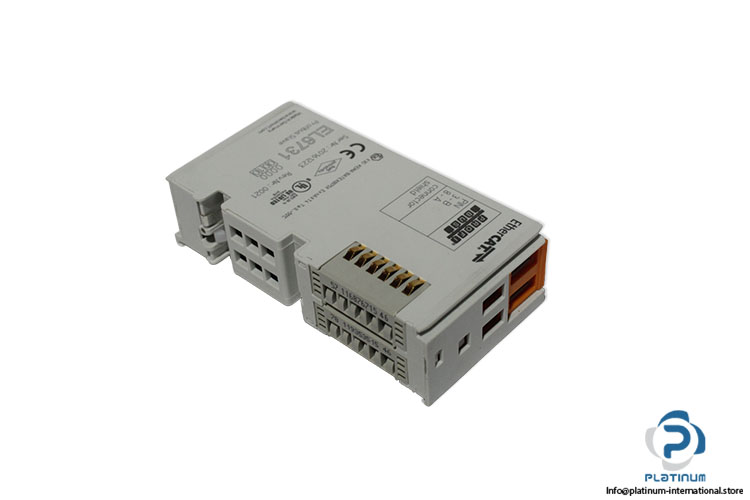

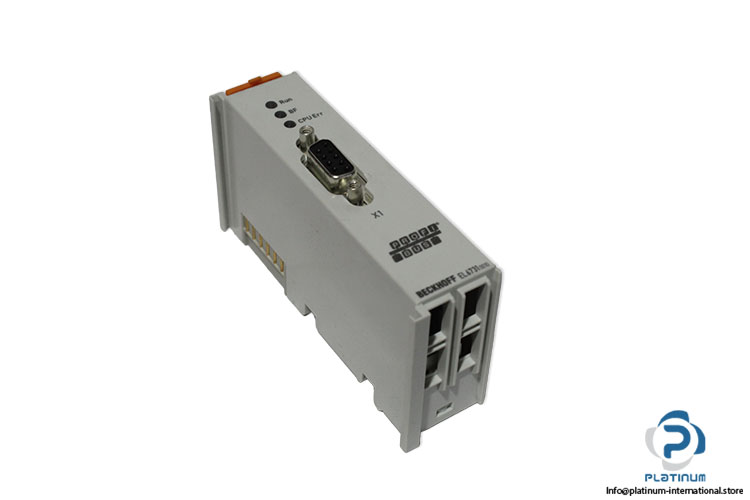

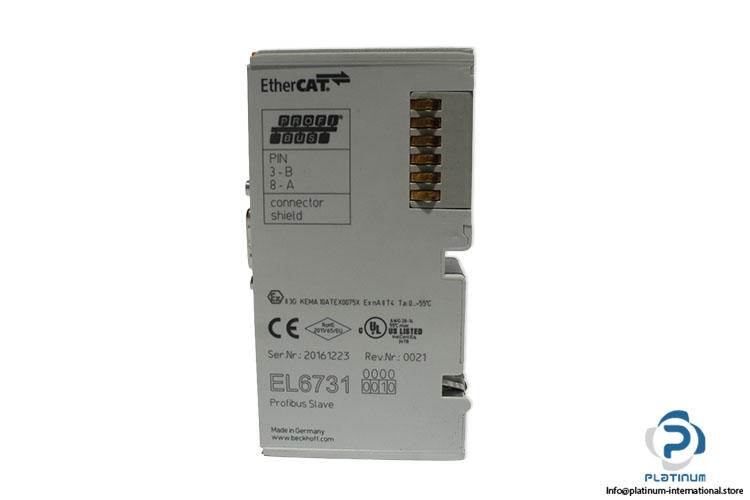

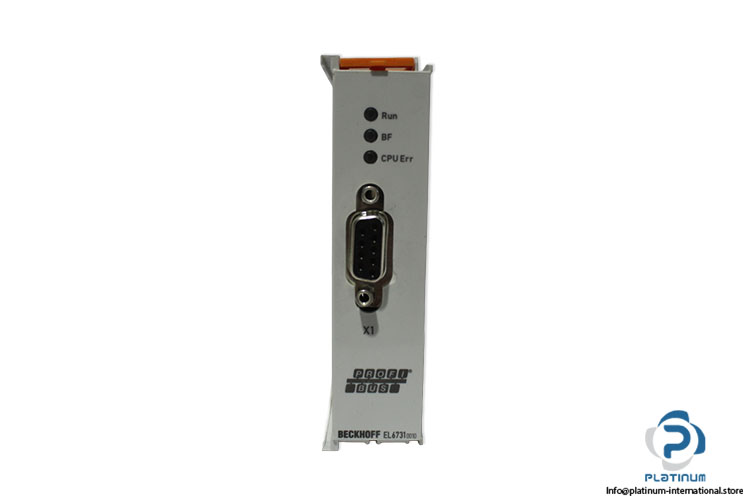

Beckhoff EL6731 Ethercat Terminal

In stock1 unitReady to ship

EtherCAT Coupler The BECKHOFF EL6731 is an EtherCAT Coupler designed to connect EtherCAT Terminals to 100BASE-TX networks, providing fast and reliable industrial communication.

Manufacturer
BECKHOFF
SKU
1100796
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Ser Nr20161223
Rev.Nr0021
TechnologyPROFIBUS master/slave terminal
Number of channels1
Bus SystemPROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), PROFIBUS DP-V2, PROFIBUS MC (equidistance)
VersionMaster
Number of Fieldbus Channels1
Data Transfer Rate9.6 kBit/s to 12 MBit/s
Bus Interface1 x D-Sub socket, 9-pin, galvanically isolated
Bus Nodes Maximum125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave
Cycle TimeDiffering DP cycle times per slave possible using the CDL concept
Process ImageSum max. 1.4 kbyte input and 1.4 kbyte output data
DiagnosticsStatus LEDs
Power Supplyvia the E-bus
Current Consumption via E-bustyp. 350 mA
Ambient Temperature Range-25 °C to +60 °C
Design formcompact terminal housing with signal LEDs
Materialpolycarbonate
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means ofdouble slot and key connection
Wiringspecific push-in connection
Dimensions (W x H x D)24 mm x 100 mm x 52 mm
Stock keyCON003
ConditionNew
SKU1100796
Weight0,13

You May Also Need

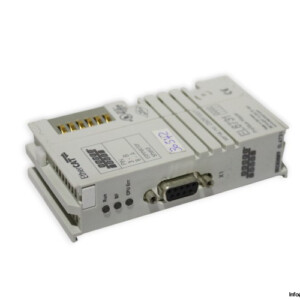

Beckhoff EL6731 Ethercat Terminal
