Beckhoff EL9510 Ethercat Terminal
New
In stock1 unitReady to ship
67,77$

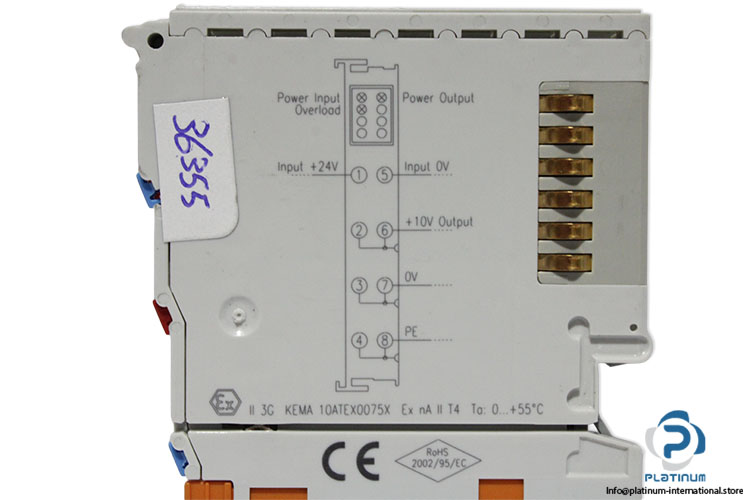

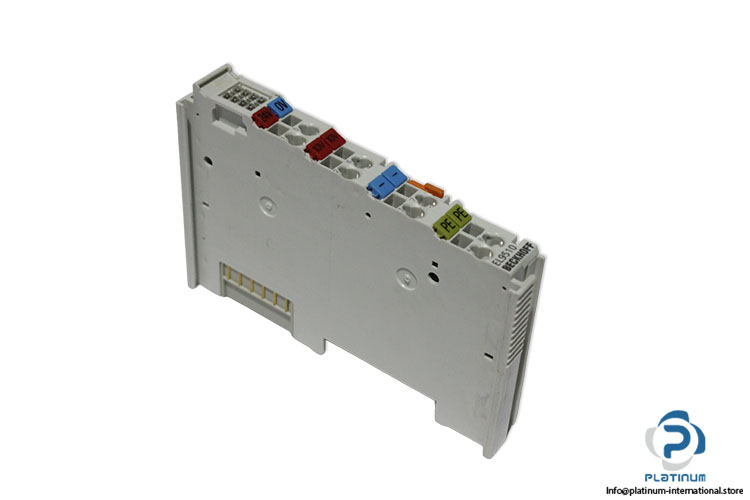

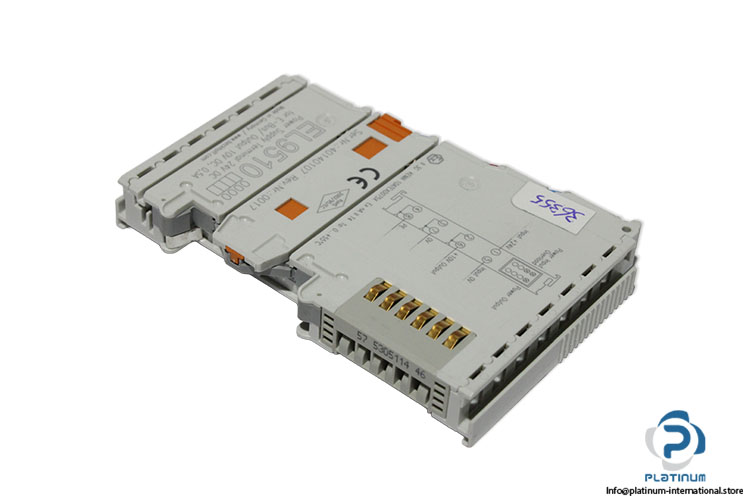

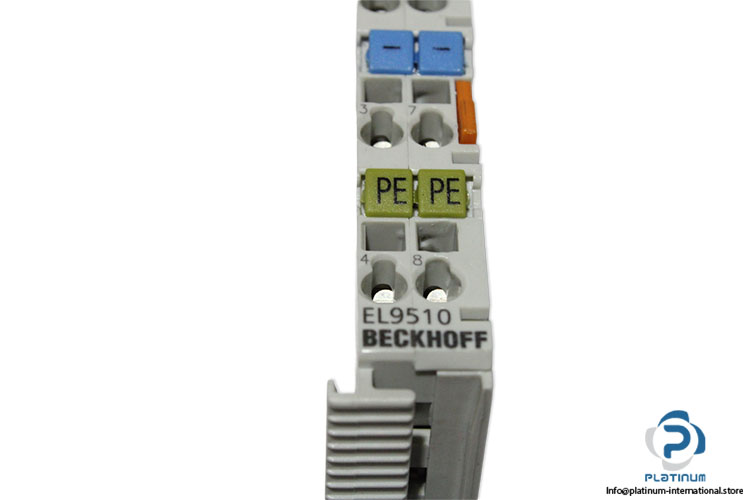

EtherCAT Terminal / Power Supply Terminal Beckhoff EL9510 compact EtherCAT power supply terminal with diagnostics, overcurrent indication, electrical isolation, and DIN rail mounting for industrial automation applications.
AutomationbeckBeckhoffComponentsControlDINEL9510EtherCATI/OIndustrialModulePLCPowerrailsupplyterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

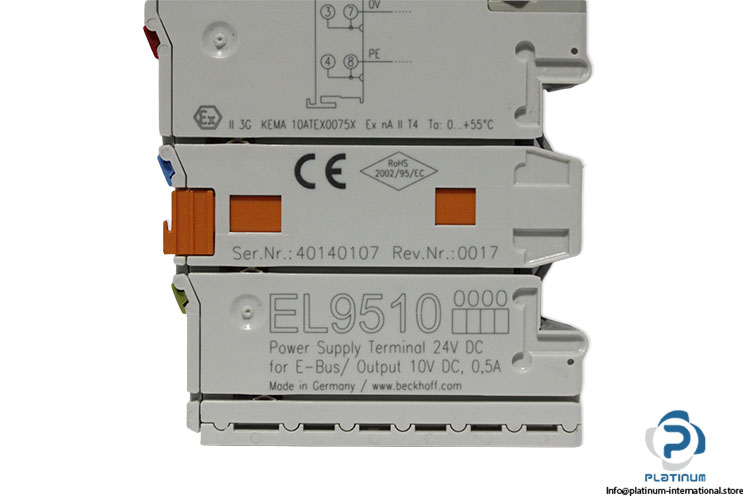

| Serial No. | 40140107 |
| Rev. No. | 0017 |
| Connection technology | power supply terminal with diagnostics and overcurrent LED |
| Input voltage | 24 V DC |
| Output voltage | 10 V DC |
| Output current | 0.5 A |
| Protection degree | IP20 |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 90 mA |
| Standard | II 3G KEMA 10ATEX0075X Ex nA II T4 |
| Material | Polycarbonate |
| Ambient temperature | 0 to 55°C |
| Certificate | CE |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |

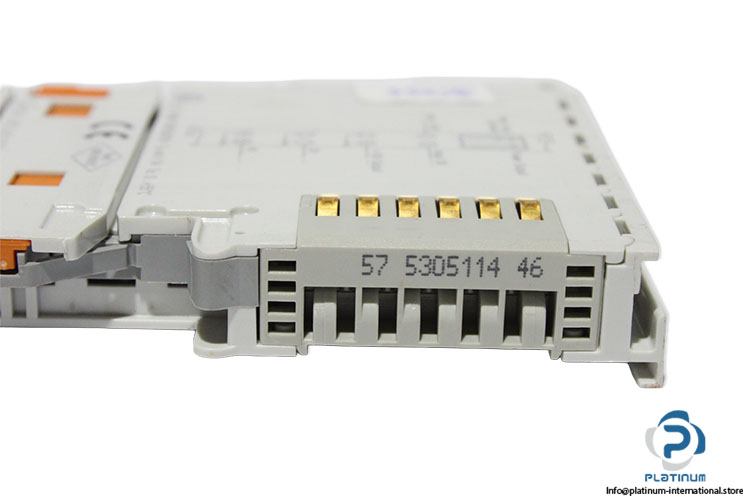

| Terminal No. | 57 5305114 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097589 |
| Weight | 0,05 |
