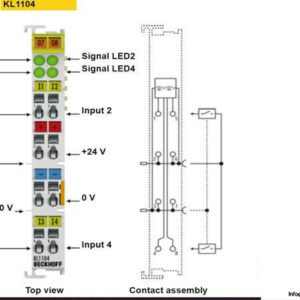

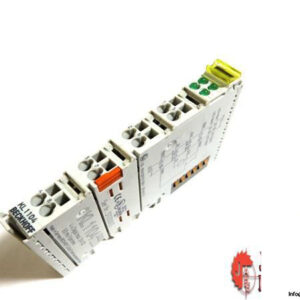

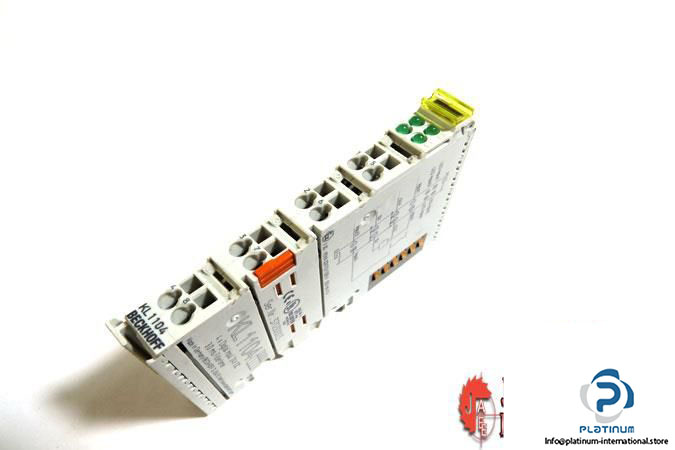

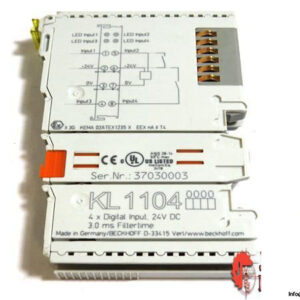

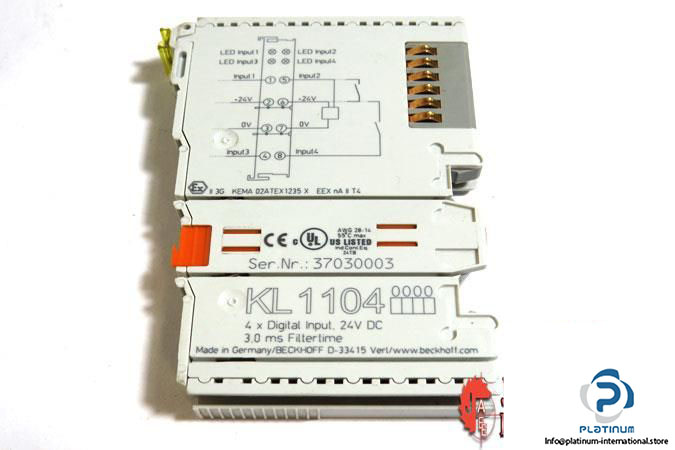

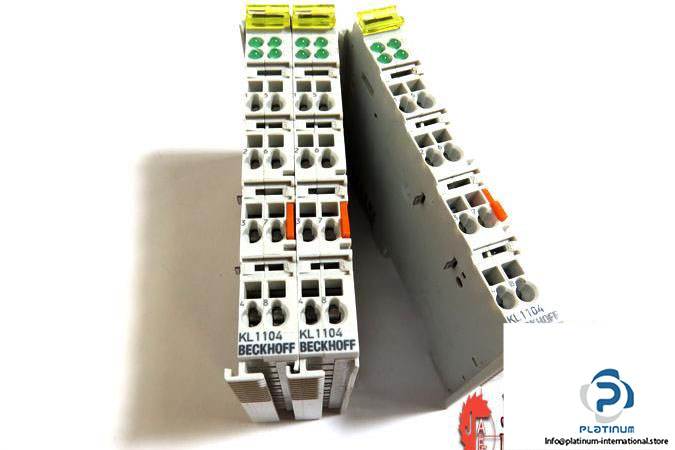

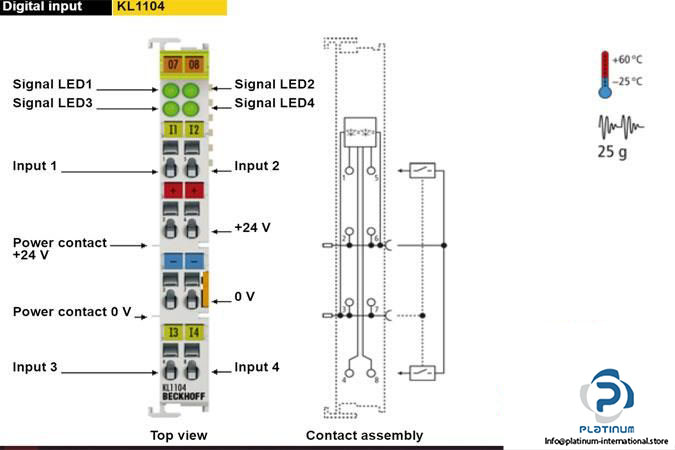

Beckhoff KL 1104 4-CHANNEL Digital Input Terminal

Manufacturer: BECKHOFF

Type: 4-Channel Digital Input Terminal

Model: KL1104

Pluggable wiring: for all KSxxxx Bus terminal

Connection Technology: 2-/3-wire

Number of inputs: 4

Nominal voltage: 24 V DC

Ripple: -15%/+20%

Input filter time: 3 ms

Input current: 5 mA

Current consumption K-bus: 5 mA

Electrical isolation:  500 V

Operation temp: -25…60 °C

Protection: IP20
