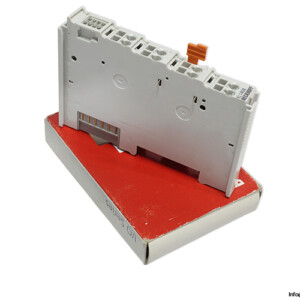

Beckhoff KL 1408 8-CHANNEL Digital Input Terminal
Used
In stock18 unitsReady to ship
40,00$
Digital Input Terminal
An industrial 8-channel digital input terminal providing reliable signal acquisition, electrical isolation, and EMC compliance for automation and control applications, including hazardous and explosion-proof environments.AutomationBeckhoffComponentsControlDigitalElectronicsExplosionFieldbusI/OIndustrialInputKL1408ModulePLCProofSystemterminal
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

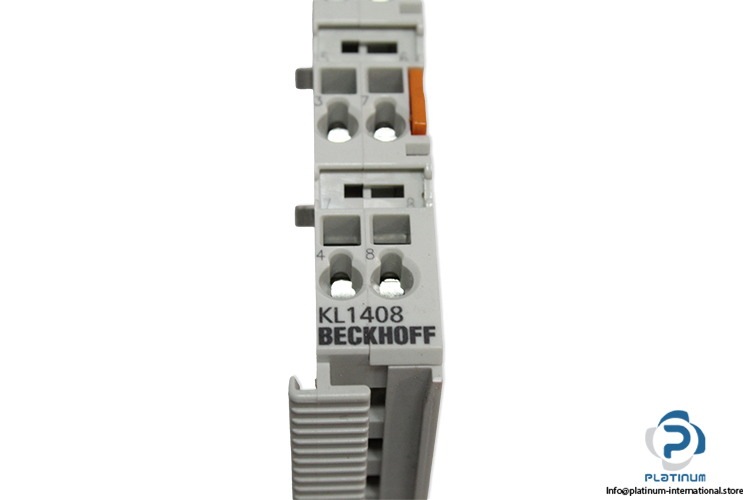

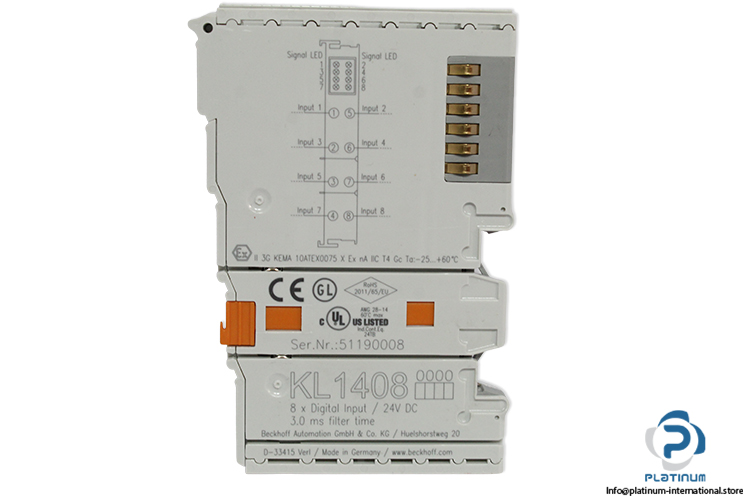

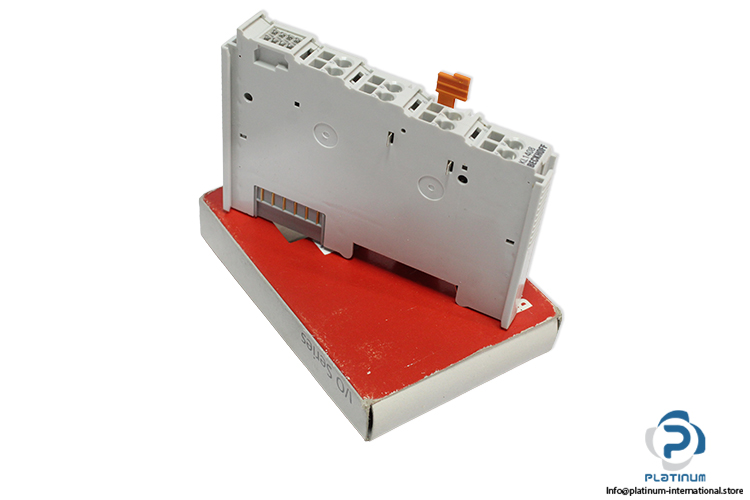

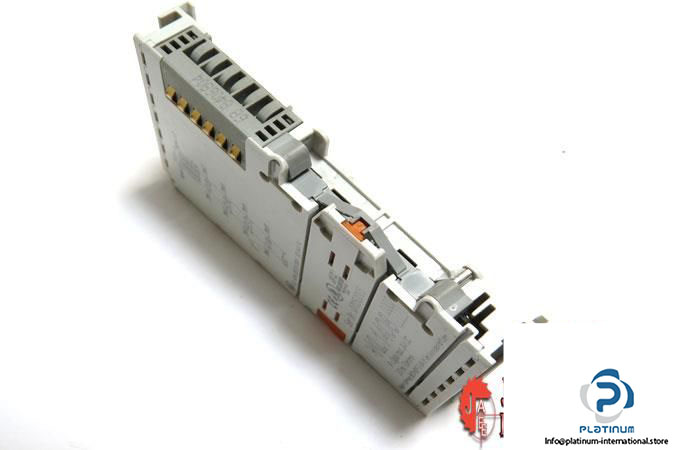

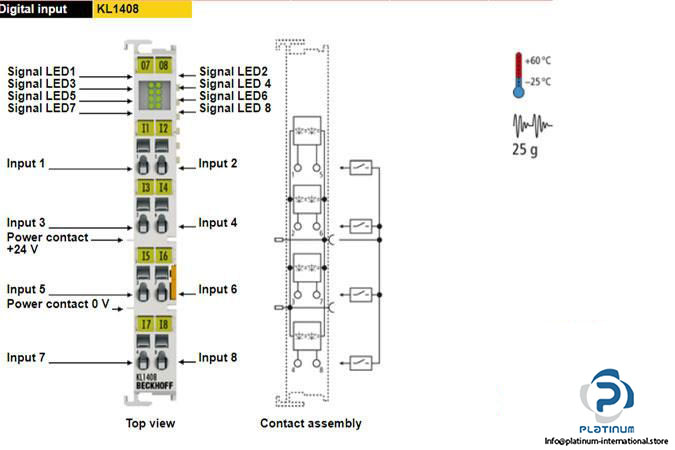

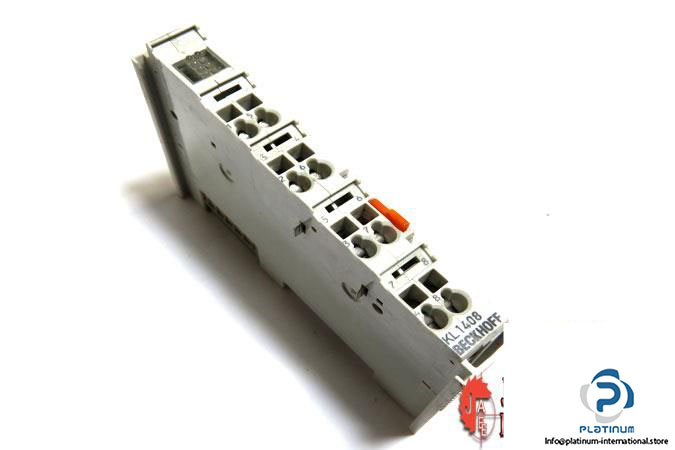

Beckhoff KL1408 Digital Input Terminal
The Beckhoff KL1408 is an industrial-grade 8-channel digital input terminal designed for reliable signal acquisition in automation and control systems. It offers robust electrical isolation, EMC compliance, and flexible installation, making it suitable for harsh industrial and hazardous environments. Manufacturer: Beckhoff
Type: 8-Channel Digital Input Terminal
Model: KL1408

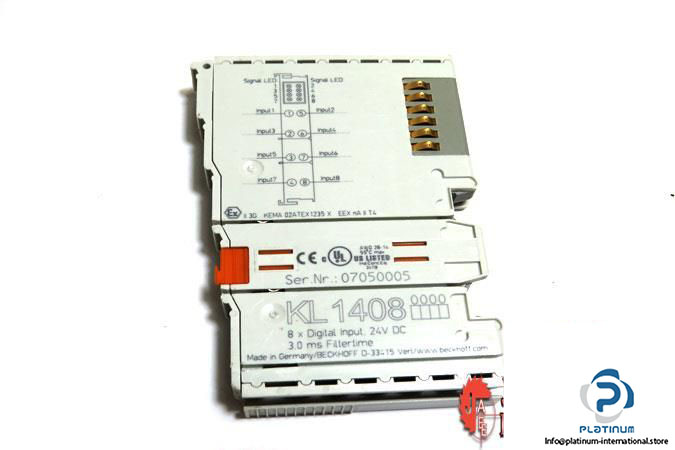

Serial No.: 07050005
| Nominal Voltage | 24 V DC |
| Ripple | -15 % / -20 % |
| Number of Inputs | 8 |
| Electrical Isolation | 500 V |
| Operating Temperature | -25°C to +60°C |
| Pluggable Wiring | For all KSxxxx bus terminals |
| Filter Time | 3 ms |
| Current Consumption (K-bus) | Typical 5 mA |
| EMC Resistance / Emission | EN 61000-6-2 / EN 61000-6-4 |
| Mounting Position / Protection Class | Any / IP20 |
| Approvals | CE, cULus, ATEX, GL |
| Explosion Proof | Yes |
| Dimensions (W x H x D) | 15 mm x 100 mm x 70 mm |
