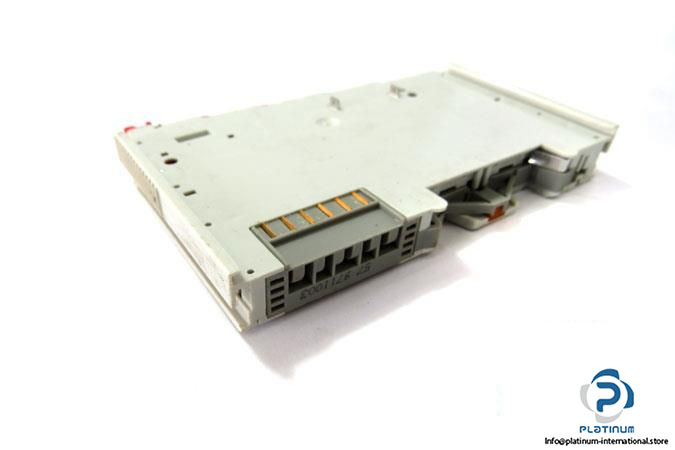

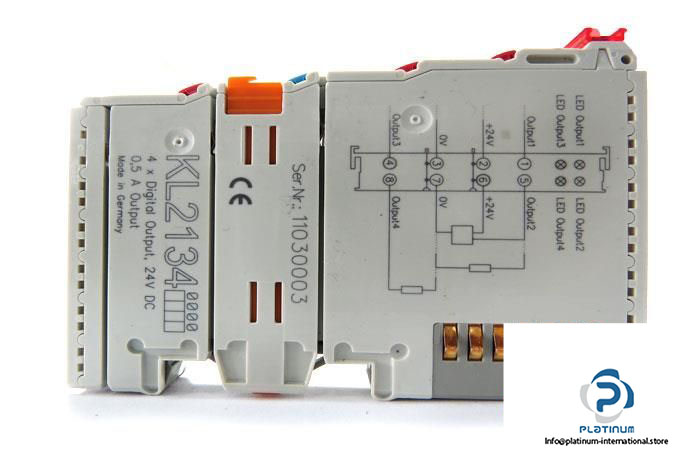

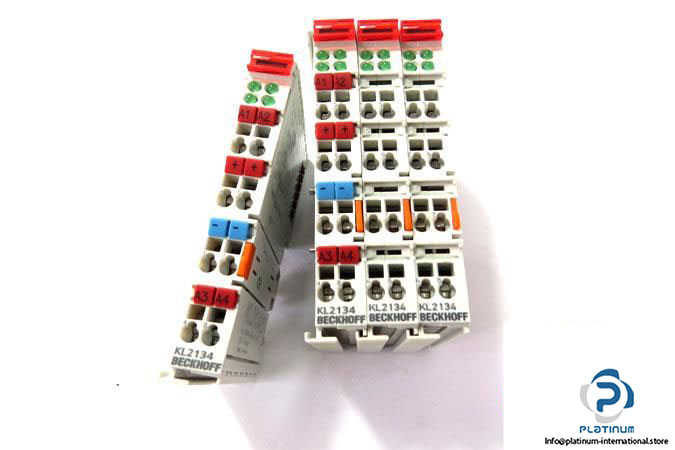

Beckhoff KL 2134 4-CHANNEL Digital Output Terminal

Manufacturer: BECKHOFF

Type:  4-channel digital output terminal

Model: KL2134

No. of outputs: 4

Rated load voltage: 24v DC (-15%…20% ripple)

Current consumption: typ. 30 mA + load power contact, typ. 9 mA K-bus.

Load type: ohmic, inductive, lamp load

Output current: 0.5 A (short- circuit-proof)

Short circuit current: < 2A
Isolation: 500 V

Operating temp: -25…60°C

Weight: approx. 70 g

Condition: Used
