Beckhoff KL1501 BUS Terminal
New
In stock1 unitReady to ship

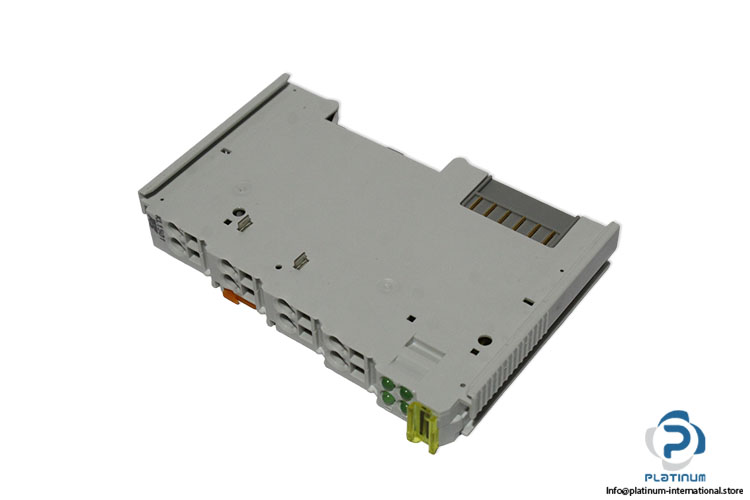

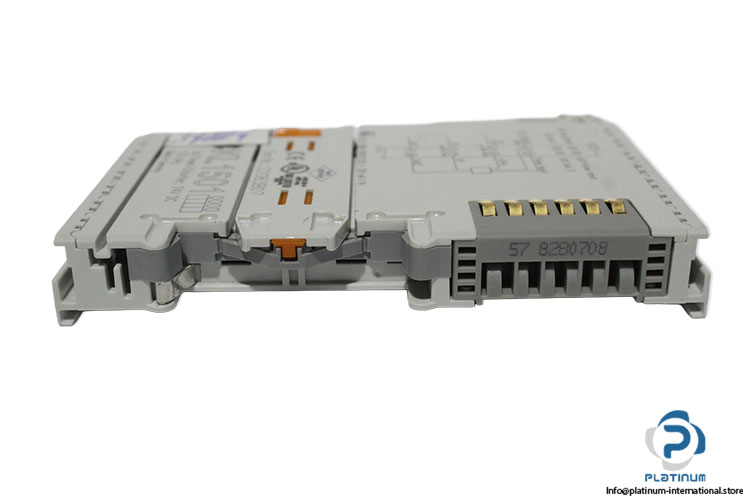

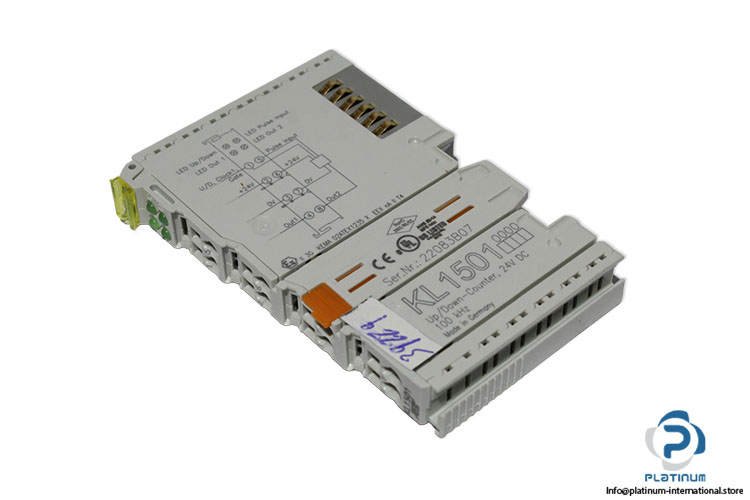

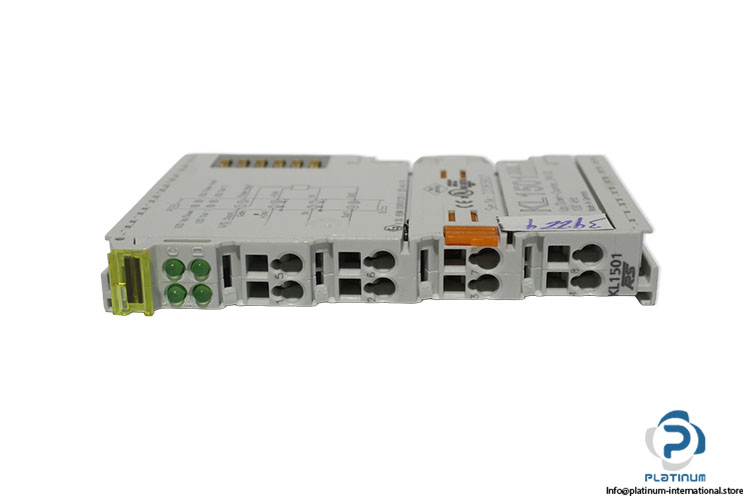

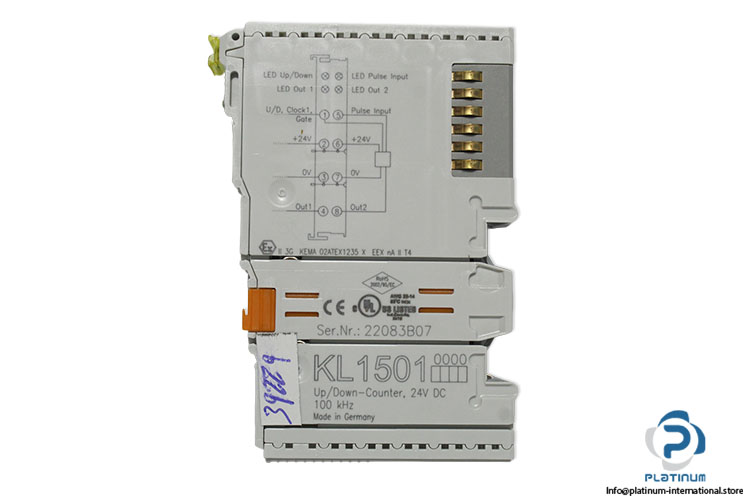

Bus Terminal The BECKHOFF KL1501 is a 24 V DC high-speed counter Bus Terminal with up to 100 kHz counting frequency, designed for reliable signal processing in industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ser.Nr . | 22083B07 |
| Connection technology | 1 x up/down counter, 2 x up or down counter |
| Specification | EN 61131-2, type 1, “0”: < 5 V DC, “1”: > 15 V DC, typ. 5 mA |
| Number of counters | 1 or 2 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Signal voltage “0” | -3…+5 V (EN 61131-2, type 1) |
| Signal voltage “1” | 15…30 V (EN 61131-2, type 1) |
| Counting frequency | max. 100 kHz (2 kHz for switching up/down) |
| Counter depth | 32 bit |
| Input current | typ. 5 mA (EN 61131-2, type 1) |
| Max. output current | 24 V/0.5 A (short-circuit proof) per channel |
| Current consumption K-bus | typ. 50 mA |
| Current consumption power contacts | load only |
| Electrical isolation | 500 V (K-bus/field potential) |
| Bit width in the process image | 40 inputs/outputs: 32 bit data, 8 bit control/status |
| Configuration | no address setting, configuration via Bus Coupler or controller |
| Special features | set counters, switch outputs |
| Operating temperature | -25…+60°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring level | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, cFMus |
| Ex marking ATEX | II 3G Ex ec IIC T4 Gc/IECEx:Ex ec IIC T4 Gc |
| cFMus | Class I, Division 2, Groups A, B, C, D |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100788 |
| Weight | 0,05 |
